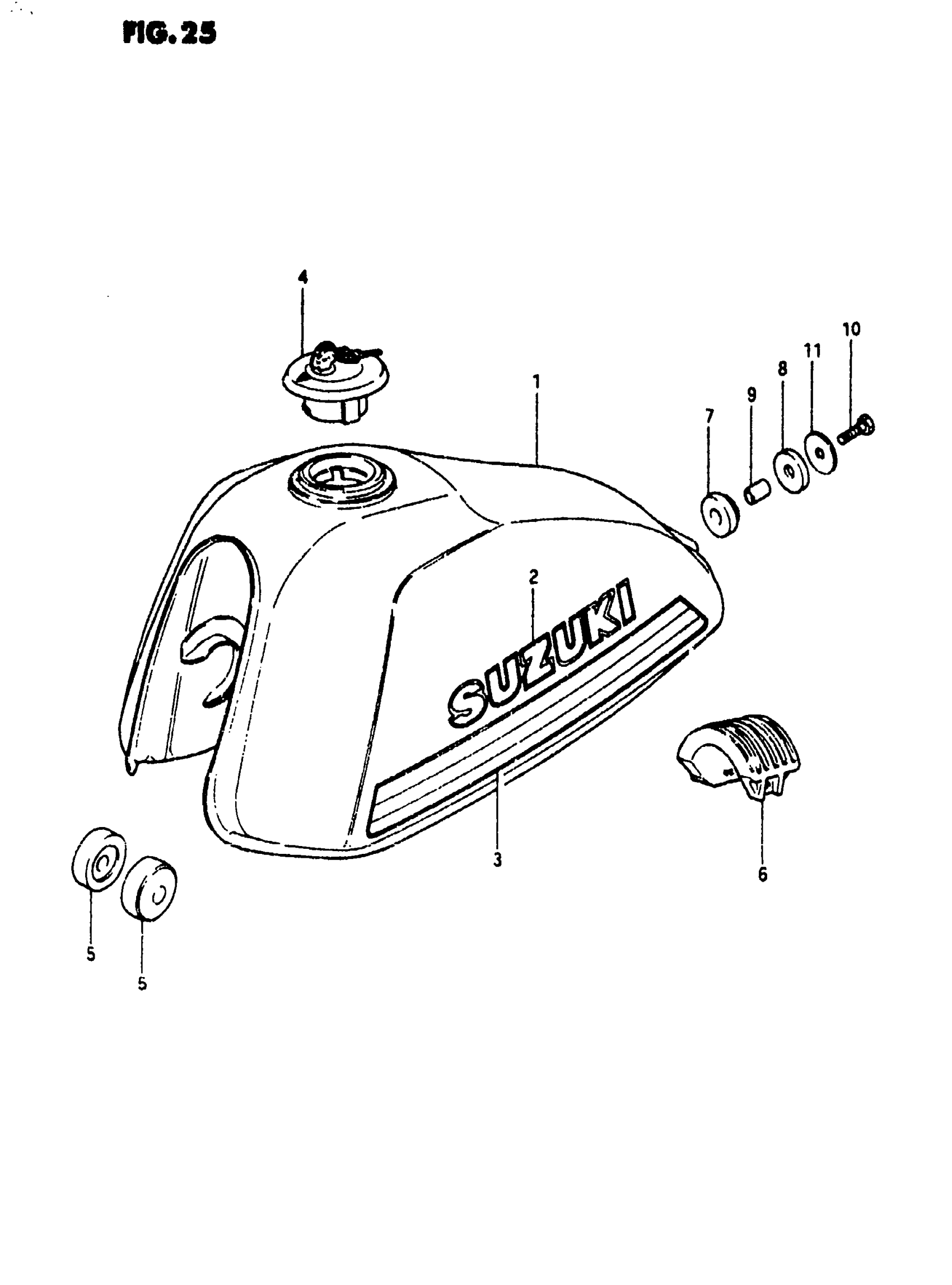

Suzuki TS185 (1981) FUEL TANK (TS185X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 44100-48570-08Y.

44110-48502-YD8

Unavailable

2

EMBLEM (WHITE)

68111-37200-064

Unavailable

3

TAPE SET

68110-48540-75J

Unavailable

4

CAP SET,FUEL TA This part replaces 44200-30702.

44200-30832

$94.67

5

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

6

CUSHION FUEL TA This part replaces 44541-48500.

44541-48502

$9.17

7

CUSHION, REAR NO. 1

09320-12013

$2.60

8

CUSHION, REAR NO. 2

09320-12017

$2.18

9

SPACER (8.8x12x19)

09180-08067

$2.41

10

BOLT This part replaces 01107-08308.

01500-08307

$3.04

11

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35
