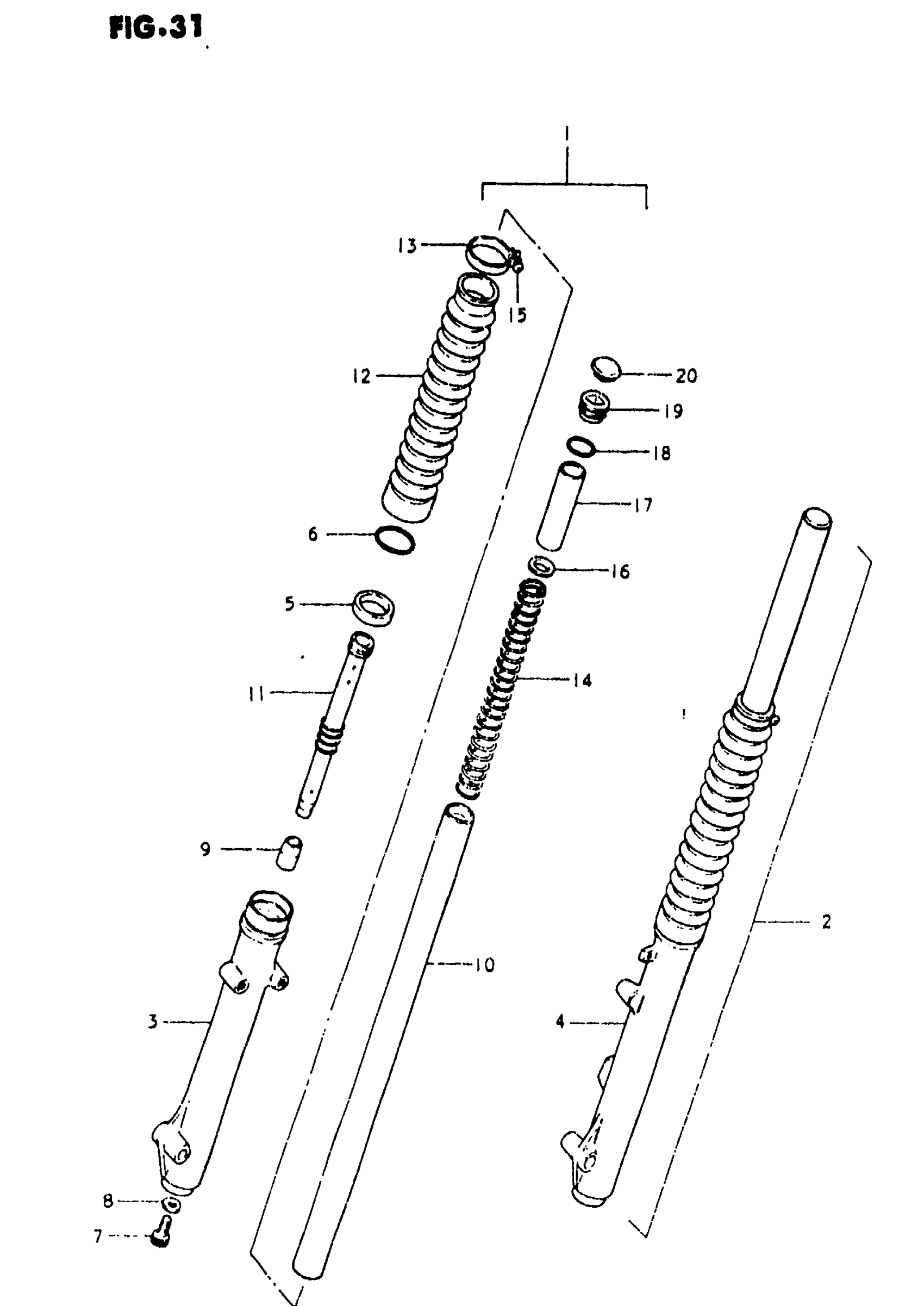

Suzuki TS185 (1981) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-29920

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 20

51104-29920

Unavailable

3

OUTER TUBE, RH

51130-29920

Unavailable

4

OUTER TUBE, LH

51140-29920

Unavailable

5

OIL SEAL

51153-29420

$14.77

6

SNAP RING

51156-29420

Unavailable

7

BOLT

51147-16510

$4.34

8

GASKET

51148-41310

$2.26

9

PIECE, OIL LOCK

51195-36220

Unavailable

10

INNER TUBE

51110-29420

Unavailable

11

CYLINDER

51146-29900

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 51571-29420.

51571-29420-019

Unavailable

13

BAND

51575-29420

Unavailable

14

SPRING

51171-29420

Unavailable

15

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

16

GUIDE, SPRING

51172-18630

Unavailable

17

SPACER

51176-29010

Unavailable

18

O RING This part replaces 51181-25010.

51181-29401

$3.37

19

CAP

51351-29320

Unavailable

20

CAP This part replaces 51189-29330.

51189-29400

$10.22
