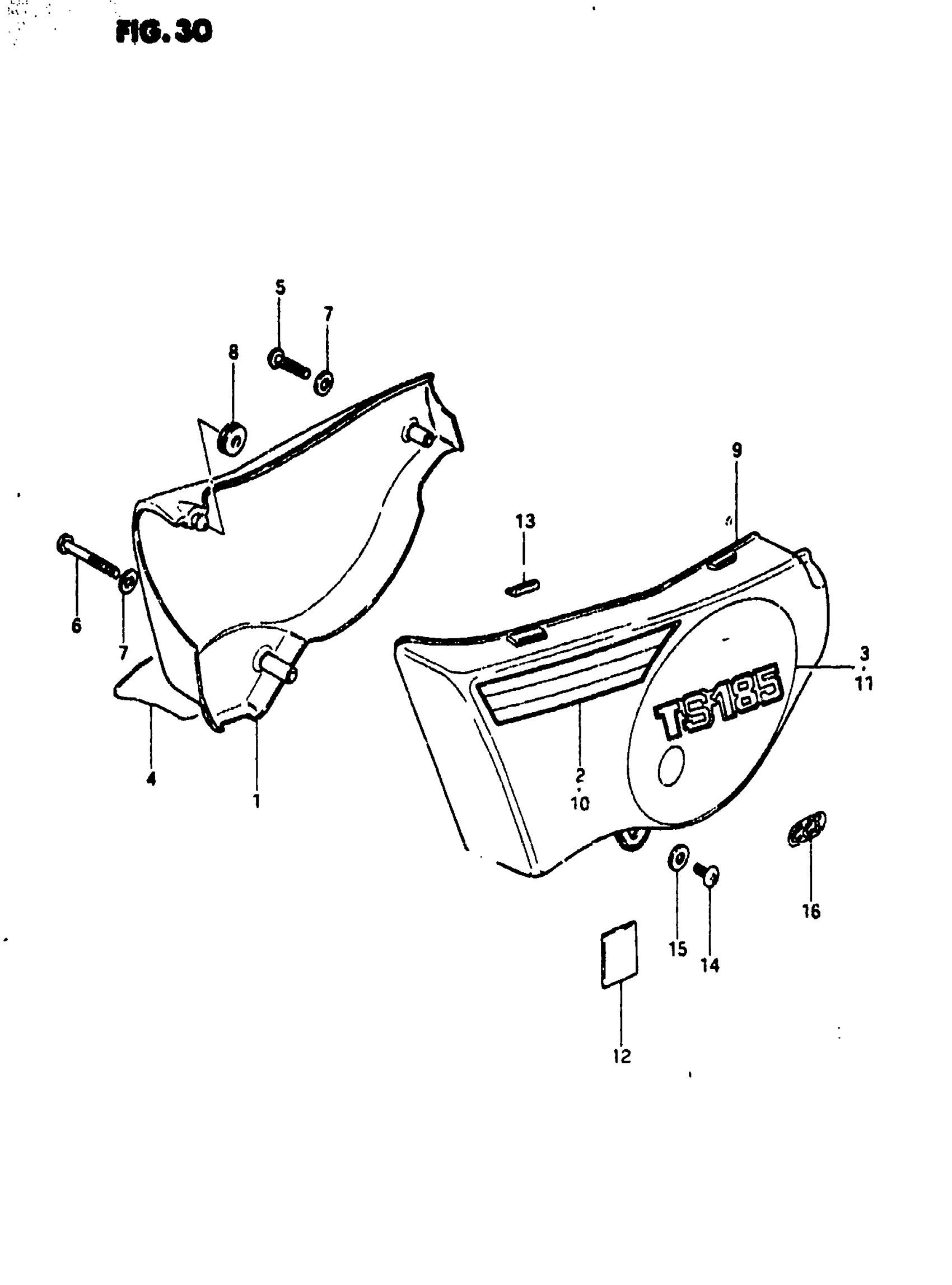

Suzuki TS185 (1981) FRAME COVER (TS185X) Diagram

#

Description
Price

1

COVER,FRAME,R This part replaces 47111-29901-08Y.

47111-29902

Unavailable

2

TAPE, RH

68136-29920-75J

Unavailable

3

EMBLEM, "TS185"

68131-29960-75H

Unavailable

4

EMBLEM, NO.2 RH

68131-29910

Unavailable

5

SCREW This part replaces 02142-06308.

02142-06307

$1.57

6

SCREW This part replaces 02142-06458.

02142-06457

$2.72

7

WASHER This part replaces 09160-06007.

09160-06084

$1.78

8

CUSHION

09320-08018

$3.04

9

COVER,FRAME,L This part replaces 47211-29900-08Y.

47211-29900

Unavailable

10

TAPE, LH

68146-29920-75J

Unavailable

11

EMBLEM, "TS185"

68141-29960-75H

Unavailable

12

CUSHION

33651-37000

$4.48

13

CUSHION

47117-45000

$2.14

14

SCREW

02142-06127

$1.49

15

WASHER This part replaces 09160-06007.

09160-06084

$1.78

16

EMBLEM CCI

68171-26000

$3.59
