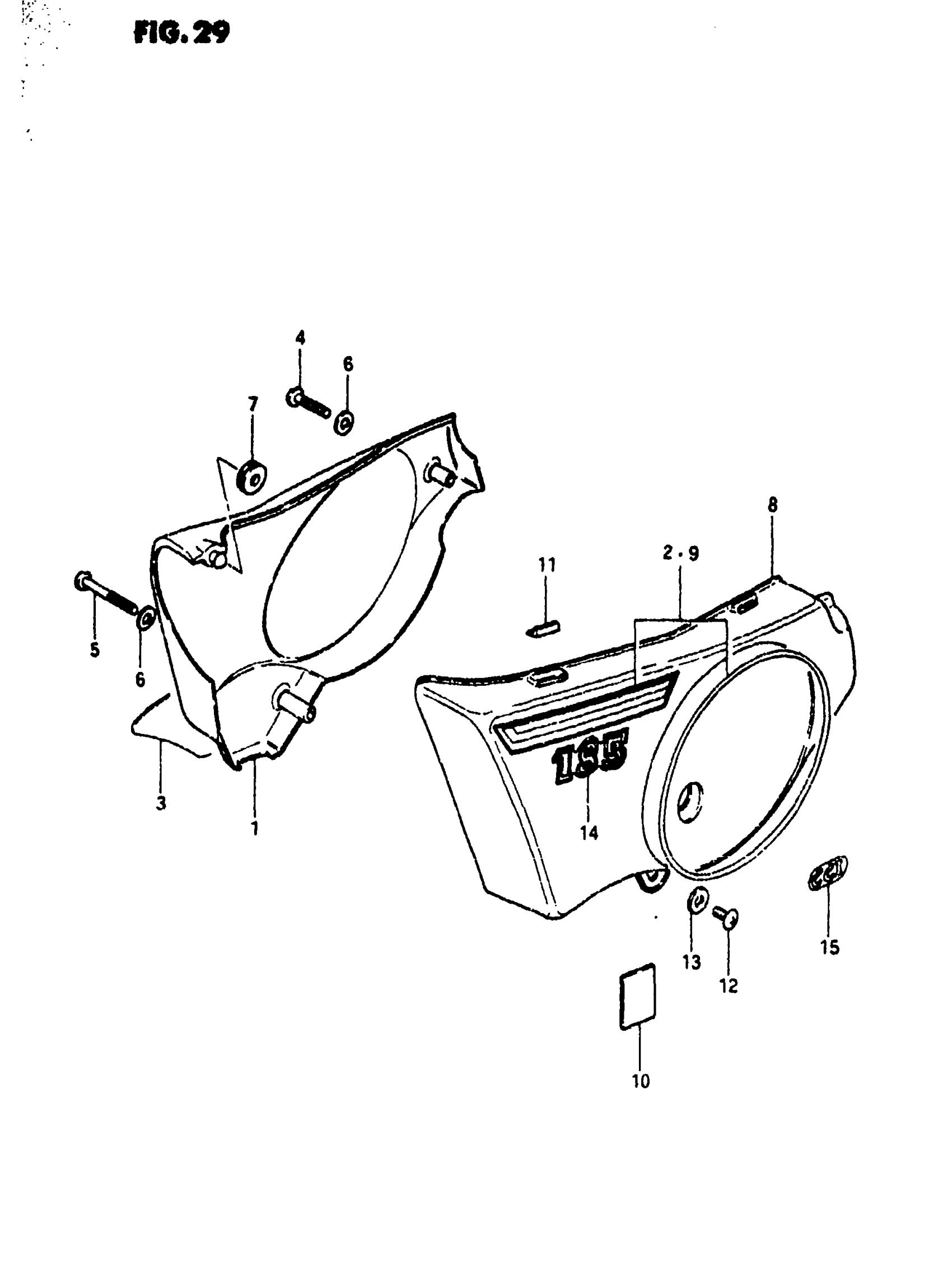

Suzuki TS185 (1981) FRAME COVER (TS185T) Diagram

#

Description
Price

1

COVER,FRAME,R This part replaces 47111-29901-08Y.

47111-29902

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 68130-29910-71S.

68130-48511-71S

Unavailable

3

TAPE NO.2, RH

68131-29910

Unavailable

4

SCREW This part replaces 02142-06308.

02142-06307

$1.57

5

SCREW This part replaces 02142-06458.

02142-06457

$2.72

6

WASHER This part replaces 09160-06007.

09160-06084

$1.78

7

CUSHION

09320-08018

$3.04

8

COVER,FRAME,L This part replaces 47211-29900-08Y.

47211-29900

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 68140-29910-71S.

68140-48511-71S

Unavailable

10

CUSHION

33651-37000

$4.48

11

CUSHION

47117-45000

$2.14

12

SCREW

02142-06127

$1.49

13

WASHER This part replaces 09160-06007.

09160-06084

$1.78

14

EMBLEM "185" (BLACK)

68131-29920-019

Unavailable

15

EMBLEM CCI

68171-26000

$3.59
