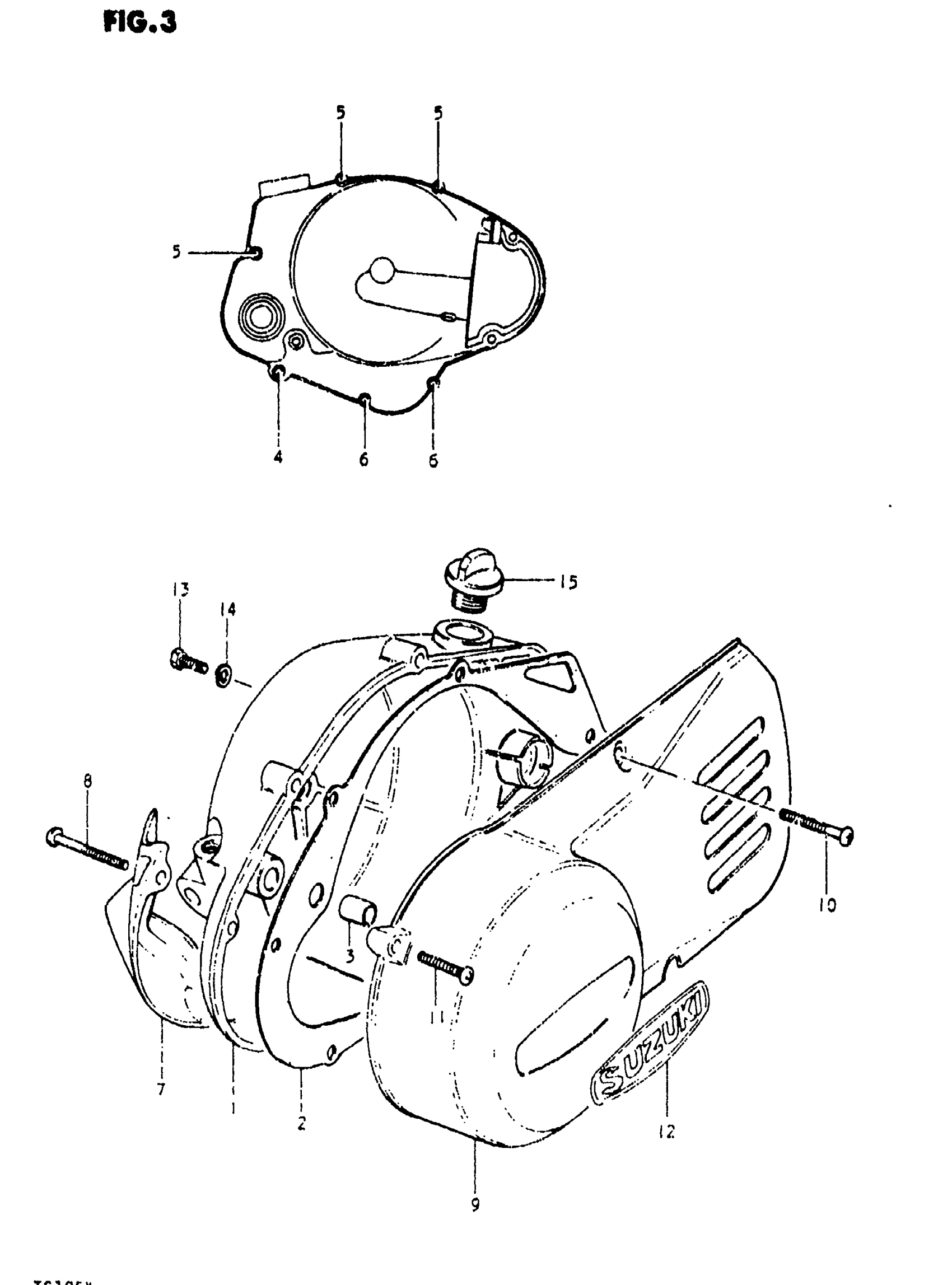

Suzuki TS185 (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH This part replaces 11341-29301.

11341-29900

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-29300.

11482-29310

$12.38

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

6

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

7

COVER,CLUTCH RE This part replaces 11451-29301.

11451-29900

$50.10

8

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

9

COVER, MAGNETO

11351-29301

$198.45

10

SCREW This part replaces 02112-06308.

02112-06307

$1.97

11

SCREW This part replaces 02112-06258.

02112-06257

$1.78

12

EMBLEM

68233-28000

$9.75

13

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

14

GASKET

09168-06001

$1.49

15

PLUG This part replaces 09259-19001.

09259-19005

$2.98
