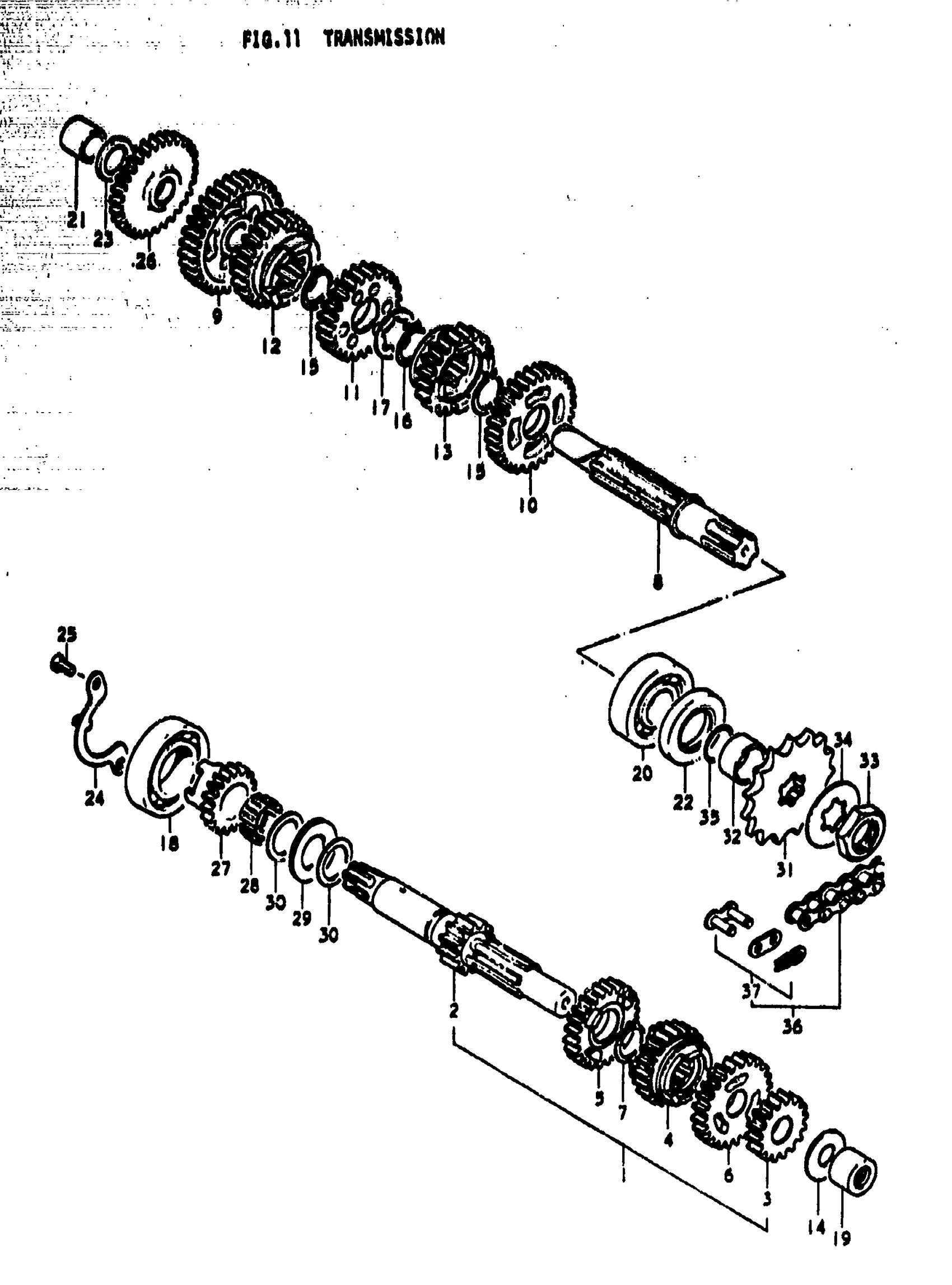

Suzuki TS185 (1979) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 7

24120-29007

Unavailable

2

NO DESCRIPTION AVAILABLE | NT:12 This part replaces 24121-29003.

24121-29004

Unavailable

3

GEAR, 2ND DRIVE | NT:16

24221-28001

Unavailable

4

GEAR, 3RD DRIVE | NT:20

24231-28003

Unavailable

5

NO DESCRIPTION AVAILABLE | NT:23 This part replaces 24241-28000.

24241-28001

Unavailable

6

GEAR, 5TH DRIVE | NT:25

24250-28000

Unavailable

7

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

8

DRIVESHAFT

24131-28001

Unavailable

9

GEAR, 1ST DRIVEN | NT:33

24310-28000

Unavailable

10

GEAR, 2ND DRIVEN | B; NT:29 This part replaces 24321-28000.

24321-28001

$85.15

10

GEAR, 2ND DRIVEN | C,N; NT:29

24321-28001

$85.15

11

NO DESCRIPTION AVAILABLE | NT:25 This part replaces 24331-28001.

24331-28002

Unavailable

12

NO DESCRIPTION AVAILABLE | NT:23 This part replaces 24341-28002.

24341-28003

Unavailable

13

NO DESCRIPTION AVAILABLE | NT:20 This part replaces 24351-28001.

24351-28002

Unavailable

14

WASHER | 15x20

08211-15301

$2.45

15

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

16

CIRCLIP

09380-20006

$2.90

17

LOCK WASHER, LH | 16.2x28x1 This part replaces 09167-20007.

09167-20022

Unavailable

18

BALL BEARING This part replaces 08110-60060.

08113-60060

$24.18

19

BEARING, LH

09263-15009

$13.17

20

BEARING, COUNTER SHAFT This part replaces 09262-20009.

09262-20073

$23.28

21

BUSHING, DRIVESHAFT

09303-15004

$5.07

22

SEAL,OIL,25X44X | 25x44x7 This part replaces 09283-25009.

09283-25107

$6.02

23

THRUST WASHER | 15x30x1

08211-15301

$2.45

24

HOLDER, COUNTERSHAFT BEARING

24741-28001

Unavailable

25

SCREW This part replaces 02112-06128.

02112-06127

$1.84

26

NO DESCRIPTION AVAILABLE | NT:29 This part replaces 26260-28002.

26260-28003

Unavailable

27

GEAR, KICK STARTER DRIVEN | NT:18

26281-36200

$71.33

28

BEARING

09263-19006

$27.08

29

BEARING | 21x32x2.8

09263-21006

$15.48

30

WASHER | 21x30x0.8

09160-21007

$2.92

31

SPROCKET,ENGINE | NT:12 This part replaces 27511-29000.

27511-29002

$29.88

32

SPACER | 20x25x12.5

09180-20039

$7.31

33

NUT

09140-20001

$3.37

34

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

35

O RING

09280-20001

$1.65

36

CHAIN,DRIVE ASS | #520x102L; Includes Item(s) 37 This part replaces 27600-36600.

27600-46K00-116

$167.95

37

JOINT This part replaces 27620-29310.

27620-29311

Unavailable
