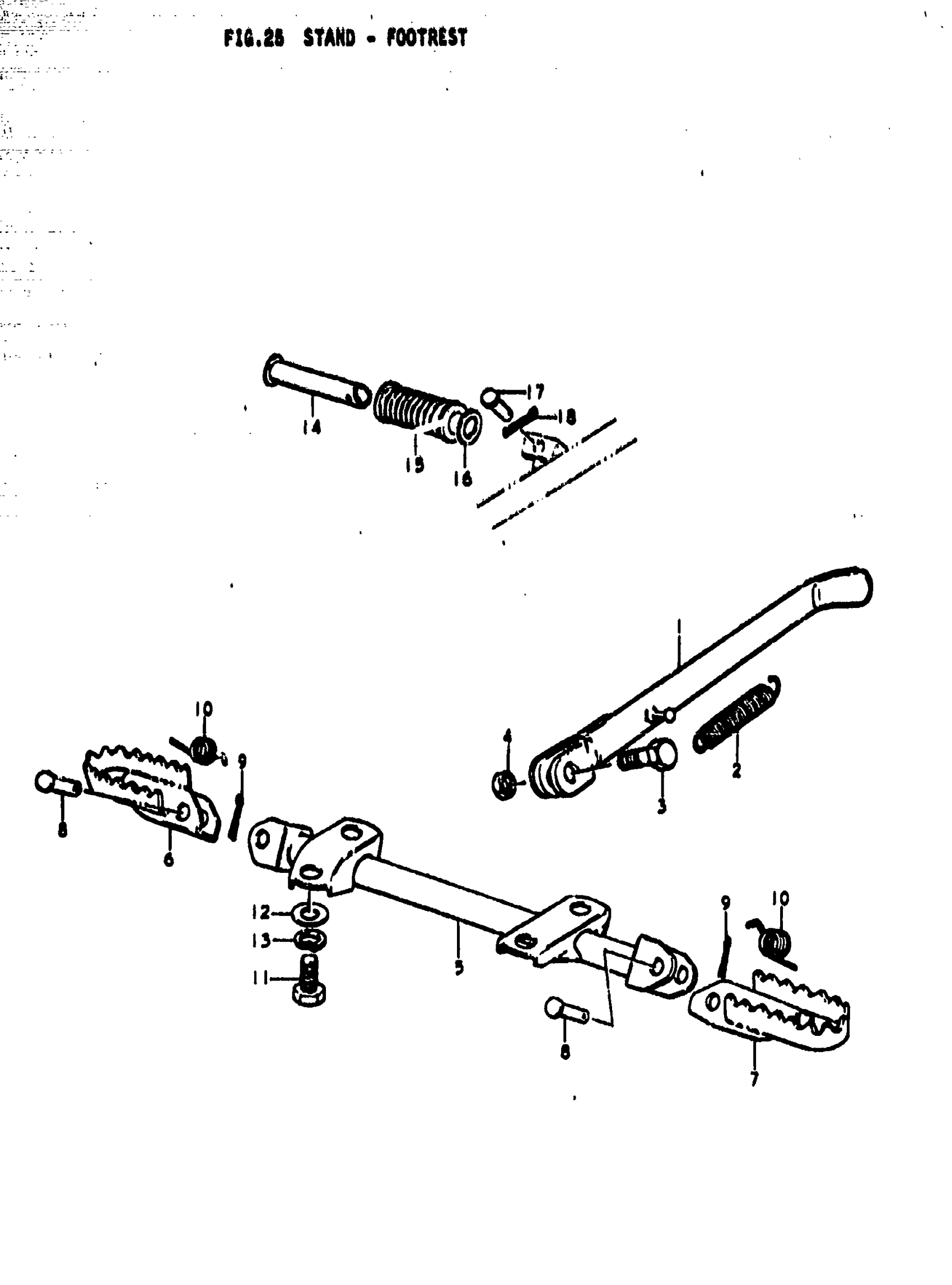

Suzuki TS185 (1979) STAND - FOOTREST Diagram

#

Description
Price

1

STAND,PROP This part replaces 42310-30500.

42310-05280-019

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT | 10x30

09100-10067

$2.61

5

NUT | 10x30 This part replaces 08310-22108.

08310-00107

$2.19

5

BAR, FRONT FOOTREST | FIT HOLE 11.

43510-29300

Unavailable

5

BAR, FRONT FOOTREST | FIT HOLE 90.

43510-29303

Unavailable

6

FOOTREST, RH

43550-29300

$22.22

5

BAR, FRONT FOOTREST | FIT HOLE 11.

43560-29300

$19.25

8

PIN

09200-10008

$2.62

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

10

SPRING

09448-15004

$2.34

11

BOLT | B This part replaces 01107-10208.

01500-1020B

$3.16

11

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

12

WASHER | B This part replaces 08322-11108.

08322-01107

$2.15

12

WASHER This part replaces 08322-11088.

08322-01087

$2.13

13

LOCK WASHER | B This part replaces 08321-31108.

08321-01107

$1.84

13

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

14

BAR, PILLION FOOTREST

43610-03001

$6.52

15

RUBBER

43612-03001

$5.15

16

WASHER | 19.5x32x2 This part replaces 09160-19006.

09160-19024

$2.65

17

PIN

09200-06010

$1.72

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
