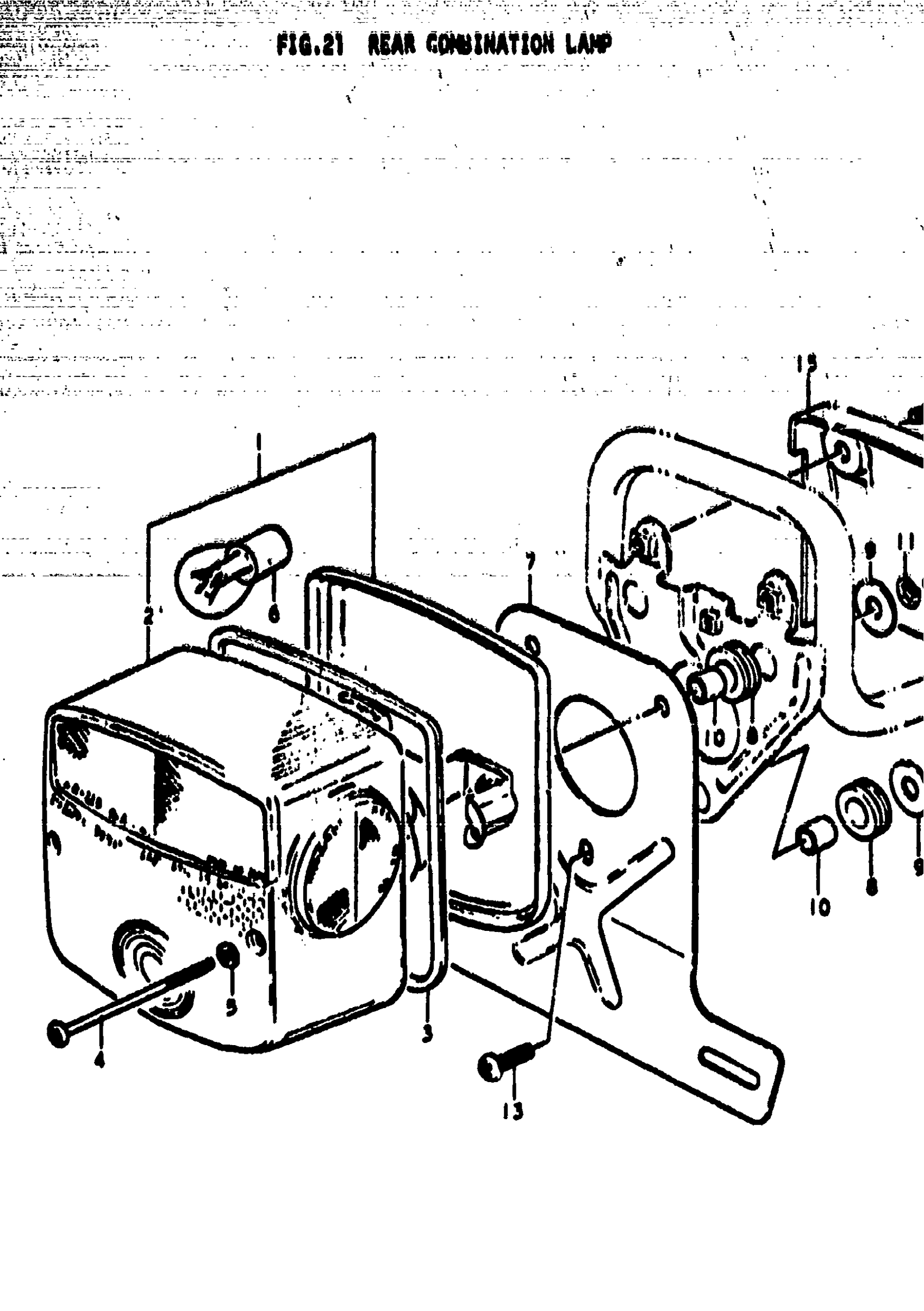

Suzuki TS185 (1979) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | B,C This part replaces 35710-30511.

35710-30512

Unavailable

1

LAMP ASSY, REAR COMBINATION | N; Includes Item(s) 2 - 6

35710-30512

Unavailable

2

LENS | B,C This part replaces 35712-30510.

35712-30512

Unavailable

2

LENS | N This part replaces 35712-30511.

35712-30512

Unavailable

3

GASKET

35713-30510

Unavailable

4

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

5

GASKET

35627-43010

$2.28

6

BULB | 6V, 32/3CP

09471-06030

Unavailable

7

NO DESCRIPTION AVAILABLE | B This part replaces 35927-30500.

35927-30504

Unavailable

7

NO DESCRIPTION AVAILABLE | C,N This part replaces 35927-30503.

35927-30504

Unavailable

8

CUSHION

09320-09002

$1.98

9

WASHER, FRONT | 6.5x24x1.6 This part replaces 09160-06004.

09160-06134

$1.91

10

SPACER This part replaces 35766-15010.

35766-37110

$5.28

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

BOLT This part replaces 01107-06208.

01500-06207

$2.28

13

SCREW

02142-06207

$1.49

14

.NUT This part replaces 08310-11068.

08310-00067

$2.13

15

COVER

35791-30501

Unavailable

16

SCREW This part replaces 02142-06125.

02142-0612A

$1.49
