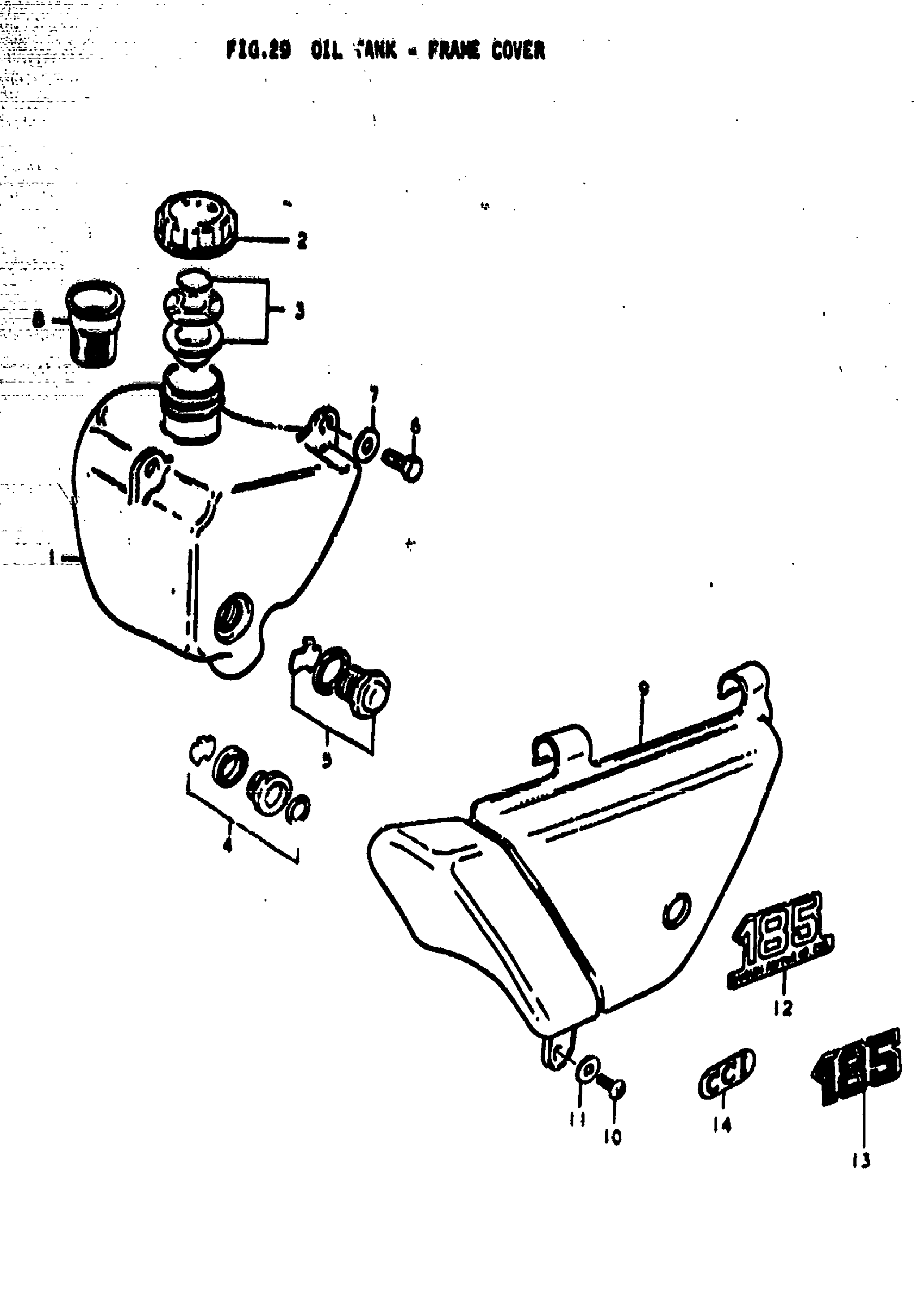

Suzuki TS185 (1979) OIL TANK - FRAME COVER Diagram

#

Description
Price

1

TANK, OIL | B This part replaces 44611-29300.

44611-29301

$69.35

1

TANK, OIL | C,N

44611-29301

$69.35

2

CAP, OIL TANK

44651-05003

$5.05

3

GASKET SET | B This part replaces 44600-30831.

44600-30833

$5.42

3

GASKET SET | C,N This part replaces 44600-30832.

44600-30833

$5.42

4

OIL LEVEL INSPE | B This part replaces 44600-31831.

44600-31832

$11.07

5

OIL LVL INSPECT | C,N This part replaces 44600-46810.

44600-46811

$7.72

6

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

7

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

8

FILTER, OIL TANK INLET | OPT

44665-35000

$7.53

9

NO DESCRIPTION AVAILABLE | B This part replaces 47211-29300-00N.

47211-29310

Unavailable

9

NO DESCRIPTION AVAILABLE | C This part replaces 47211-29310-03K.

47211-29310

Unavailable

9

NO DESCRIPTION AVAILABLE | N This part replaces 47211-29310-03J.

47211-29310

Unavailable

10

SCREW | C,N

02142-06127

$1.49

11

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

12

EMBLEM | B,C

68141-29620

Unavailable

13

EMBLEM | N

68141-29400-538

Unavailable

14

EMBLEM

68171-26000

$3.59
