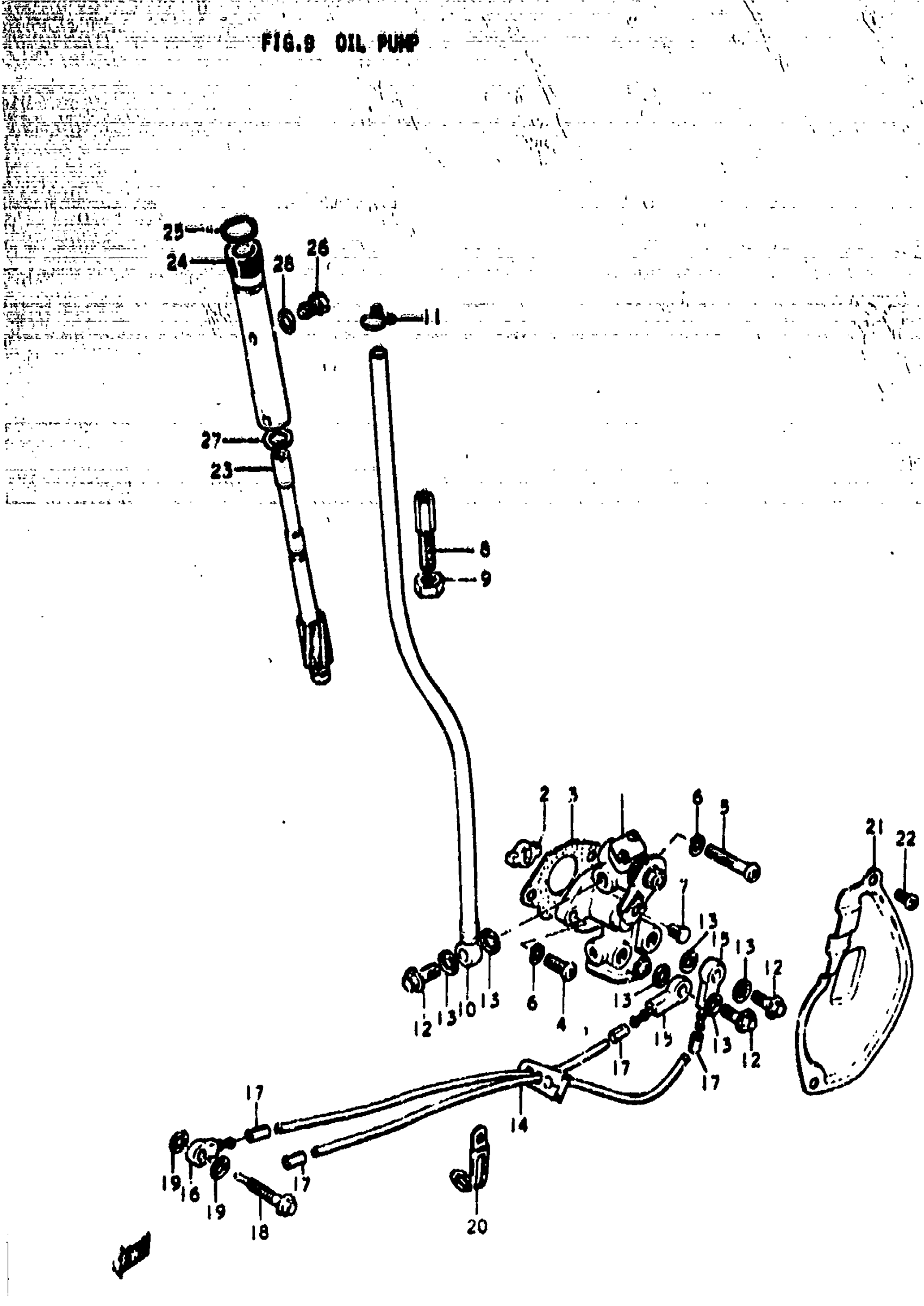

Suzuki TS185 (1979) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL | B This part replaces 16100-29310.

16100-29210

Unavailable

1

PUMP ASSY, OIL | C,N

16100-29210

Unavailable

2

PIECE, DRIVE This part replaces 16391-05030.

16391-05031

$3.65

3

GASKET, OIL PUMP | B,C This part replaces 16731-03100.

16731-03101

$2.81

3

GASKET | N

16731-03101

$2.81

4

SCREW This part replaces 02112-05168.

02112-05167

$1.97

5

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

6

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

7

TERMINAL, CABLE This part replaces 16292-03111.

16292-03112

$5.05

8

ADJUSTER, CABLE

09119-08014

$3.55

9

NUT This part replaces 08310-12088.

08310-00087

$2.13

10

HOSE, OIL (L:512!97) This part replaces 16810-29300.

16810-07520

Unavailable

11

CLAMP

09401-08401

$1.54

12

UNION BOLT | 6x16

09360-06003

$3.76

13

GASKET | 6.5x13x1

09168-06004

$1.49

14

HOSE,OIL NO.2 This part replaces 16820-29300.

16820-29901

$6.83

15

CHECK VALVE

16710-35010

Unavailable

16

UNION This part replaces 09363-02001.

09363-02002

$8.23

17

CLIP

09401-04401

$2.06

18

UNION BOLT, CYLINDER

09360-06009

$6.83

19

GASKET | 6.5x13x1

09168-06004

$1.49

20

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

21

CAP, OIL PUMP INSPECTION

11380-27300

$8.12

22

SCREW This part replaces 02112-06108.

02112-06107

$1.49

23

GEAR, TACHOMETER DRIVEN | B,C; NT:11

26431-29000

$54.75

24

SLEEVE,TACHOMET | B,C This part replaces 26441-28001.

26441-28002

$24.20

25

O RING | B,C

09280-10001

$2.02

26

BOL | B,C

09135-06009

$2.23

27

WASHER | B,C; 8x13.7x1

09160-08003

$2.23

28

WASHER | B,C This part replaces 08322-21068.

08322-01067

$2.13
