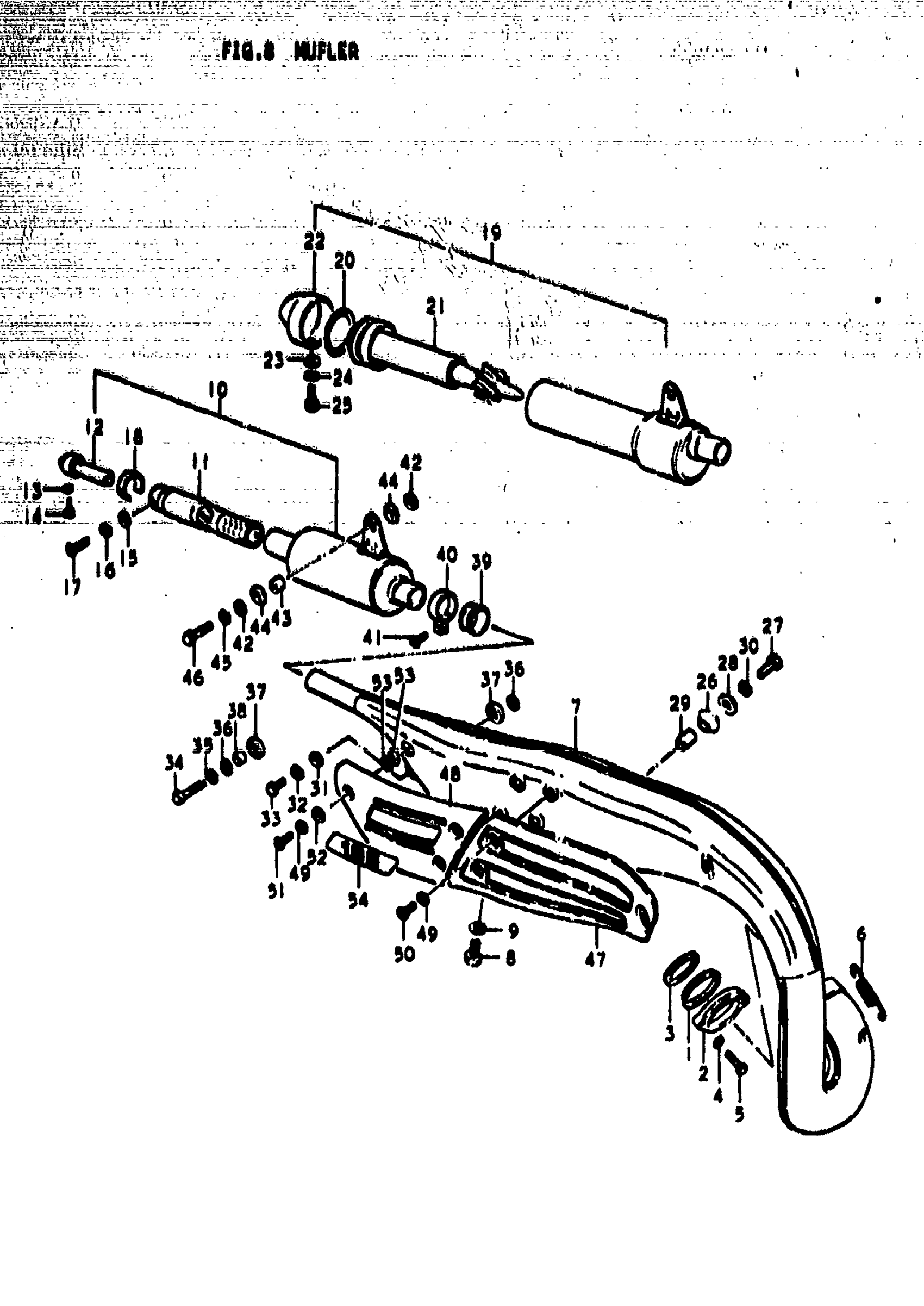

Suzuki TS185 (1979) MUFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PLPO

14181-28080

$10.11

2

CLAMP, EXHAUST PIPE

14182-28000

$16.49

3

CUSHION,EXH PIP This part replaces 14184-28010.

14184-28011

$4.62

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

BOLT This part replaces 01107-06258.

01500-06257

$1.97

6

SPRING

09443-11002

$3.10

7

NO DESCRIPTION AVAILABLE | B; TO 14310-29671 USED WITH REF. NO.2 34~38 This part replaces 14310-29300.

14310-29320-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | B This part replaces 14310-29671.

14310-29320-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | C This part replaces 14310-29310.

14310-29320-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | N This part replaces 14310-29320.

14310-29320-H01

Unavailable

8

BOLT(10X9) | 10x9 This part replaces 09100-10004.

09128-10002

$1.70

9

GASKET | 10x14,2x2

09168-10002

$2.13

10

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 11 - 18 This part replaces 14303-29600.

14303-29600-H01

Unavailable

11

BODY, ARRESTOR | B

14810-38601

Unavailable

12

TUBE, CLEAN OUT | B

14850-38601

Unavailable

13

LOCK WASHER | B This part replaces 08321-21058.

08321-0105A

$1.84

14

SCREW | B This part replaces 02112-05088.

02112-05087

$1.49

15

WASHER | B This part replaces 08322-21068.

08322-01067

$2.13

16

LOCK WASHER | B This part replaces 08321-21068.

08321-01067

$2.13

17

SCREW | B

09128-06013

$1.49

18

BAND, ARRESTOR | B

14843-38600

Unavailable

19

NO DESCRIPTION AVAILABLE | C; TO 14303-29321 USED WITH 09180-08088 This part replaces 14303-29320.

14303-29321-H01

Unavailable

19

NO DESCRIPTION AVAILABLE | N; Includes Item(s) 20 - 25 This part replaces 14303-29321.

14303-29321-H01

Unavailable

20

O RING | C,N

09280-55001

$5.52

21

TUBE, CLEAN OUT | C,N

14850-30510

Unavailable

22

COVER, TAIL | C This part replaces 14649-30510.

14649-30520

Unavailable

22

COVER, TAIL | N This part replaces 14649-30511.

14649-30520

Unavailable

23

WASHER | C,N This part replaces 08322-21068.

08322-01067

$2.13

24

LOCK WASHER | C,N This part replaces 08321-21068.

08321-01067

$2.13

25

BOLT | C,N

09128-06013

$1.49

26

DAMPER,MUFFLER, This part replaces 14772-30500.

14772-30501

$3.03

27

BOLT | B This part replaces 01107-08308.

01500-08307

$3.04

27

BOLT | C,N This part replaces 01107-08358.

01500-0835B

$3.04

28

WASHER (8.5X26X1.6) | B.2x26x1.6 This part replaces 09160-08005.

09160-08134

$2.03

29

SPACER | 8x12x15

09180-08046

Unavailable

30

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

31

WASHER | B This part replaces 08322-21088.

08322-01087

$2.13

32

.LOCK WASHER | B This part replaces 08321-21088.

08321-01087

$2.13

33

PLUG, DRAIN | B This part replaces 01107-08168.

01500-0816B

$2.50

34

BOLT This part replaces 01107-08258.

01500-08257

$2.50

35

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

36

WASHER (8.5X20X1.6) | 8.5x20x1.6 This part replaces 09160-08010.

09160-08054

$1.49

37

CUSHION This part replaces 09320-14006.

14761-03450

$1.80

38

SPACER,8.5X14X9 | 8.6x13.8x9.8 This part replaces 09180-08075.

09180-08200

$2.97

39

CONNECTOR

14771-38000

Unavailable

40

CLAMP

09402-37601

Unavailable

41

SCREW This part replaces 02112-06208.

02112-06207

$1.78

42

WASHER (8.5X26X1.6) | 8.2x26x1.6 This part replaces 09160-08005.

09160-08134

$2.03

43

SPACER, TAIL COVER RR RR | B,C; 8.6x13.8x9 This part replaces 09180-08050.

09180-08199

$2.12

43

SPACER,8.5X14X1 | N; 8.6x13.8x10.6 This part replaces 09180-08083.

09180-08201

$3.05

44

CUSHION This part replaces 09320-14006.

14761-03450

$1.80

45

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

46

BOLT This part replaces 01107-08258.

01500-08257

$2.50

47

COVER, MUFFLER FRONT

14781-29300

Unavailable

48

COVER, MUFFLER REAR | B

14782-29300-00N

Unavailable

48

COVER, MUFFLER REAR | C

14782-29300-03K

Unavailable

48

COVER, MUFFLER REAR | N

14782-29300-03J

Unavailable

49

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

50

SCREW This part replaces 02112-06088.

02112-06087

$1.49

51

SCREW This part replaces 02112-06128.

02112-06127

$1.84

52

WASHER This part replaces 08322-21068.

08322-01067

$2.13

53

GASKET,MUFFLER | 0.2x12x1.5 This part replaces 09168-06005.

09168-06105

$2.12

54

EMBLLM

14799-29300

Unavailable
