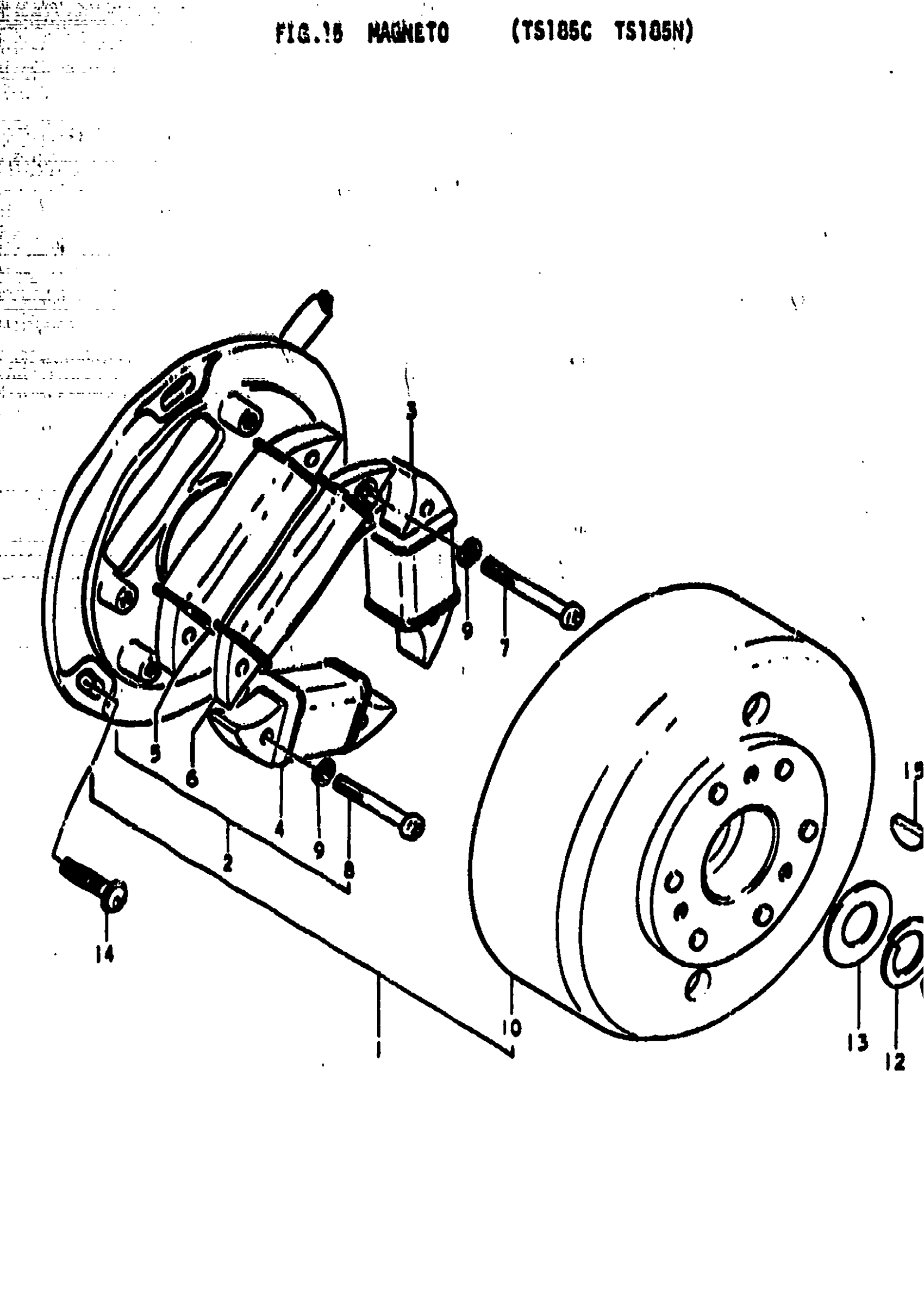

Suzuki TS185 (1979) MAGNETO (TS185C TS185N) Diagram

#

Description
Price

1

STATOR ASSY | B; KOKUSAN This part replaces 32100-30625.

32101-30626

Unavailable

1

STATOR ASSY | C,N; Includes Item(s) 2 - 10 This part replaces 32100-30626.

32101-30626

Unavailable

2

STATOR ASSY | B This part replaces 32101-30624.

32101-30626

Unavailable

2

STATOR ASSY | C,N

32101-30626

Unavailable

3

COIL, LIGHTING

32120-29612

Unavailable

4

COIL, CHARGING | B,C This part replaces 32130-29612.

32130-30620

Unavailable

4

COIL, CHARGING | N

32130-30620

Unavailable

5

COIL, PRIMARY This part replaces 32140-32020.

32140-32021

$152.07

6

COIL, PULSER

32150-32020

$130.87

7

SCREW This part replaces 02111-05357.

02112-05357

$1.49

8

SCREW This part replaces 02112-05208.

02112-05207

$1.97

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

ROTOR This part replaces 32102-30621.

32102-30626

Unavailable

11

NUT

09140-14011

Unavailable

12

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

$2.10

13

WASHER | 14x27x3

09160-14015

Unavailable

14

SCREW

09139-05011

$2.38

15

KEY This part replaces 08341-31049.

09420-04008

$3.42
