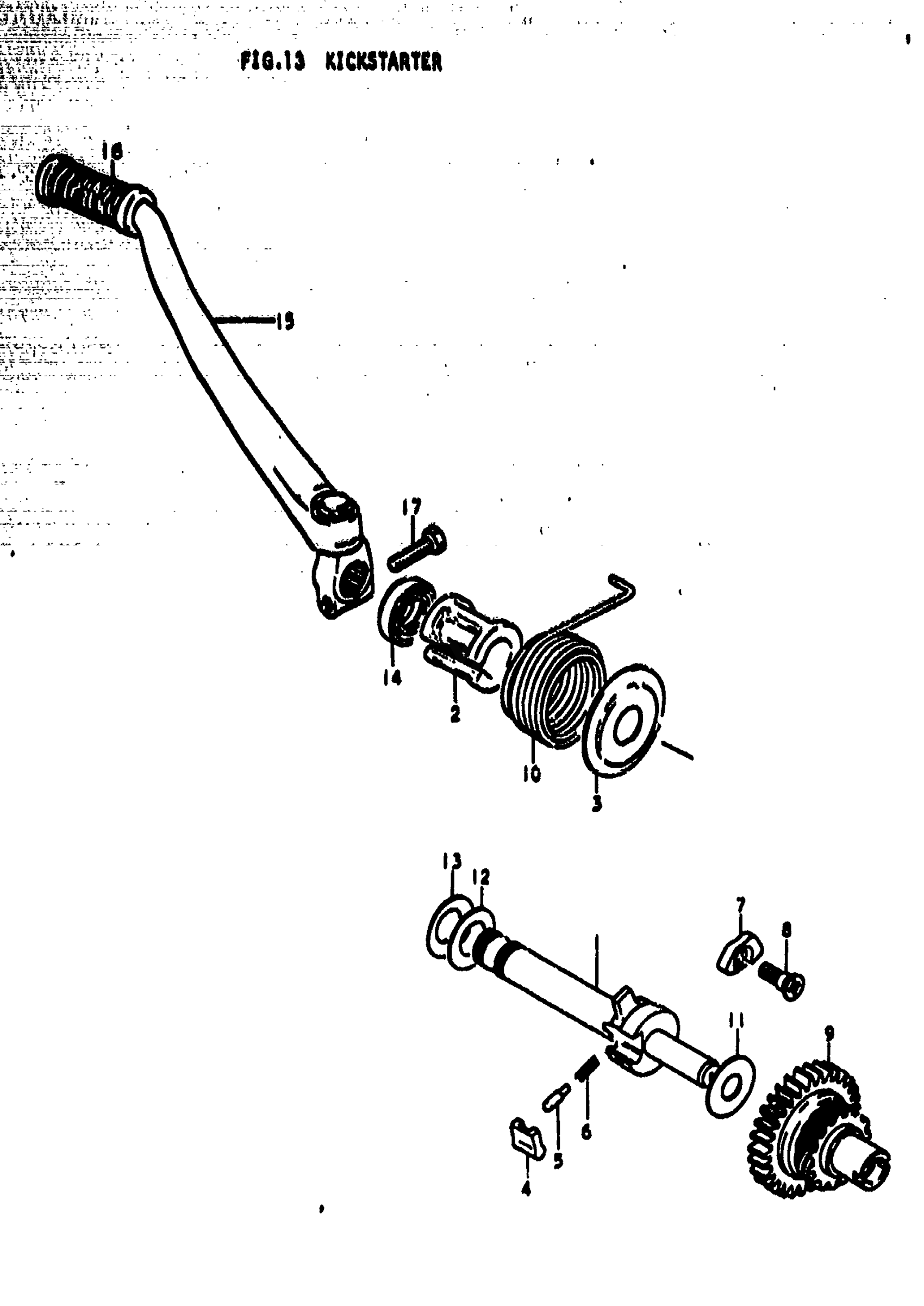

Suzuki TS185 (1979) KICKSTARTER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 26211-28300.

26211-28301

Unavailable

2

GUIDE, SPRING

26221-23030

$10.07

3

HOLDER, SPRING

26222-28300

$6.38

4

PAWL, KICK STARTER

26231-20000

$7.74

5

PIN

09209-05011

$2.20

6

SPRING

09440-04010

$1.54

7

LIFTER, PAWL

26232-01000

$6.38

8

SCREW

09139-06002

$2.38

9

GEAR, KICK STARTER DRIVE | NT:31/15

26240-29300

Unavailable

10

SPRING

09448-45004

$7.31

11

WASHER (12X30X3.0) | 12X30X3

09160-12036

$3.93

12

WASHER | 16x30.5x0.5

09160-16016

$2.04

13

WASHER | 16x30.5x1.5

09164-16001

$2.12

14

SEAL,OIL(16X30X This part replaces 09285-16002.

09285-16005

$2.75

15

LEVER ASSY,KICK | B This part replaces 26300-29301.

26300-29304

$85.78

15

LEVER ASSY,KICK | C,N; Includes Item(s) 16 This part replaces 26300-29302.

26300-29304

$85.78

16

RUBBER,KICK STA This part replaces 26352-16401.

26352-16402

$3.56

17

BOLT This part replaces 01107-08258.

01500-08257

$2.50
