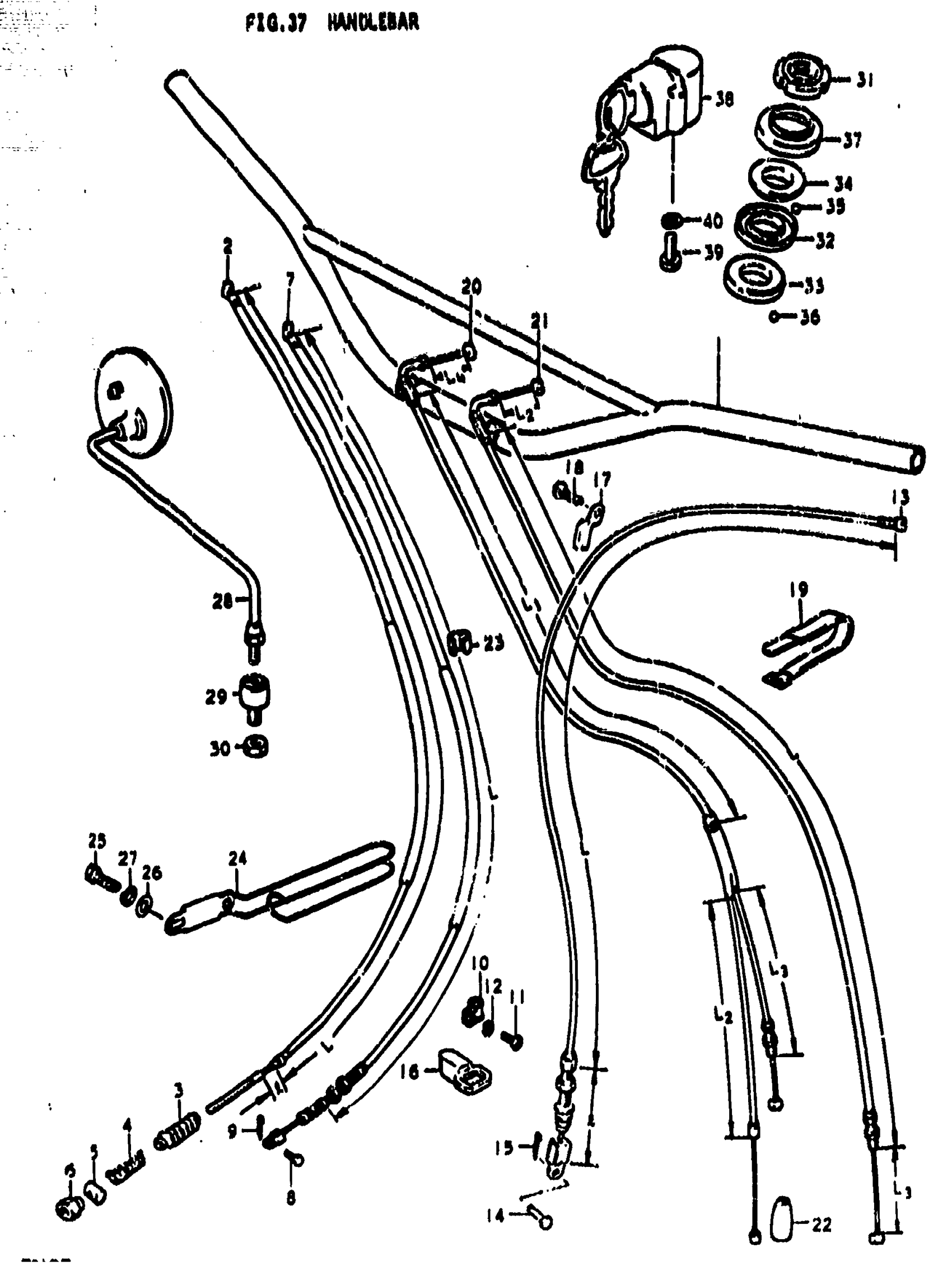

Suzuki TS185 (1979) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | B This part replaces 56110-29300.

56110-29405-08C

Unavailable

1

HANDLEBAR | CN This part replaces 56110-48102.

56110-29405-13L

$251.76

2

CABLE,FR BRAKE | B,C;; Includes Item(s) 3 - 6 This part replaces 58100-28100.

58100-28090

$21.09

3

DUST SEAL | B,C

09287-07001

$2.00

4

SPRING | B,C

09440-06003

$2.44

5

PIN | B,C

09209-10001

$1.49

6

NUT | B,C

09150-05101

$3.04

7

CABLE, FR BRAKE | N; L: 1150 This part replaces 58110-29300.

58110-29303

$40.57

8

PIN | N

09200-06013

$2.00

9

.COTTER PIN | N This part replaces 04111-20158.

04111-2015A

$1.49

10

GUIDE, CABLE | N This part replaces 58621-32400.

58621-40401

Unavailable

11

SCREW | N This part replaces 02112-06108.

02112-06107

$1.49

12

LOCK WASHER | N This part replaces 08321-21068.

08321-01067

$2.13

13

CABLE,CLUTCH | L:970, 1:136 This part replaces 58200-29300.

58200-46090

$14.75

14

PIN

09200-06011

Unavailable

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

16

GUIDE,CLUTCH CA | B,C This part replaces 58621-29300.

58621-29302

$3.55

16

GUIDE,CLUTCH CA | N This part replaces 58621-29301.

58621-29302

$3.55

17

CLAMP, CABLE This part replaces 09403-06302.

09403-06301

Unavailable

18

SCREW This part replaces 02112-06088.

02112-06087

$1.49

19

CLAMP | L: 180 This part replaces 09407-18301.

09407-18302

$2.28

20

CABLE ASSY, THROTTLE NO.1 | B; L1:610, L2: 370 L3:210

58300-29300

Unavailable

20

CABLE,THROTTLE | C,N; L1:610, L2:370,L3:210 This part replaces 58300-29301.

58300-29302

Unavailable

21

CABLE,THROTTLE | N; L:890 This part replaces 58300-29621.

58300-29623

Unavailable

21

CABLE,THROTTLE | C,N; L: 890 This part replaces 58300-29622.

58300-29623

Unavailable

22

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

23

CLIP | L: 10

09408-00002

$2.30

24

GUIDE,CABLE | B This part replaces 58620-30500.

34930-05203

$18.80

24

GUIDE,CABLE | C This part replaces 58620-30501.

34930-05203

$18.80

25

BOLT | B,C This part replaces 01107-08128.

01500-08127

$2.62

26

WASHER | B,C This part replaces 08322-11088.

08322-01087

$2.13

27

.LOCK WASHER | B,C This part replaces 08321-21088.

08321-01087

$2.13

28

MIRROR ASSY,RR This part replaces 56500-31011.

56500-31014

$48.02

28

MIRROR ASSY,RR This part replaces 56600-31011.

56600-31014

$48.02

29

CUSHION, REAR VIEW MIRROR | C,N This part replaces 56700-31001.

56700-45400

$21.90

30

NUT | C,N This part replaces 08310-22108.

08310-00107

$2.19

31

NUT, STEERING STEM

51631-28000

$17.37

32

RACE,STEERING INNER UPPER

51611-20002

$11.95

33

RACE, STEERING INNER LOWER

51611-33002

$13.81

34

RACE,STEERING OUTER UPPER

51621-28000

$11.95

35

STEEL BALL

06111-06003

$1.49

36

STEEL BALL

06111-08003

$1.49

37

DUST SEAL,STEERING UPPER

51643-25001

$4.43

38

LOCK ASSY, STEERING This part replaces 51910-25310.

51910-25311

$40.33

39

SCREW This part replaces 02112-05128.

02112-05127

$1.97

40

LOCK WASHER | B,NC This part replaces 08321-21058.

08321-0105A

$1.84
