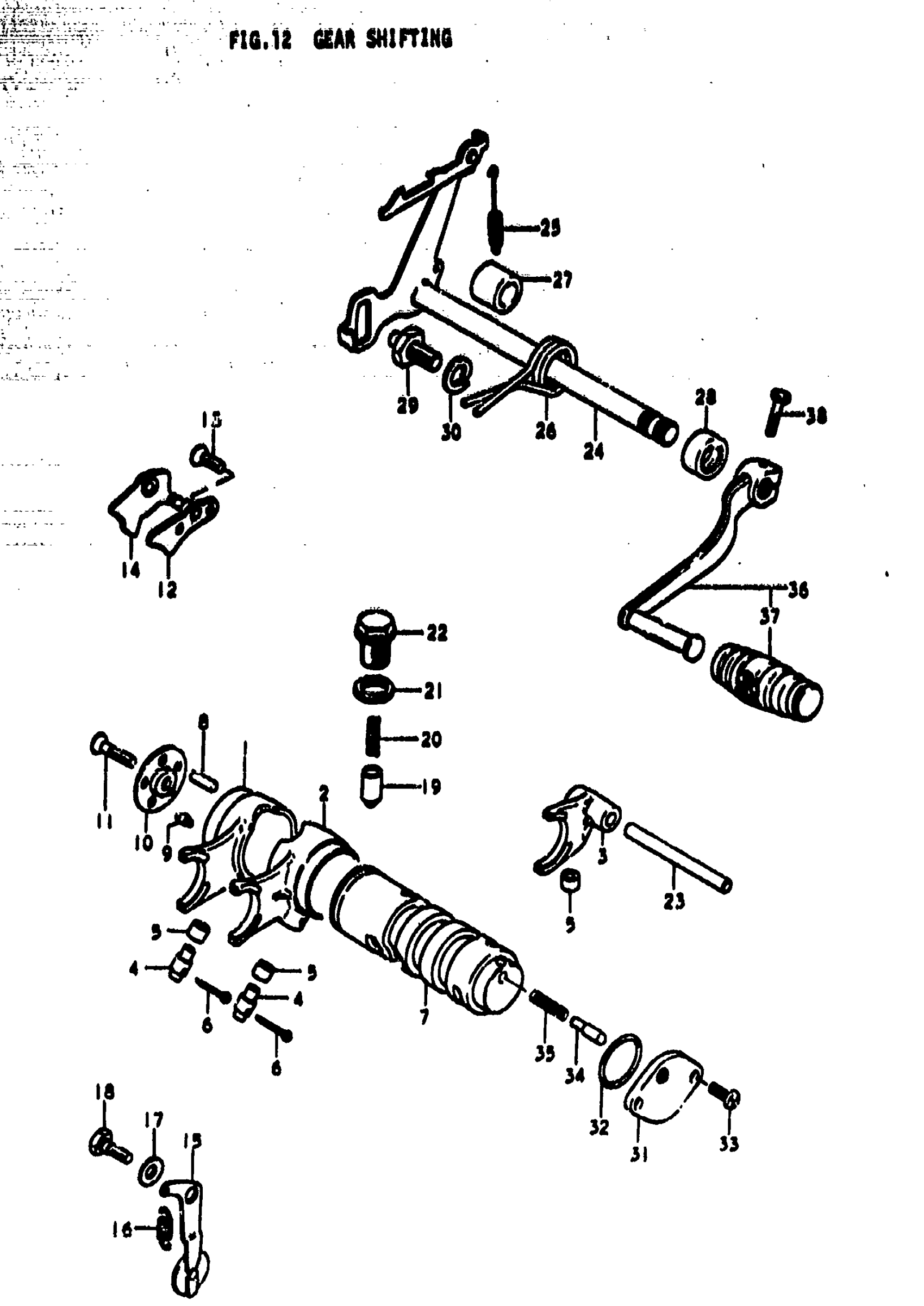

Suzuki TS185 (1979) GEAR SHIFTING Diagram

FORK,GEAR SHIFT This part replaces 25211-28001.

25211-28002

$87.70

FORK,GEAR SHIFT This part replaces 25221-28001.

25221-28002

Unavailable

FORK,GEAR SHIFT This part replaces 25231-28002.

25231-28003

Unavailable

PIN

09209-10002

Unavailable

ROLLER | 6x9.8x6 This part replaces 09180-06004.

09180-06086

$2.50

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

NO DESCRIPTION AVAILABLE This part replaces 25311-29300.

25311-29301

Unavailable

ROLLER (4X13.8)

09261-04002

$1.72

PIN

09209-04012

$2.53

RETAINER, DRIVE PIN

25322-28030

Unavailable

SCREW This part replaces 02122-06208.

02122-0620A

$1.49

GUIDE, CAM

25340-12101

Unavailable

SCREW This part replaces 02122-06168.

02122-06167

$1.49

PAWL, CAM STOPPER

25370-12101

Unavailable

STOPPER, DAM NO.1

25350-28001

Unavailable

SPRING

09443-07014

$2.22

WASHER | 6.5x16x2.3

09160-06022

Unavailable

BOLT

09111-06003

Unavailable

STOPPER, SELECT CAM This part replaces 25351-18000.

25351-39300

$10.23

SPRING

09440-05018

$1.84

GASKET | 15.7x19.5x2

09168-14004

$1.83

HOLDER, STOPPER This part replaces 25352-11000.

25352-11010

$7.22

SHAFT, GEAR SHIFTING

25411-05100

$5.50

SHAFT, GEAR SHIFTING

25510-29300

$91.95

SPRING

09443-06008

Unavailable

SPRING

09444-26008

$5.12

SPACER

09180-12068

$3.16

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

STOPPER, ARM

25671-19000

Unavailable

LOCK WASHER This part replaces 09162-10003.

08321-01107

$1.84

BODY, SWITCH

37720-29350

$15.42

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

SCREW This part replaces 02112-05128.

02112-05127

$1.97

CONTACT, SWITCH

09209-05011

$2.20

SPRING

09440-04010

$1.54

LEVER ASSY. GEAR SHIFTING | Includes Item(s) 37 This part replaces 25600-29300.

25600-29310

$42.95

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

BOLT This part replaces 01107-06208.

01500-06207

$2.28
