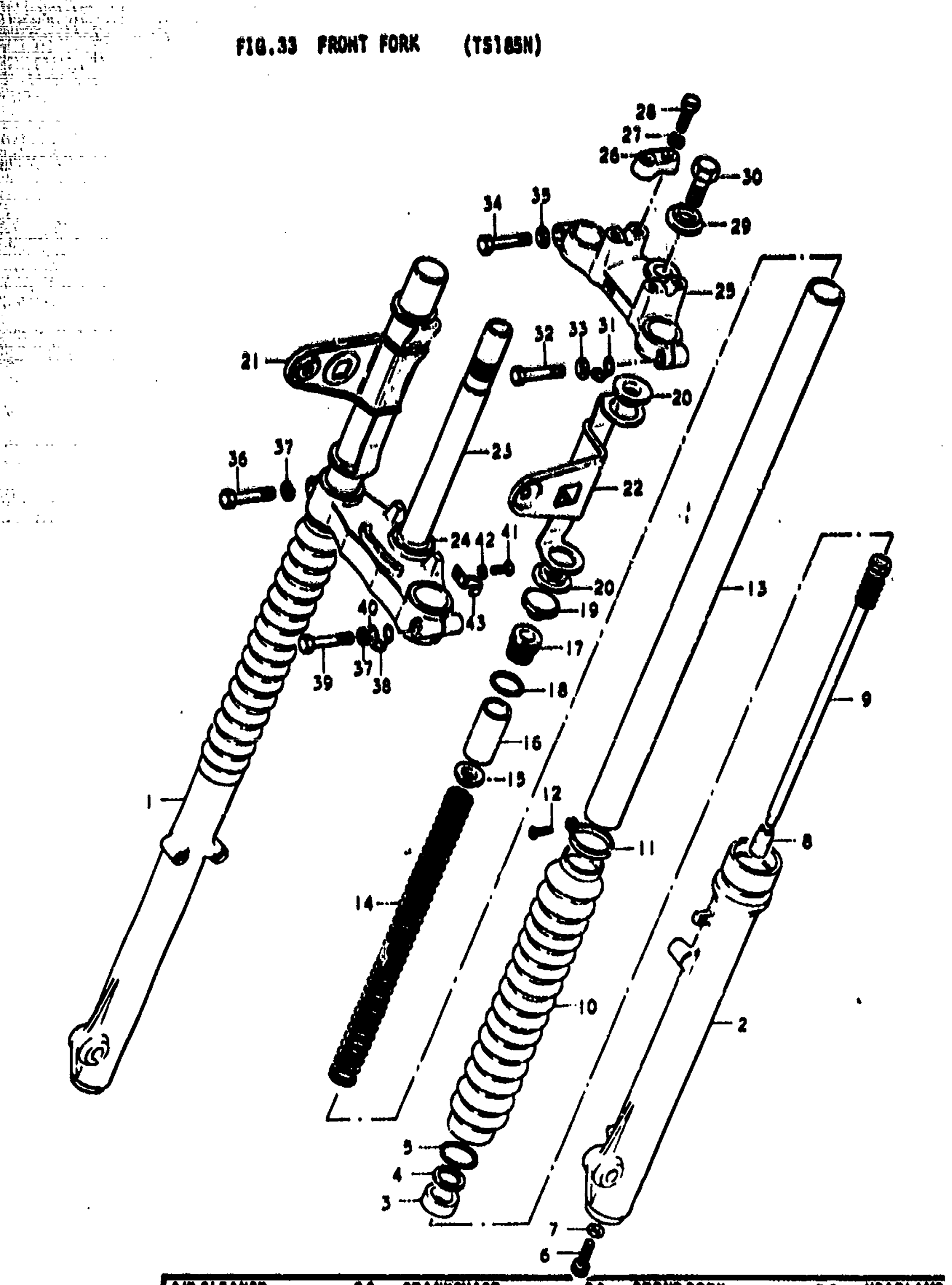

Suzuki TS185 (1979) FRONT FORK (TS185N) Diagram

#

Description
Price

0

FORK ASSY, FRONT | Includes Item(s) 1 - 43

51100-29330-291

Unavailable

1

OUTER TUBE, RH

51130-29330

Unavailable

2

OUTER TUBE, LH

51140-29330

Unavailable

3

OIL SEAL This part replaces 51153-11300.

51153-05300

$15.05

4

WASHER

51158-41603

Unavailable

5

SNAP RING

51156-41603

Unavailable

6

BOLT

51147-16510

$4.34

7

GASKET

51148-41310

$2.26

8

PIECE, OIL LOCK

51195-36220

Unavailable

9

CYLINDER

51146-29330

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 51571-29330.

51571-29330-019

Unavailable

11

BAND

51575-29330

Unavailable

12

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

13

INNER TUBW

51110-29330

Unavailable

14

SPRING

51171-29330

Unavailable

15

GUIDE, SPRING

51172-18630

Unavailable

16

SPACER

51176-29010

Unavailable

17

CAP

51351-29320

Unavailable

18

O RING This part replaces 51181-25010.

51181-29401

$3.37

19

CAP This part replaces 51189-29330.

51189-29400

$10.22

20

CUSHION,HEADLAM This part replaces 51553-11300.

51553-11301

$4.12

21

BRACKET, HEADLAMP HOUSING RH

51530-29330-291

Unavailable

22

BRACKET, HEADLAMP HOUSING LH

51540-29330-291

Unavailable

23

STEM, STEERING

51410-29330-019

Unavailable

24

OUTER RACE

51621-33001

$16.25

25

HEAD, STEERING STEM

51311-29330-291

Unavailable

26

HOLDER, HANDLE

56211-29320-291

$15.51

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

29

WASHER

51356-22012

$6.80

30

BOLT This part replaces 51351-20010.

51351-29400

$31.22

31

CLIP

51455-29330

Unavailable

32

BOLT This part replaces 01107-10408.

01500-10407

$3.55

33

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

$1.97

34

BOLT, HOLDER This part replaces 51451-29400.

51451-12FA0

$3.95

35

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

36

NO DESCRIPTION AVAILABLE This part replaces 01104-12408.

01500-12403

Unavailable

37

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

38

CLIP

51455-30540

Unavailable

39

BOLT This part replaces 01107-12458.

01500-12457

$6.12

40

WASHER This part replaces 08322-11128.

08322-01127

$1.84

41

SCREW This part replaces 02112-06108.

02112-06107

$1.49

42

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

43

CLIP

51453-05110

Unavailable
