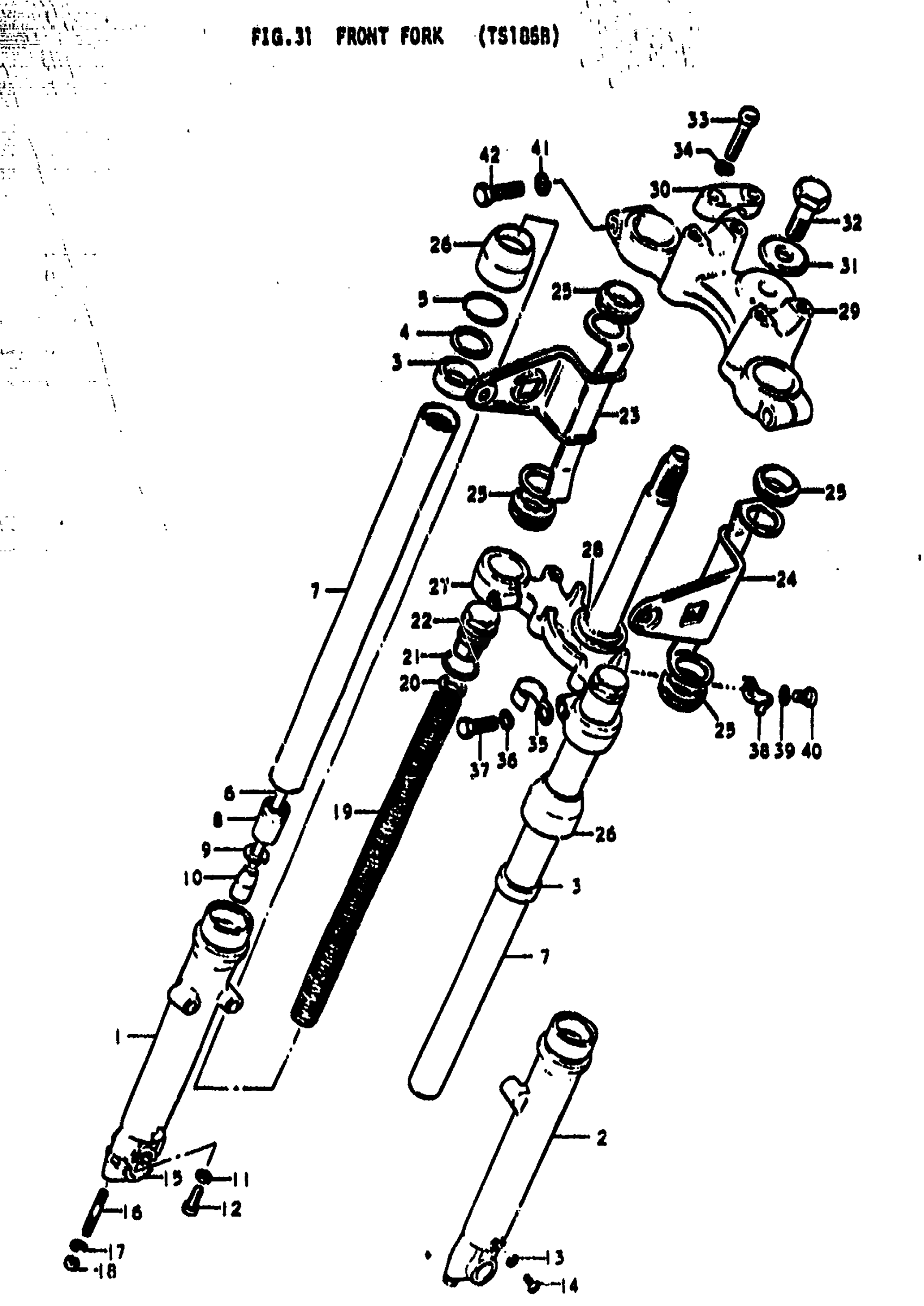

Suzuki TS185 (1979) FRONT FORK (TS185B) Diagram

#

Description
Price

0

RORK ASSY, FRONT | REF. NO. 23~24, L:44 This part replaces 51100-29310-291.

51100-29311-291

Unavailable

0

RORK ASSY, FRONT | REF. NO. 23~24, L:49; Includes Item(s) 1 - 42

51100-29311-291

Unavailable

1

OUTER TUBE, RH

51130-29310

Unavailable

2

OUTER TUBE, LH

51140-29310

Unavailable

3

OIL SEAL

51153-08011

Unavailable

4

WASHER

51158-36010

Unavailable

5

SNAP RING

51156-36010

Unavailable

6

CYLINDER

51146-28312

Unavailable

7

INNER TUBE

51111-29310

Unavailable

8

PISTON

51112-28311

Unavailable

9

SNAP RING

51118-28312

Unavailable

10

PIECE, OIL LOCK

51195-28311

Unavailable

11

GASKET

51148-36011

$3.56

12

BOLT

51147-31011

Unavailable

13

GASKET

51183-03010

$2.07

14

SCREW This part replaces 02111-04087.

02112-04087

$1.49

15

HOLDER, AXLE

51132-16510

Unavailable

16

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$3.18

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

19

SPRING

51171-29310

Unavailable

20

GUIDE, SPRING

51172-25210

Unavailable

21

O RING This part replaces 51181-25010.

51181-29401

$3.37

22

CAP

51351-25011

$27.97

23

BRACKET, HEADLAMP HOUSING RH | L:44 TO 51530-29311-291 USED WITH 51540-29311-291 This part replaces 51530-29310-291.

51530-29311-291

Unavailable

23

BRACKET, HEADLAMP HOUSING RH | L:49

51530-29311-291

Unavailable

24

BRACKET, HEADLAMP HOUSING LH | L:44 TO 51540-29311-291 USED WITH 51530-29311-291 This part replaces 51540-29310-291.

51540-29311-291

Unavailable

24

BRACKET, HEADLAMP HOUSING LH | L:49

51540-29311-291

Unavailable

25

GASKET This part replaces 51553-29310.

51553-29311

Unavailable

26

SEAL DUST This part replaces 51173-29310.

51173-39610

Unavailable

27

NO DESCRIPTION AVAILABLE This part replaces 51410-28013.

51410-36260

Unavailable

28

OUTER RACE

51621-33001

$16.25

29

HEAD, STEERING STEM This part replaces 51311-28210-019.

51311-29320-291

Unavailable

30

CLAMP, HANDLEBAR UPPER This part replaces 56211-27210-019.

56211-29320-291

$15.51

31

WASHER

51356-22012

$6.80

32

BOLT This part replaces 51351-20010.

51351-29400

$31.22

33

BOLT

01204-08357

$2.09

34

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

35

CLIP

51455-36010

Unavailable

36

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

37

BOLT

51451-28012

Unavailable

38

CLIP

51453-30011

Unavailable

39

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

40

SCREW This part replaces 02112-06108.

02112-06107

$1.49

41

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

42

BOLT This part replaces 51451-15113.

01104-10388

$2.72
