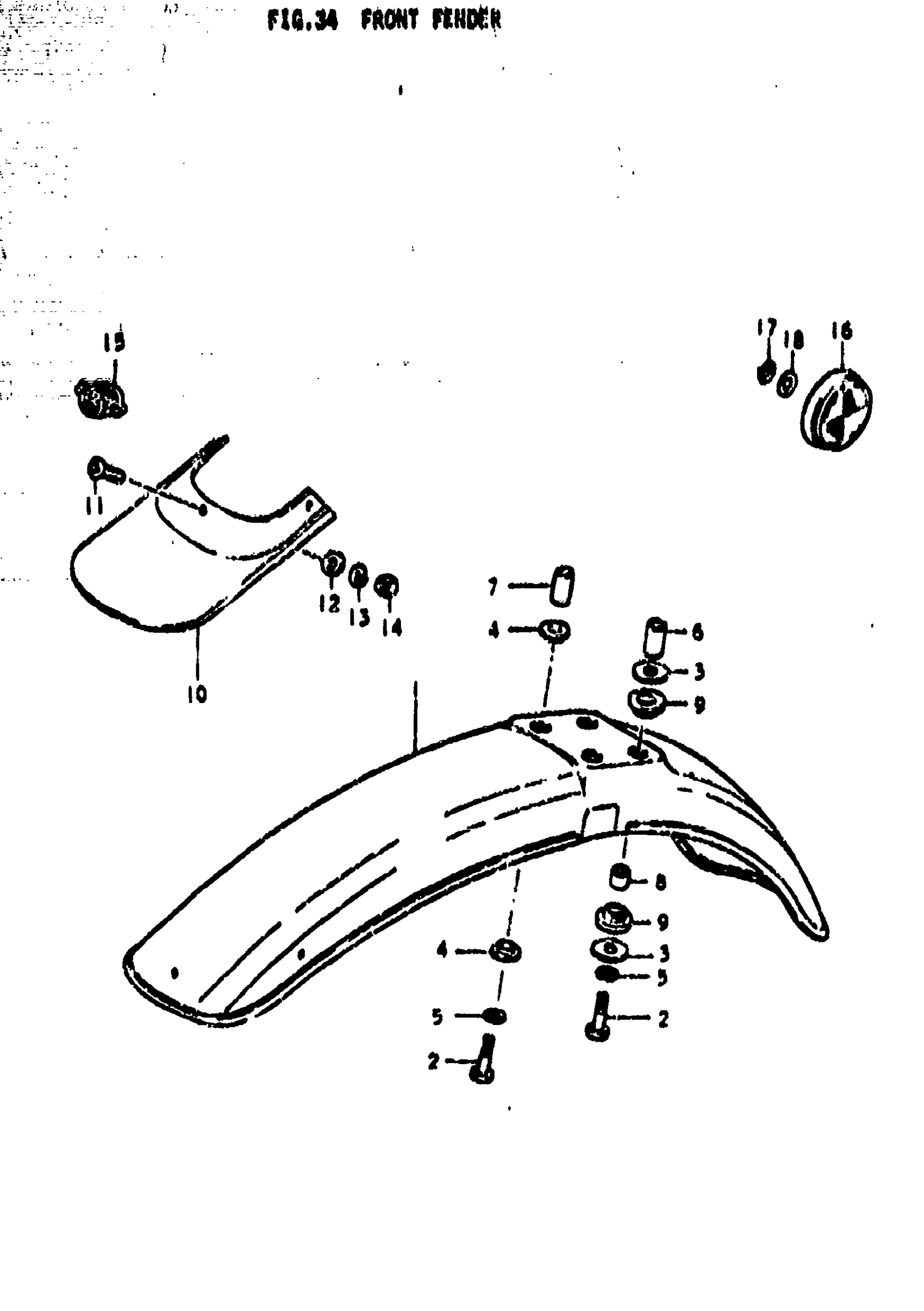

Suzuki TS185 (1979) FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B This part replaces 53111-30500-189.

53111-41101-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | C; TO 53111-30511-18 USED WITH 09180-06048 09180-06026 01107-06358 08321-21068 This part replaces 53111-30510-189.

53111-30511-189

Unavailable

1

FLENDER, FRONT | N

53111-30511-03J

Unavailable

2

BOLT This part replaces 01107-06358.

64455-07L00

$1.59

4

WASHER (6.5X20X1.2) | B,C; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

SPACER (6.5X10.5X15) | B,C; 6.5x10.5x15 This part replaces 09180-06061.

09180-06079

$2.42

7

SPACER, IG COOL (6.4X10X18) | N This part replaces 09180-06026.

09180-06195

$3.68

8

SPACER (6.5X10X10) | B,C; 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

9

CUSHION | B,C

09320-09003

$2.23

10

MUD FLAP | C,N

53411-28600

Unavailable

11

SCREW | C,N

02142-04127

$1.57

12

WASHER | C,N This part replaces 08322-21048.

08322-01047

$1.86

13

LOCK WASHER | C,N This part replaces 08321-21048.

08321-0104A

$1.84

14

NUT | C,N This part replaces 08310-11048.

08310-00047

$2.23

15

EMBLEM | C,N

99801-08810

Unavailable

16

REFLEX REFLECTOR, FRONT

35950-45010

$17.09

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

18

WASHER This part replaces 08322-21058.

08322-01057

$2.13
