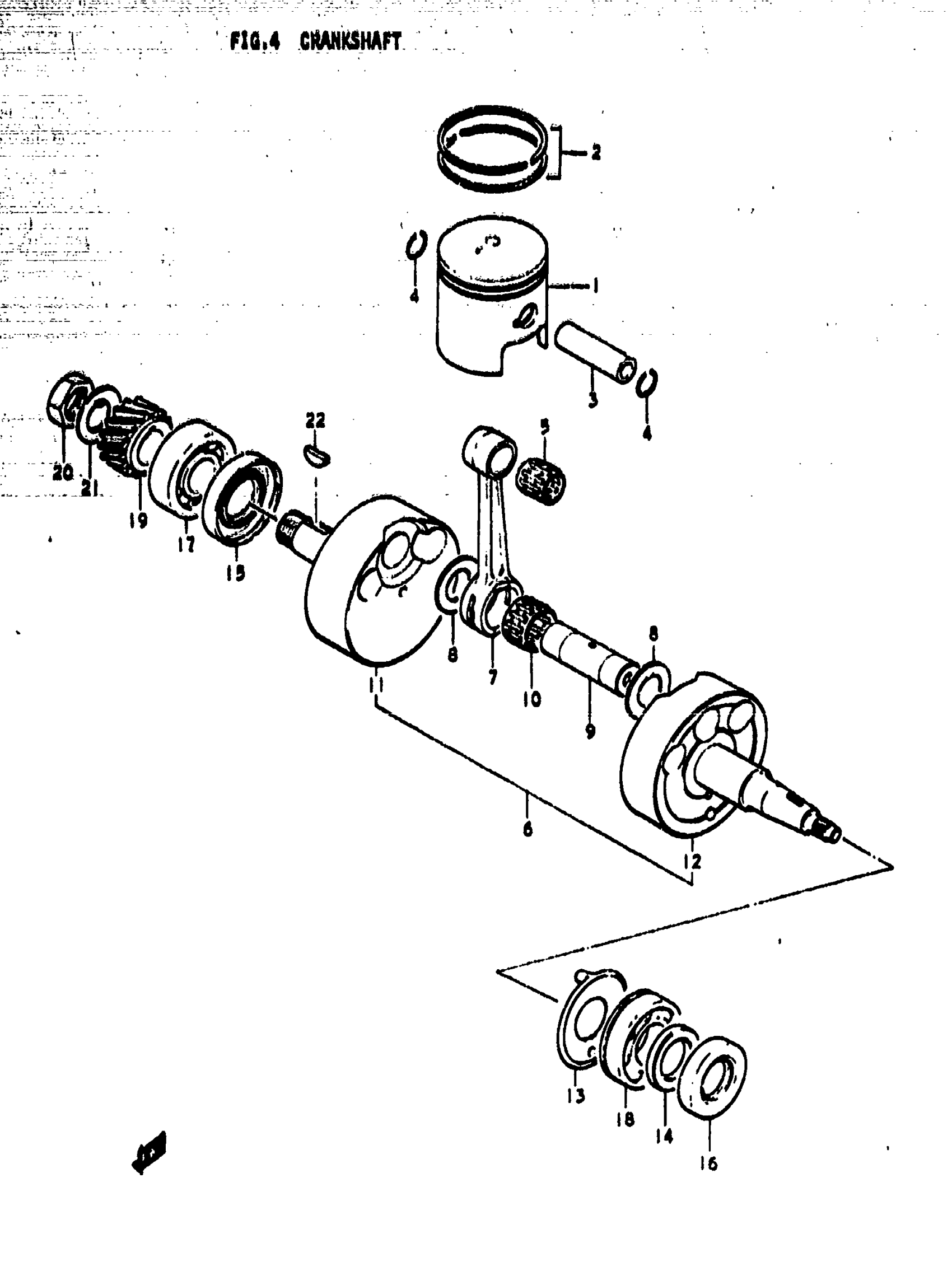

Suzuki TS185 (1979) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (STD) | B This part replaces 12110-29300.

12110-29900

$86.13

1

PISTON | C,N

12110-29500

Unavailable

1

PISTON SET,OS:. | B; OS:0.5 This part replaces 12110-29300-050.

12100-29900-050

Unavailable

1

NO DESCRIPTION AVAILABLE | C,N; OS:0.5 This part replaces 12110-29500-050.

12103-29840-050

Unavailable

1

PISTON SET,0S:1 | B; OS:1.0 This part replaces 12110-29300-100.

12100-29900-100

Unavailable

1

PISTON | C,N; OS:1.0

12110-29500-100

Unavailable

2

RING SET, PLSTON

12140-29010

$27.68

2

RING SET, PLSTON | OS:0.5

12140-29010-050

$49.08

2

RING SET, PLSTON | OS:1.0

12140-97311

Unavailable

3

PIN, PLSTON

12151-29001

$15.27

4

CIRCLIP

09381-16001

$1.45

5

RN 16X21X19.6BR This part replaces 09263-16005.

09263-16015

$14.22

6

NO DESCRIPTION AVAILABLE | B This part replaces 12200-29600.

12200-29602

Unavailable

6

NO DESCRIPTION AVAILABLE | C,N; Includes Item(s) 7 - 12 This part replaces 12200-29601.

12200-29602

Unavailable

7

CONECTING ROD This part replaces 12161-93000.

12161-41500

$148.30

8

WASHER | 22x35x1

09160-22010

$7.10

9

PIN, CRANK

12211-29001

$43.83

10

RN 22X28X16 BRG This part replaces 09263-22006.

09263-22032

$29.98

11

CRANKSHAFT, RH

12221-29600

Unavailable

12

NO DESCRIPTION AVAILABLE | B This part replaces 12261-29600.

12261-29602

Unavailable

12

NO DESCRIPTION AVAILABLE | C,N This part replaces 12261-29601.

12261-29602

Unavailable

13

PLATE, OIL GUIDE

12511-29100

Unavailable

14

SPACER | 25x36x4.5

09180-25029

$7.41

15

OIL SEAL, RH

09283-26007

$6.65

16

OIL SEAL, LH This part replaces 09283-25037.

09283-25066

$6.76

17

BEARING, COUNTER SHAFT This part replaces 09262-20009.

09262-20073

$21.00

18

BEARING, LH

09269-25013

$51.83

19

GEAR, PRIMARY DRIVE | NT:19

21111-29000

Unavailable

20

NUT

09140-18002

$4.20

21

WASHER | 18x32x0.8

09166-18001

$2.74

22

KEY

08341-31059

$2.50
