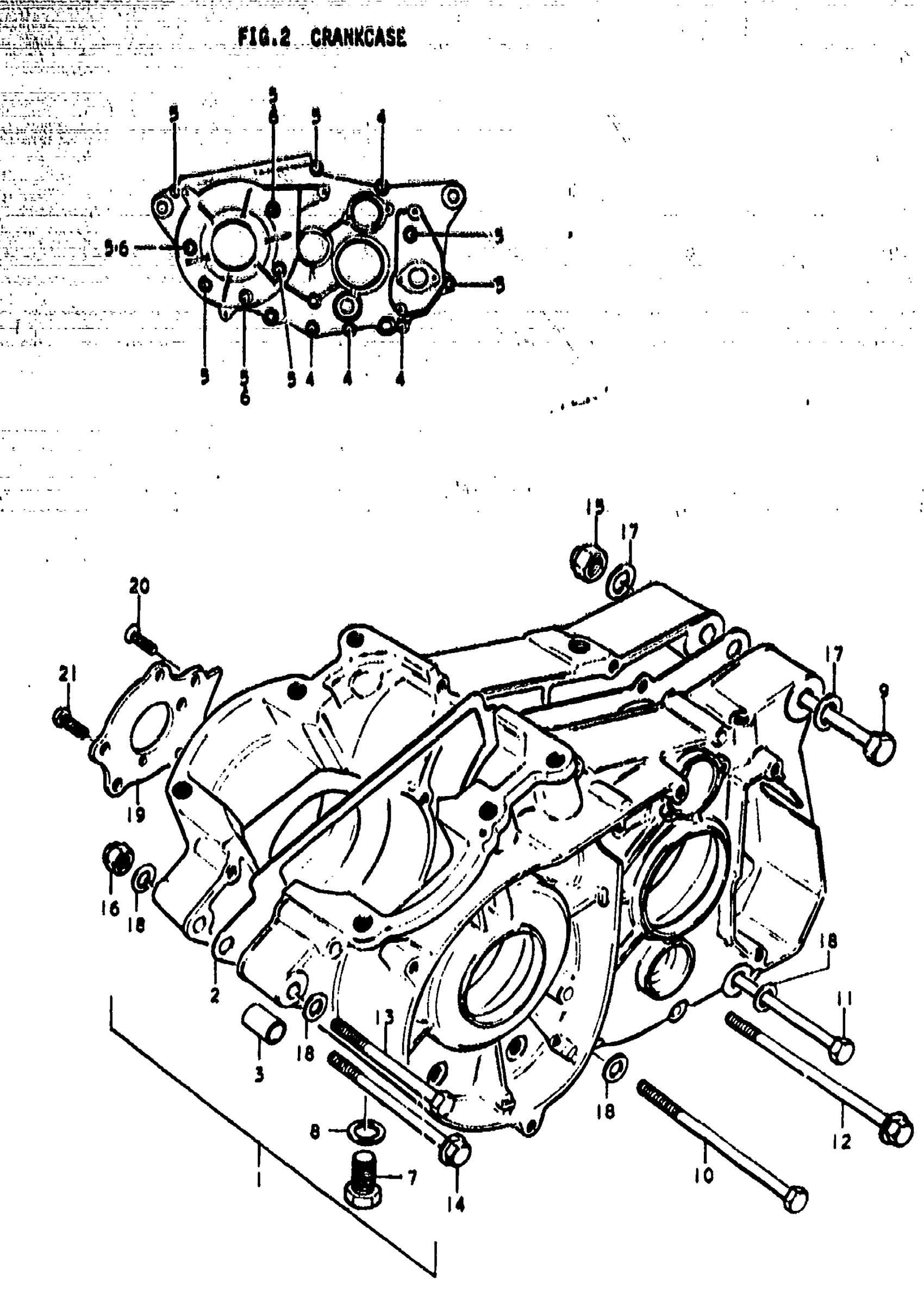

Suzuki TS185 (1979) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B This part replaces 11300-29850.

11300-29852

Unavailable

1

NO DESCRIPTION AVAILABLE | C,N; Includes Item(s) 2 - 8 This part replaces 11300-29851.

11300-29852

Unavailable

2

GASKET,CRANK CA This part replaces 11481-29300.

11481-29310

$22.73

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06658.

02112-06657

$2.62

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

7

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

$2.79

8

GASKET

09168-14004

$1.83

9

BOLT 10X125 | 10x125 This part replaces 09100-10051.

09100-10274

$7.15

10

BOLT | 8x145

09100-08142

Unavailable

11

BOLT | B; 8x120

09100-08078

Unavailable

12

BOLT (8X120) | 8x120 This part replaces 09103-08026.

09103-08109

$3.18

13

BOLT | B; 8x100

09100-08023

Unavailable

14

BOLT (8X100) | 8x100 This part replaces 09103-08009.

09103-08070

$5.57

15

NUT

09159-10011

$3.23

16

NUT

09159-08020

$1.78

17

WASHER This part replaces 08322-11108.

08322-01107

$2.15

18

WASHER | BC,N This part replaces 08322-11088.

08322-01087

$2.13

19

PLATE, OIL RESERVOIR

12521-28002

Unavailable

20

SCREW This part replaces 02122-06128.

02122-06127

$1.84

21

SCREW This part replaces 02112-06168.

02112-06167

$1.49
