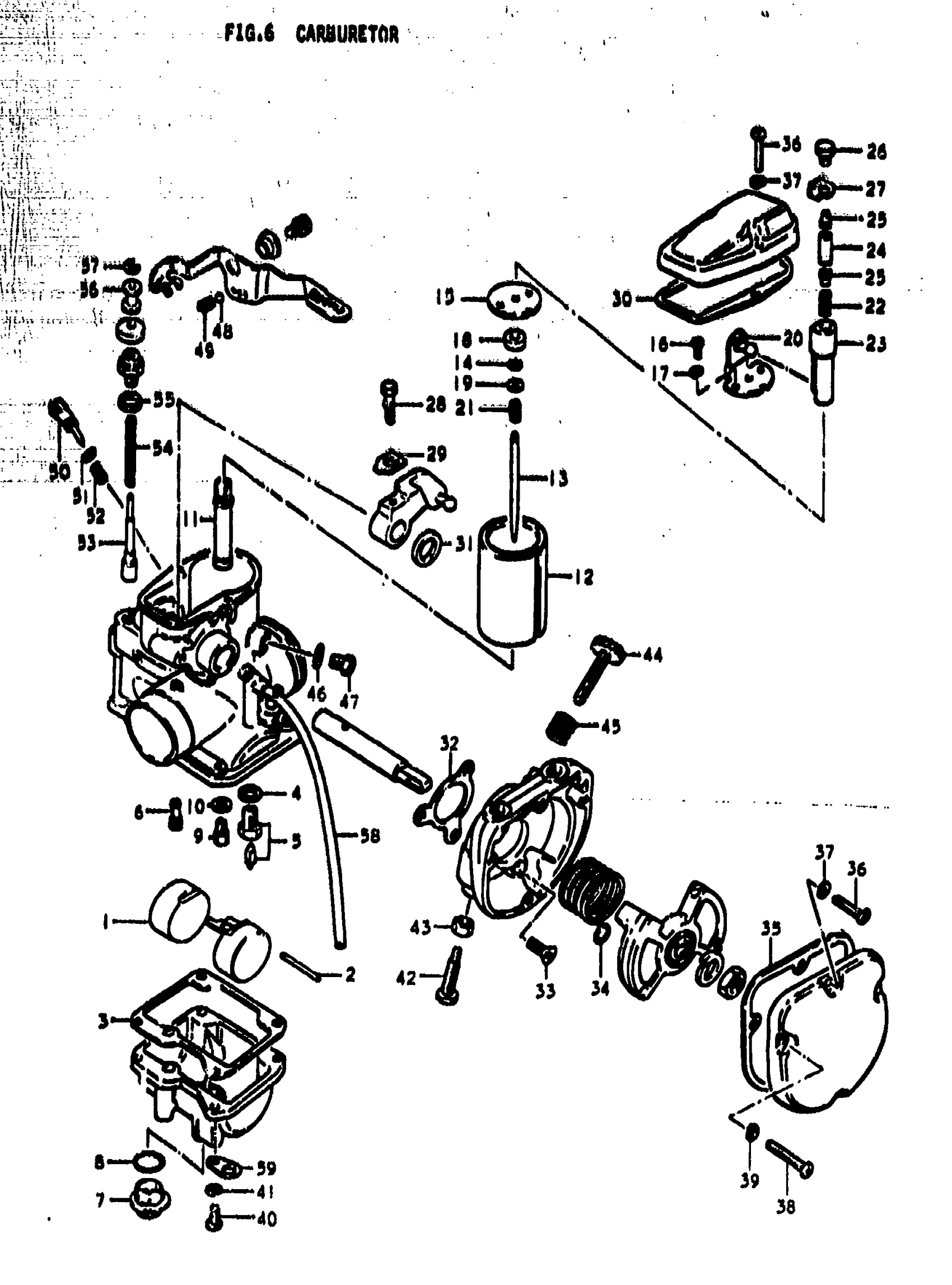

Suzuki TS185 (1979) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | TS185C F.NO.78877~; Includes Item(s) 1 - 59

13200-29320

Unavailable

1

FLOAT

13252-29630

$27.45

2

.PIN, FLOAT

13254-01010

$3.62

3

GASKET

13251-29630

Unavailable

4

GASKET, VALVE

13392-58600

$1.82

5

VALVE ASSY, NEEDLE This part replaces 13370-29630.

13370-30651

Unavailable

6

JET, PLLOT | A22.5

09492-22006

$11.38

7

PLUG, DRAIN

13247-29630

Unavailable

8

GASKET

13246-29630

$6.30

9

JET, MAIN | #A-125

09491-25009

Unavailable

10

WASHER

13382-03110

$2.80

11

JET, NEEDLE | AO-O

09494-00201

Unavailable

12

VALVE, PISTON

13551-29310

Unavailable

13

NEEDLE, JET | SCN11-3

13383-29310

Unavailable

14

CLIP

13394-10010

$5.45

15

PLATE

13581-29320

Unavailable

16

SCREW

02112-03067

Unavailable

17

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

18

RING

13387-47010

$7.22

19

WASHER

13382-47010

$3.56

20

BRACKET

13398-30650

Unavailable

21

SPRING

13388-47010

$6.91

22

SPRING

13543-43010

Unavailable

23

CONNECTOR

13545-32212

Unavailable

24

PIN

13546-30650

Unavailable

25

PIN

13544-43010

Unavailable

26

SCREW

13548-32212

Unavailable

27

PLATL

13547-43010

Unavailable

28

BOLT

13613-30650

Unavailable

29

PLATE

13576-30650

Unavailable

30

GASKET

13266-29630

Unavailable

31

RING

13574-29630

Unavailable

32

GASKET

13632-29630

Unavailable

33

SCREW, HEADLAMP (5X12) This part replaces 02121-05127.

09126-05003

$2.06

34

SPRING

13573-29630

Unavailable

35

GASKET

13631-29630

Unavailable

36

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

37

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

38

SCREW This part replaces 02112-04258.

02112-0425B

$2.34

39

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

40

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

41

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

42

BOLT, GEAR SHIFT LINK This part replaces 13605-32212.

01500-0620A

$1.78

43

.NUT This part replaces 08310-22068.

08310-00067

$2.13

44

ADJUSTER, THROTTLE

13267-29630

Unavailable

45

SPRING

13268-33110

Unavailable

46

WASHER

13663-31010

$2.80

47

PLUG

13664-18654

$8.98

48

STEEL BALL This part replaces 13435-43010.

13596-93010

$4.43

49

SPRING

13434-43010

$6.47

50

SCREW, AIR PILLOT

13269-15011

Unavailable

51

O RING

13295-33010

$4.48

52

SPRING

13268-35010

$4.48

53

VALVE, STARTER

13411-45010

Unavailable

54

SPRING

13417-43010

$4.34

55

O RING This part replaces 13295-15010.

09280-08014

$1.89

56

BUSH

13424-33110

$5.44

57

CLIP

13617-33110

Unavailable

58

HOSE This part replaces 13684-30650.

13684-40A00

$9.58

59

PLATE

13693-30650

Unavailable
