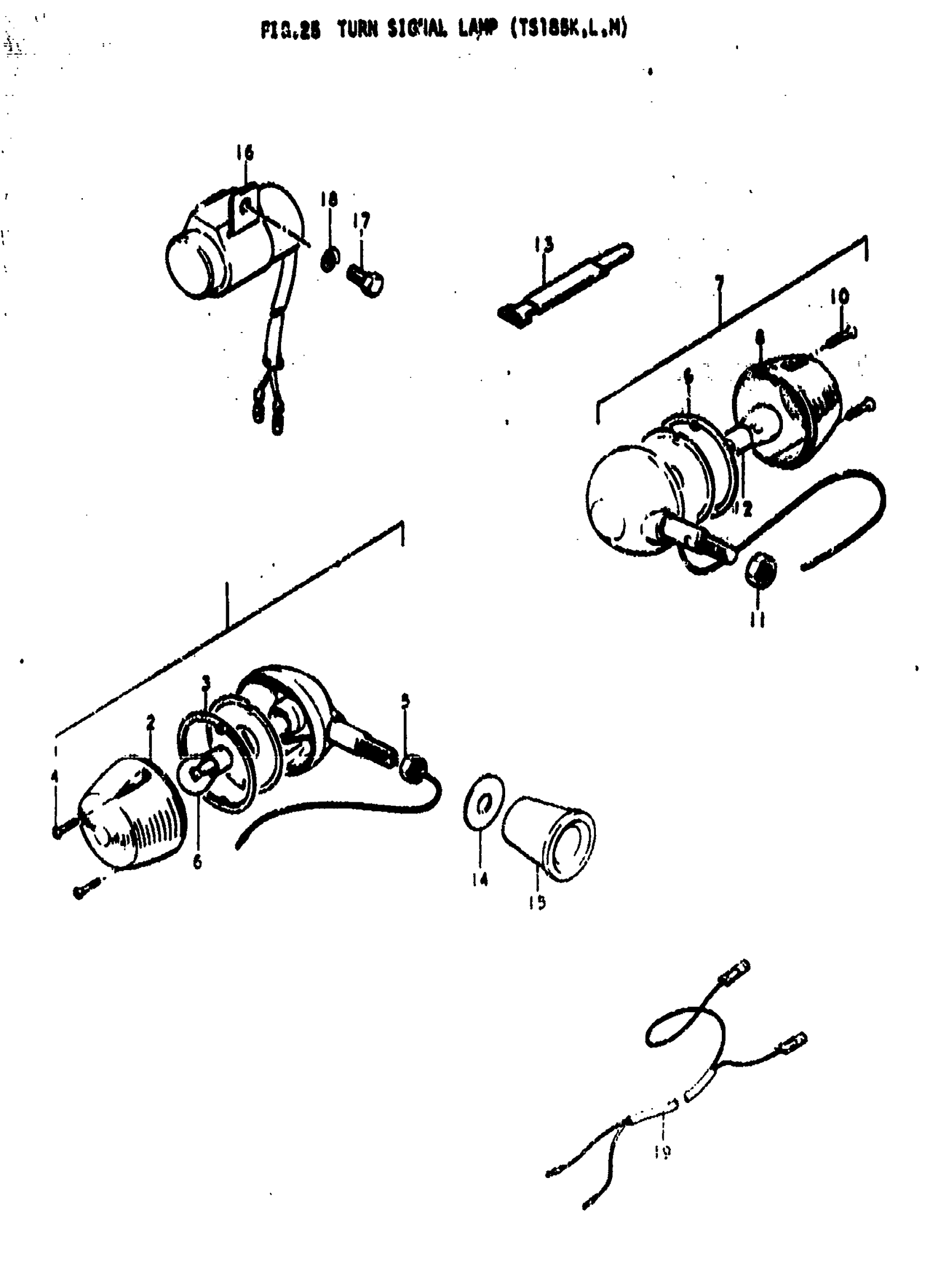

Suzuki TS185 (1976) TURN SIGNAL LAMP (TS185K Diagram

#

Description
Price

1

LAMP ASSY, TURN SIGNAL FRONT | Includes Item(s) 2 - 6 This part replaces 35601-27630.

35601-27630-999

Unavailable

2

LINS

35612-12611

$12.50

3

GASKET

35613-03610

$13.34

4

SCREW This part replaces 02133-03167.

02132-03167

$1.49

5

NUT This part replaces 08312-32108.

08310-00107

$2.19

6

BULB | 6V, 21CP

09471-06011

Unavailable

7

LAMP ASSY, REAR TURN SIGNAL | K,L; TO 35603-28622

35603-28620

Unavailable

7

LAMP ASSY, REAR TURN SIGNAL | M; Includes Item(s) 8 - 12

35603-28622

Unavailable

8

LENS | K,L; RED

35652-22610

Unavailable

8

LENS | M; AMBER

35612-12611

$12.50

9

GASKET

35613-03610

$13.34

10

SCREW This part replaces 02133-03167.

02132-03167

$1.49

11

NUT This part replaces 08312-32108.

08310-00107

$2.19

12

BULB | 6V, 21CP

09471-06011

Unavailable

13

CLAMP | L,M; L:110 This part replaces 09407-11302.

09407-18302

$2.28

14

WASHER This part replaces 08322-21108.

08322-01107

$2.15

15

COVER, TURN SIGNAL BOSS

35698-28000

Unavailable

16

RELAY ASSY,TRN | FROM 38610-28610 This part replaces 38610-28611.

38610-05X50

Unavailable

17

BOLT This part replaces 01112-06128.

01500-06127

$1.97

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

LEAD WIRE, FRONT TURN SIGNAL | L

36853-26000

Unavailable
