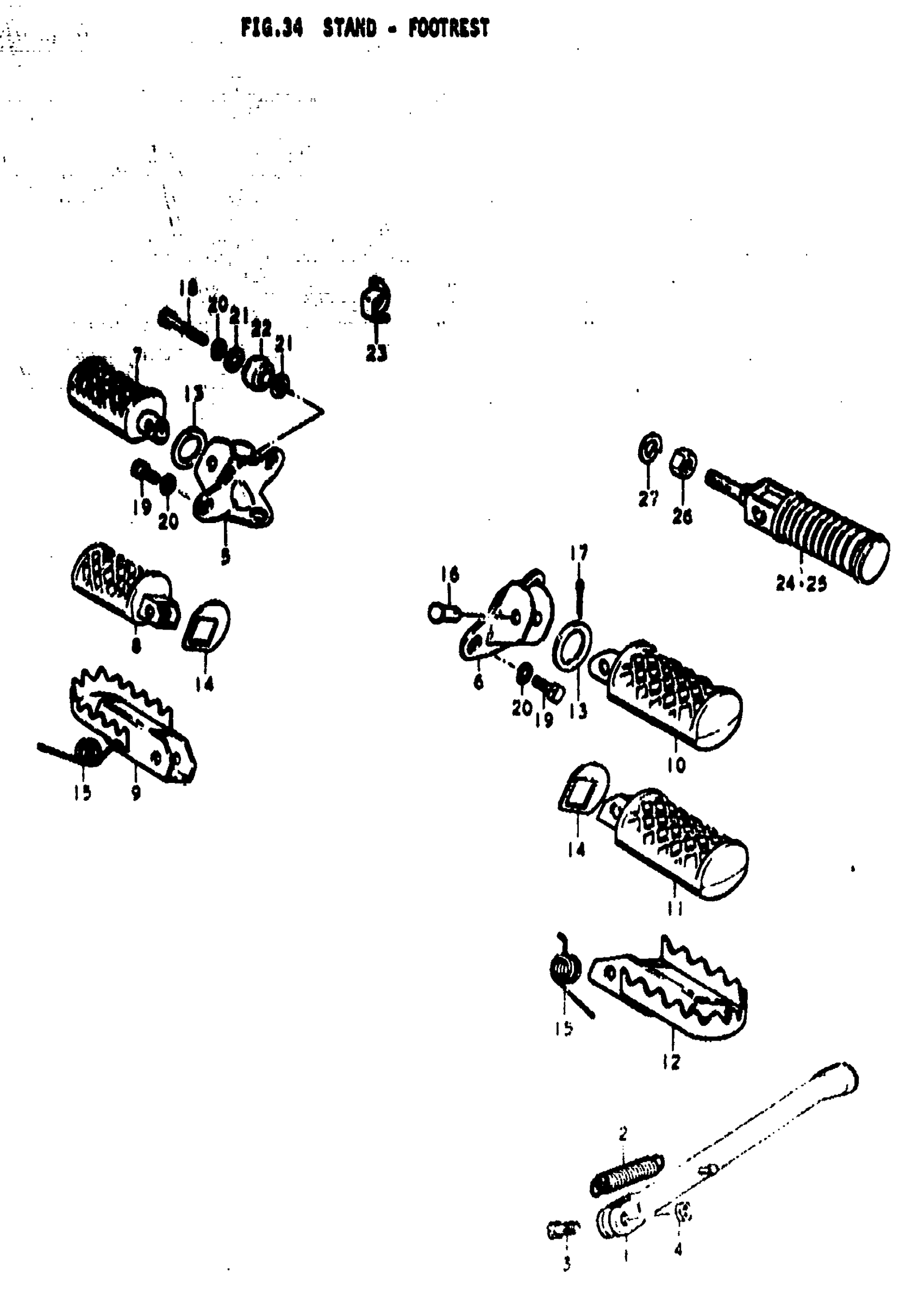

Suzuki TS185 (1976) STAND - FOOTREST Diagram

#

Description
Price

1

STAND, PROP

42310-29000

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT | 10x30

09100-10067

$2.61

4

NUT This part replaces 08312-31108.

08310-00107

$2.19

5

FOOTREST HOLDER, FRONT RH | K,L,M This part replaces 43510-29000.

43510-29001

Unavailable

5

FOOTREST HOLDER, FRONT RH | A

43510-29001

Unavailable

6

FOOTREST BAR, FRONT LH | K,L,M This part replaces 43520-29000.

43520-29001

Unavailable

6

FOOTREST HOLDER, FRONT LH | A

43520-29001

Unavailable

7

RUBBER, RH | K; TO 43550-25301 USED WITH 43581-25300 This part replaces 43550-25000.

43550-25301

Unavailable

8

FOOTREST, RH | L,M

43550-25301

Unavailable

9

FOOTREST, RH | A

43550-25302

Unavailable

10

RUBBER, LH | K; TO 43560-25301 USED WITH 43581-25300 This part replaces 43560-25000.

43560-25301

Unavailable

11

FOOTREST, LH | L,M

43560-25301

Unavailable

12

FOOTREST, LH | A

43560-25302

Unavailable

13

WASHER | K This part replaces 09160-22002.

09160-22033

$3.89

14

WASHER, FRONT FOOTREST | L,M

43581-25300

Unavailable

15

SPRING | A

09448-14012

$3.04

16

PIN

09200-08002

$2.05

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

18

BOLT | K,L,M This part replaces 01122-08358.

01500-0835B

$3.04

19

BOLT, LH | K,L,M; 8x14A; 8x14 This part replaces 09100-08067.

09100-08143

$2.29

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

WASHER | K,L,M This part replaces 08322-11088.

08322-01087

$2.13

22

CUSHION, KICK LEVER STOPPER | K,L,M

43534-16400

Unavailable

23

PLATE, KICK LEVER STOPPER | A

43543-29000

Unavailable

24

FOOTREST ASSY, PILLION RH

43600-28000

Unavailable

25

FOOTREST ASSY,P | K,L This part replaces 43600-03001.

43600-09D00

$27.30

25

FOOTREST ASSY, PILLION LH | M,A

43600-36200

Unavailable

26

NUT, FIXED DRIVE FACE | MA This part replaces 08312-31128.

09140-12039

$3.05

27

LOCK WASHER | M This part replaces 08321-21128.

08321-01127

$2.06
