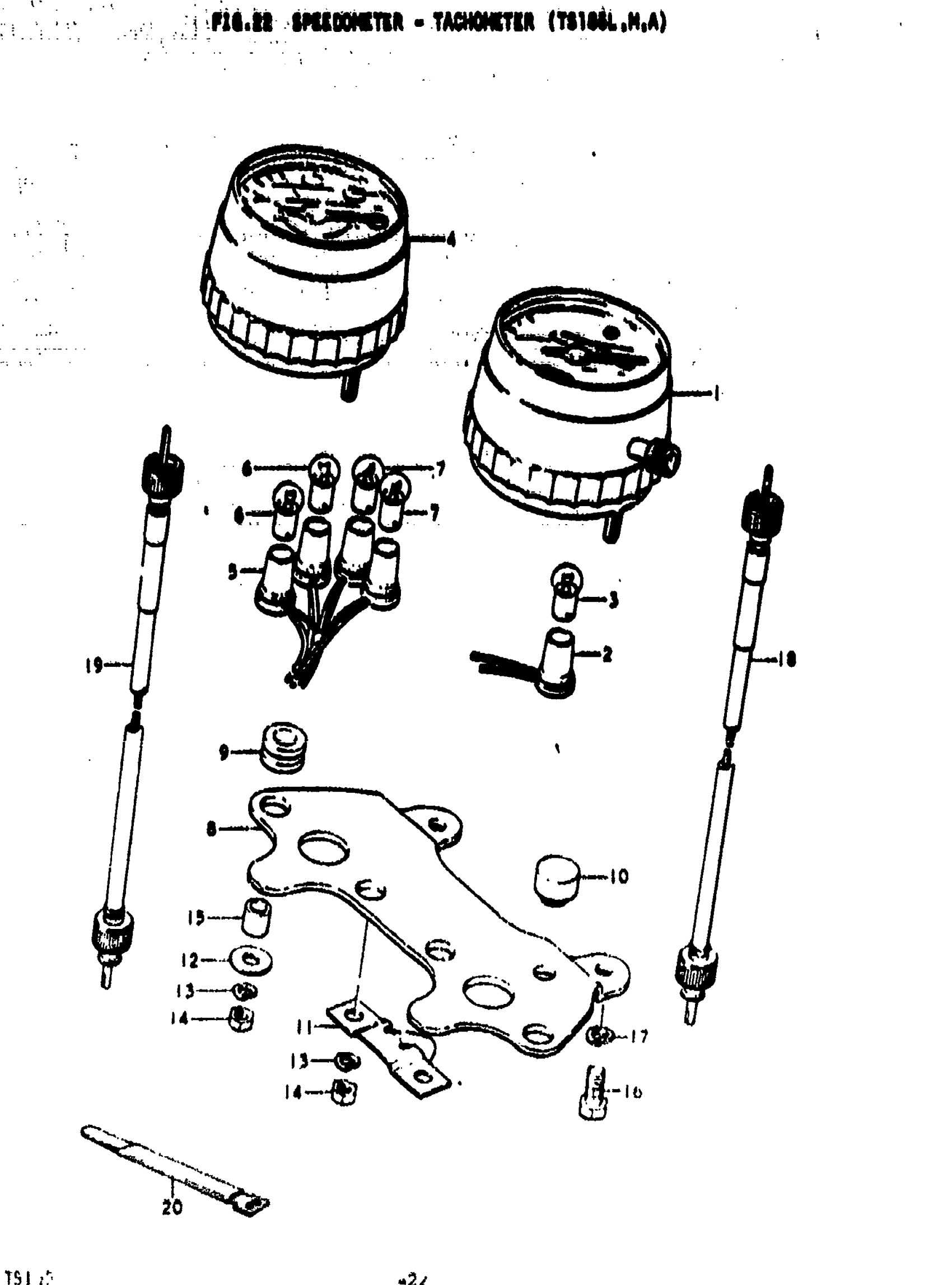

Suzuki TS185 (1976) SPEEDOMETER - TACHOMETER (TS185L Diagram

#

Description
Price

0

SPEEDOMETER / TACHOMETER ASSY | L,M

34100-28613

Unavailable

0

SPEEDOMETER / TACHOMETER ASSY | A; FROM 34100-28613 A; FROM 34100-28613 This part replaces 34100-28614.

34100-28616

Unavailable

0

SPEEDOMETER / TACHOMETER ASSY | AN)1 A; Includes Item(s) 1 - 15

34100-28616

Unavailable

1

SPEEDOMETER ASSY (SCALE PLATE

34101-28613

Unavailable

1

SPEEDOMETER ASSY (SCALE PLATE | AA

34101-28615

Unavailable

2

SOCKET | FROM 34173-28011

34170-39600

Unavailable

3

BULB | 6V, 3W

09471-06002

$2.25

4

TACHOMETER ASSY (SCALE PLATE | L,M This part replaces 34201-28013.

34201-28014

Unavailable

4

TACHOMETER ASSY (SCALE PLATE | A; FROM 34201-28013A; FROM 34201-28013

34201-28014

Unavailable

4

TACHOMETER ASSY (SCALE PLATE | AA This part replaces 34201-28013.

34201-28014

Unavailable

5

SOCKET, TACHOMETER | FROM 34270-28011 This part replaces 34270-36010.

34273-05320

Unavailable

6

BULB | 6V, 3W

09471-06002

$2.25

7

BULB | 6V, 1.7W

09471-06001

$2.18

8

BRACKET

34950-36010

Unavailable

9

CUSHION, NO.1

34955-28010

$3.84

10

CUSHION, NO.2

34956-28011

Unavailable

11

CLIP

34961-28012

Unavailable

12

WASHER (5.5X16X1.2) | 5.5X16X1.2 This part replaces 09160-05017.

09160-05043

$2.30

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

NUT This part replaces 08311-31058.

08310-00057

$1.84

15

SPACER

34972-28010

Unavailable

16

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

17

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

18

CABLE ASSY,SPEE This part replaces 34910-25030.

34910-02901

Unavailable

19

CABLE,TACHOMETE This part replaces 34940-34030.

34940-34031

Unavailable

20

CLAMP | L:110 This part replaces 09407-11302.

09407-18302

$2.28
