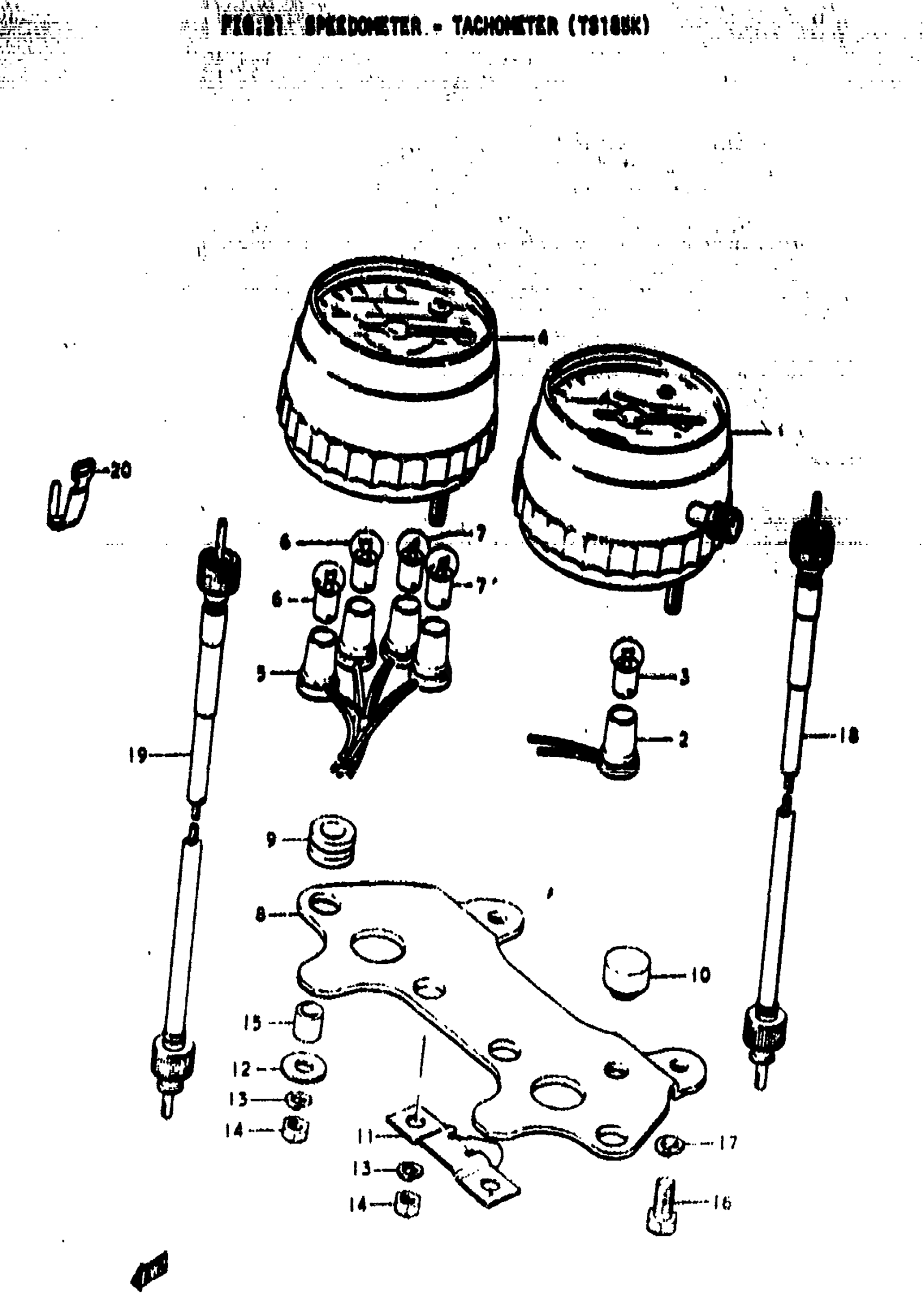

Suzuki TS185 (1976) SPEEDOMETER - TACHOMETER (TS185K) Diagram

#

Description
Price

1

SPEEDOMETER ASSY | Includes Item(s) 2 - 3

34100-28611

Unavailable

2

SOCKET

34173-28010

Unavailable

3

BULB | 6V, 3W

09471-06002

$2.25

4

TACHOMETER ASSY (SCALE PLATE | Includes Item(s) 5 - 7 This part replaces 34200-28011.

34201-28014

Unavailable

5

SOCKET

34270-28010

Unavailable

6

BULB | 6V, 3W

09471-06002

$2.25

7

BULB | 6V, 1.7W

09471-06001

$2.18

8

BRACKET

34950-28011

Unavailable

9

CUSHION, NO.1

34955-28010

$3.84

10

CUSHION, NO.2

34956-28011

Unavailable

11

PLATE, METER

34961-28011

Unavailable

12

WASHER (5.5X16X1.2) | 5.5X16X1.2 This part replaces 09160-05017.

09160-05043

$2.30

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

NUT This part replaces 08311-31058.

08310-00057

$1.84

15

SPACER

34972-28010

Unavailable

16

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

CABLE ASSY,SPEE This part replaces 34910-25030.

34910-02901

Unavailable

19

CABLE ASSY, TACHOMETER

34940-10030

Unavailable

20

CLAMP | L:110 This part replaces 09407-11302.

09407-18302

$2.28
