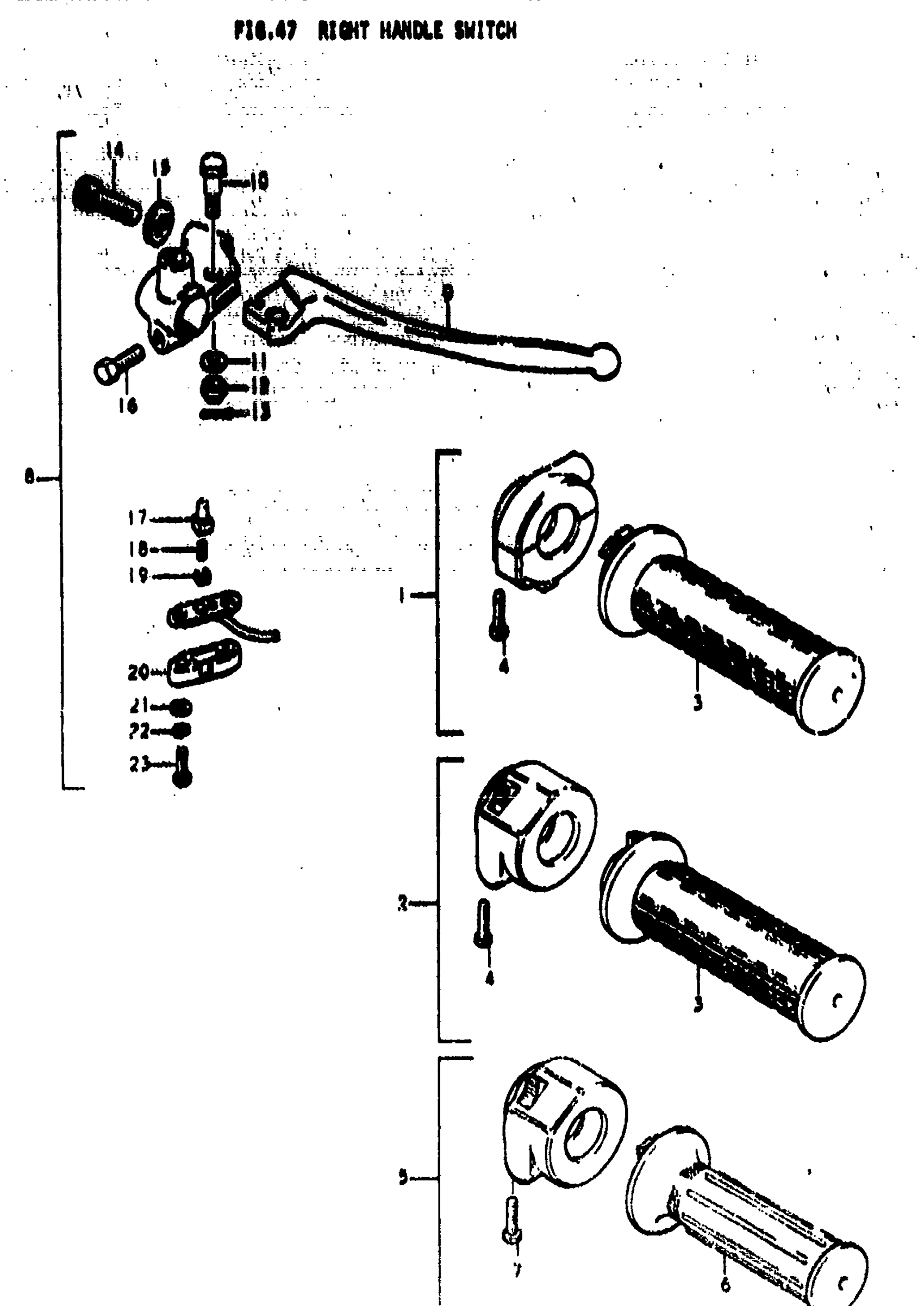

Suzuki TS185 (1976) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | K,L

57100-28010

Unavailable

2

NO DESCRIPTION AVAILABLE | M; Includes Item(s) 3 - 4 This part replaces 57100-32600.

57100-39650

Unavailable

3

GRIP, THROTTLE | K,L,M

57110-28010

$34.76

4

SCREW | K,L,M This part replaces 02111-05207.

02112-05207

$1.97

5

GRIP ASSY, THROTTLE | A; Includes Item(s) 6 - 7

57100-32610

Unavailable

6

GRIP, THROTTLE | A

57110-32610

Unavailable

7

SCREW | A This part replaces 02111-05207.

02112-05207

$1.97

8

LEVER ASSY, BRAKE | K; TO 57300-30700 This part replaces 57300-30011.

57300-30501

Unavailable

8

LEVER ASSY, BRAKE | L; TO 57300-30701 USED WITH 56741-380-12032 This part replaces 57300-30700.

57300-30501

Unavailable

8

LEVER ASSY, BRAKE | M,A; FROM 57300-28012; Includes Item(s) 9 - 23

57300-28013

Unavailable

9

LEVER, BRAKE | FROM 57420-33010

57420-18602

Unavailable

10

BOLT This part replaces 57431-11010.

57431-11013

$6.31

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

NUT

57433-11010

$5.64

13

PIN This part replaces 04111-16158.

04111-1620A

$1.49

14

ADJUSTER, CABLE

57441-26010

$4.48

15

NUT

57442-11010

$2.79

16

BOLT This part replaces 01112-06208.

01500-06207

$2.28

17

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

18

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

19

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

20

COVER

57481-33010

$5.84

21

WASHER This part replaces 08322-21038.

08322-01037

$1.93

22

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

23

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23
