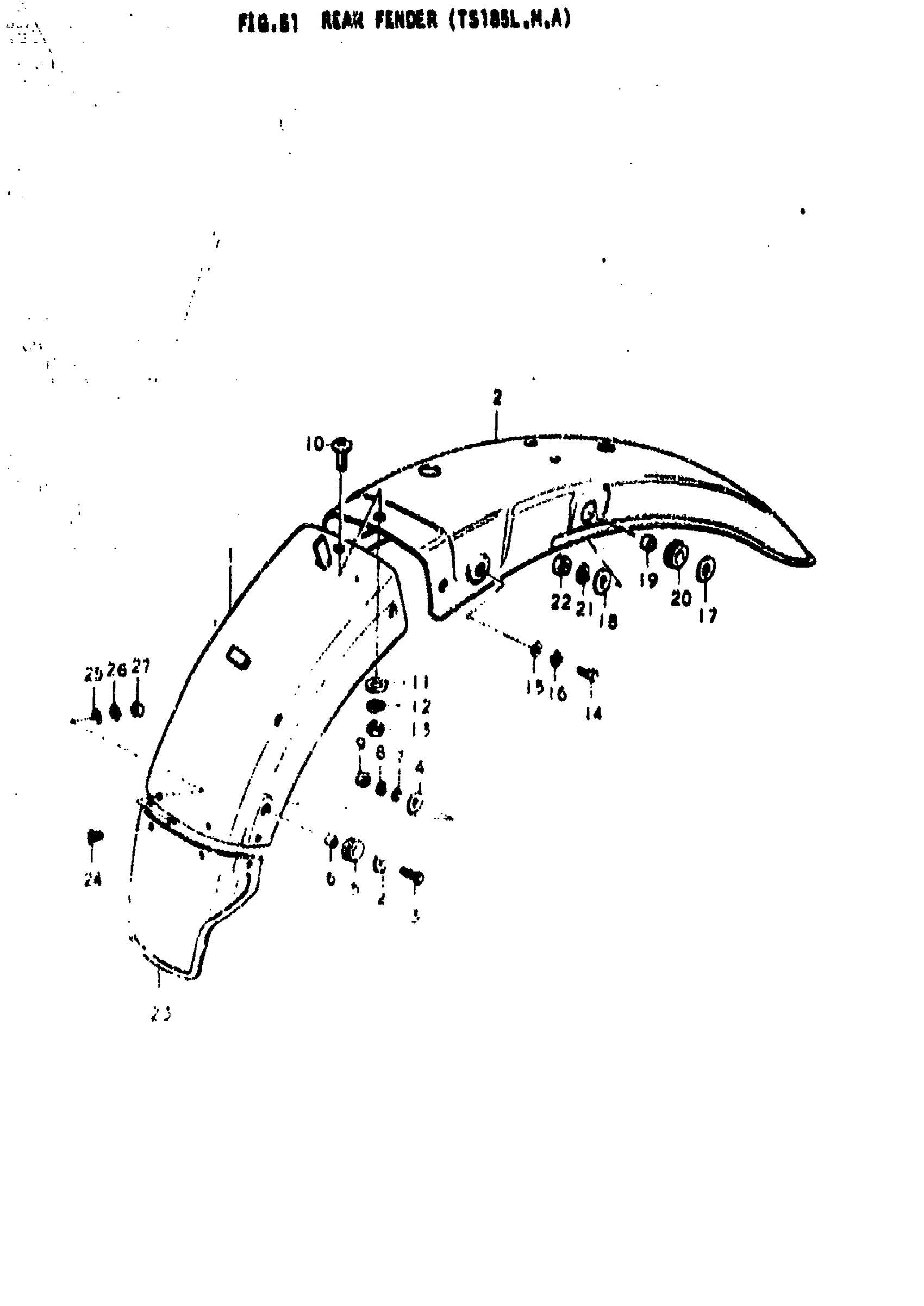

Suzuki TS185 (1976) REAR FENDER (TS185L Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT | L; TO 63110-29601

63110-29600

Unavailable

1

BODY, REAR TENDER FRONT | M,A

63110-29601

Unavailable

2

FENDER, REAR | L,M

63110-28400-737

Unavailable

2

NO DESCRIPTION AVAILABLE | A This part replaces 63110-28402-189.

63110-28402-13L

Unavailable

3

BOLT This part replaces 01112-06208.

01500-06207

$2.28

4

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

5

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

6

SPACER | 6.1x9x7.5

09180-06038

$1.98

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

SCREW This part replaces 02141-05127.

02142-05127

$1.97

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

NUT This part replaces 08311-11058.

08310-00057

$1.84

14

BOLT This part replaces 01112-06128.

01500-06127

$1.97

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER | 10.5x25x1.5

09160-10041

Unavailable

18

WASHER | 10.5x25x1.5

09160-10041

Unavailable

19

SPACER

09180-10026

Unavailable

20

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

21

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

22

NUT This part replaces 08312-31108.

08310-00107

$2.19

23

GUARD, NUD

63411-29000

Unavailable

24

SCREW

02141-05108

Unavailable

25

WASHER

09160-05013

$1.49

26

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

27

NUT This part replaces 08311-11058.

08310-00057

$1.84
