Partiron

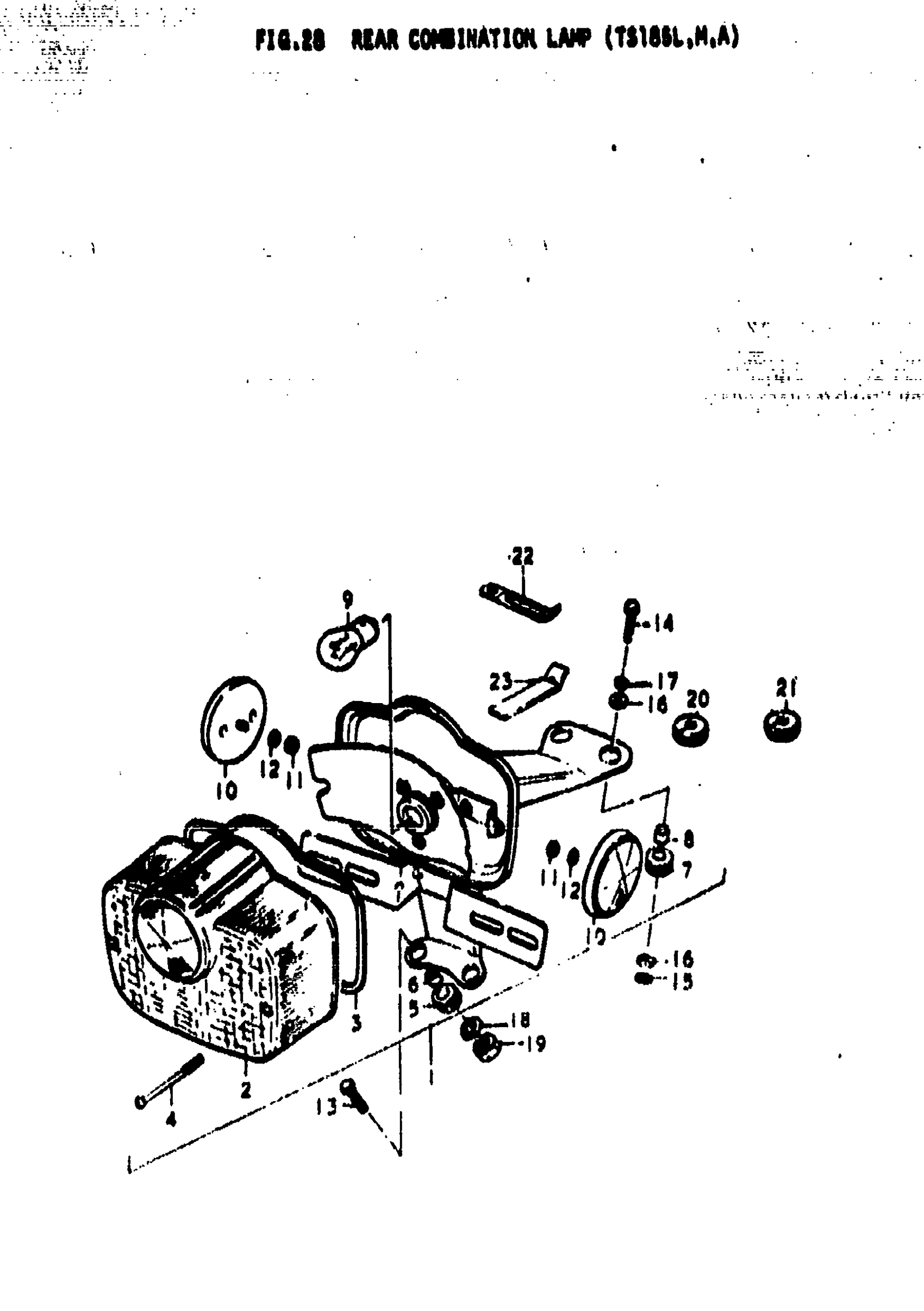

Suzuki TS185 (1976) REAR COMBINATION LAMP (TS185L Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 9 This part replaces 35710-25681.

35710-25681-999

Unavailable

2

LENS RR COMB LA This part replaces 35712-27630.

35712-23011

$59.80

3

GASKET

35713-27630

$6.30

4

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

5

CUSHION

35765-15010

Unavailable

6

SPACER This part replaces 35766-15010.

35766-37110

$5.28

7

CUSHION

35765-22210

$3.84

8

SPACER This part replaces 35766-22210.

35766-37120

Unavailable

9

BULB | 6V, 32/3CP

09471-06030

Unavailable

10

REFLEX REFLECTOR, REAR | L,M

35970-31610

Unavailable

10

REFLEX REFLECTOR, REAR | A

35970-15010

Unavailable

11

NUT This part replaces 08311-11058.

08310-00057

$1.84

12

LOCK WASHER | L,M This part replaces 08321-21058.

08321-0105A

$1.84

13

BOLT This part replaces 01112-06208.

01500-06207

$2.28

14

BOLT This part replaces 01112-06258.

01500-06257

$1.97

15

LOCK WASHER | LM,A This part replaces 08321-21068.

08321-01067

$2.13

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

LOCK WASHER | L This part replaces 08323-21068.

08323-31068

Unavailable

18

WASHER (6.5X20X1.6) | L,M; 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

18

WASHER (6.5X20X1.2) | A; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

19

.NUT This part replaces 08311-11068.

08310-00067

$2.13

20

GROMMET, NO.1 | L,M

09308-07005

Unavailable

21

GROMMET, NO.2 | L,MA

09308-07002

$2.12

22

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

23

CLAMP | L This part replaces 09403-00069.

09404-06037

Unavailable
