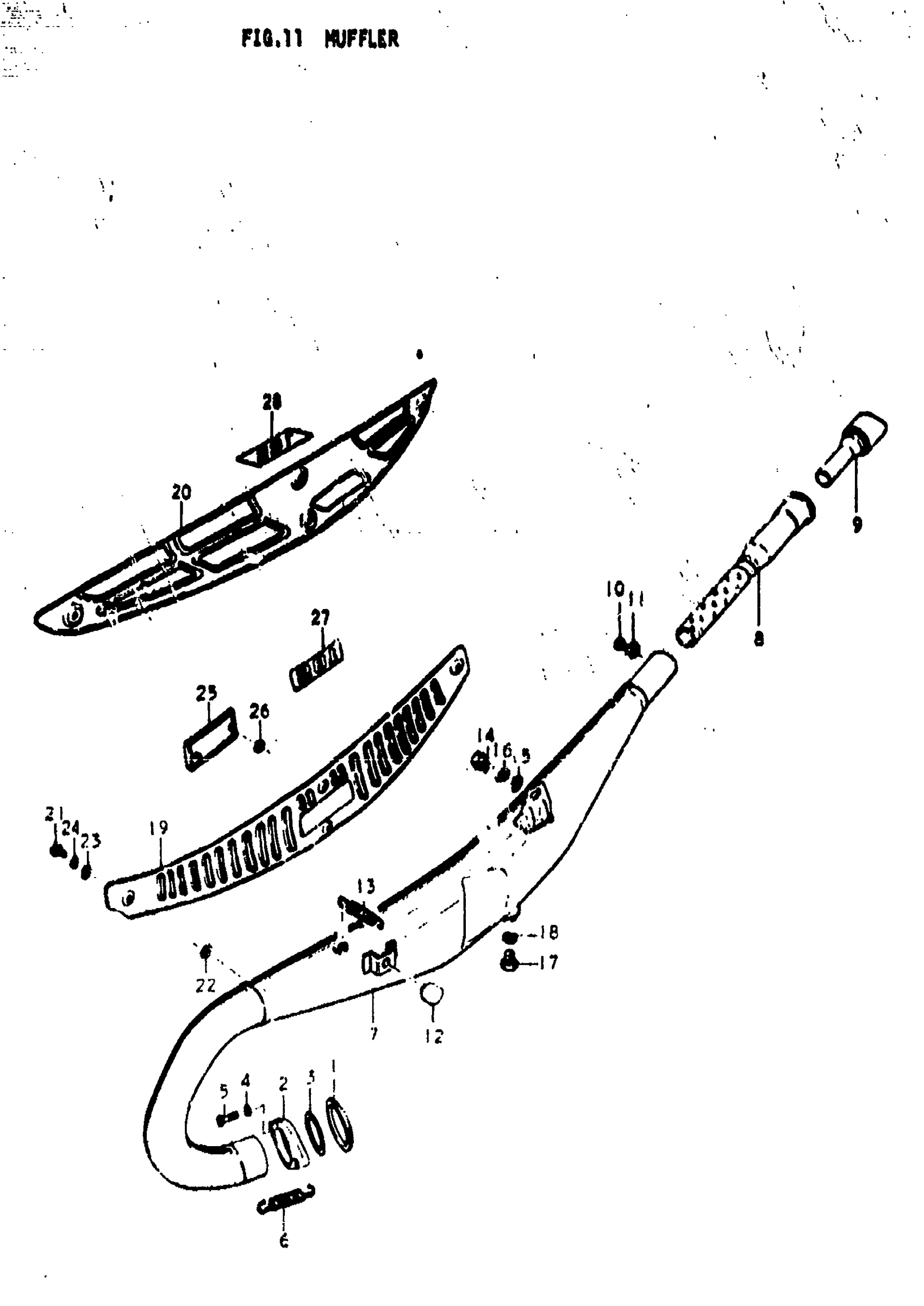

Suzuki TS185 (1976) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE | 45x50.5x4.8 RESIN

14181-28080

$10.11

2

CLAMP, EXHAUST PIPE | K,M,A

14182-28000

$16.49

3

CUSHION,EXH PIP | 39x46x2 This part replaces 14184-28010.

14184-28011

$4.62

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

BOLT This part replaces 01112-06258.

01500-06257

$1.97

6

SPRING

09443-11002

$3.10

7

MUFFLER ASSY | K; TO 14301-29603

14301-29602

Unavailable

7

NO DESCRIPTION AVAILABLE | K,L,M; F.NO.82768~TO 14301-29660 This part replaces 14301-29603.

14301-29650-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | A; Includes Item(s) 8 - 11 This part replaces 14301-29660.

14301-29650-H01

Unavailable

8

ARRESTOR, SPARK | K

14810-29602

Unavailable

8

ARRESTOR, SPARK | F.NO.82708~

14810-29603

Unavailable

9

TUBE, CLEAN OUT | K

14850-29601

Unavailable

9

TUBE, CLEAN OUT | F.NO.82768~

14850-27600

Unavailable

10

SCREW | K This part replaces 02111-05087.

02112-05087

$1.49

10

SCRW | F.NO.82768~

09128-06013

$1.49

11

LOCK WASHER | K This part replaces 08321-21058.

08321-0105A

$1.84

11

LOCK WASHER | F.NO.82768~ This part replaces 08321-21068.

08321-01067

$2.13

12

CUSHION

09321-10002

$2.22

13

SPRING

09443-11002

$3.10

14

PLUG, DRAIN This part replaces 01122-08168.

01500-0816B

$2.50

15

WASHER (8.5X18X2.0) | 8.5x18x2 This part replaces 09160-08013.

09160-08120

$2.19

16

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$2.13

17

BOLT(10X9) | 10x9 This part replaces 09100-10004.

09128-10002

$1.70

18

GASKIST | 10x14.2x7

09168-10002

$2.13

19

COVER, MUFFLER | K,L,M; TO 14781-29610 This part replaces 14781-29600.

14781-29610

Unavailable

20

COVER, MUFFLER | A

14781-29610

Unavailable

21

SCREW | K,L,M This part replaces 02112-06128.

02112-06127

$1.84

21

SCREW | A This part replaces 02112-06108.

02112-06107

$1.49

22

GASKET,MUFFLER | 6.3x12x1.5 This part replaces 09168-06005.

09168-06105

$2.12

23

.WASHER | K,L,M This part replaces 08322-11068.

08322-0106B

$2.26

24

LOCK WASHER This part replaces 08321-21060.

08321-01067

$2.13

25

EMBLEM | K,L

14799-29600

Unavailable

26

NUT | K,L This part replaces 09148-03004.

09148-03011

$1.96

27

EMBLEM | M

14799-29601

Unavailable

28

EMBLEM | A

14799-29602

Unavailable
