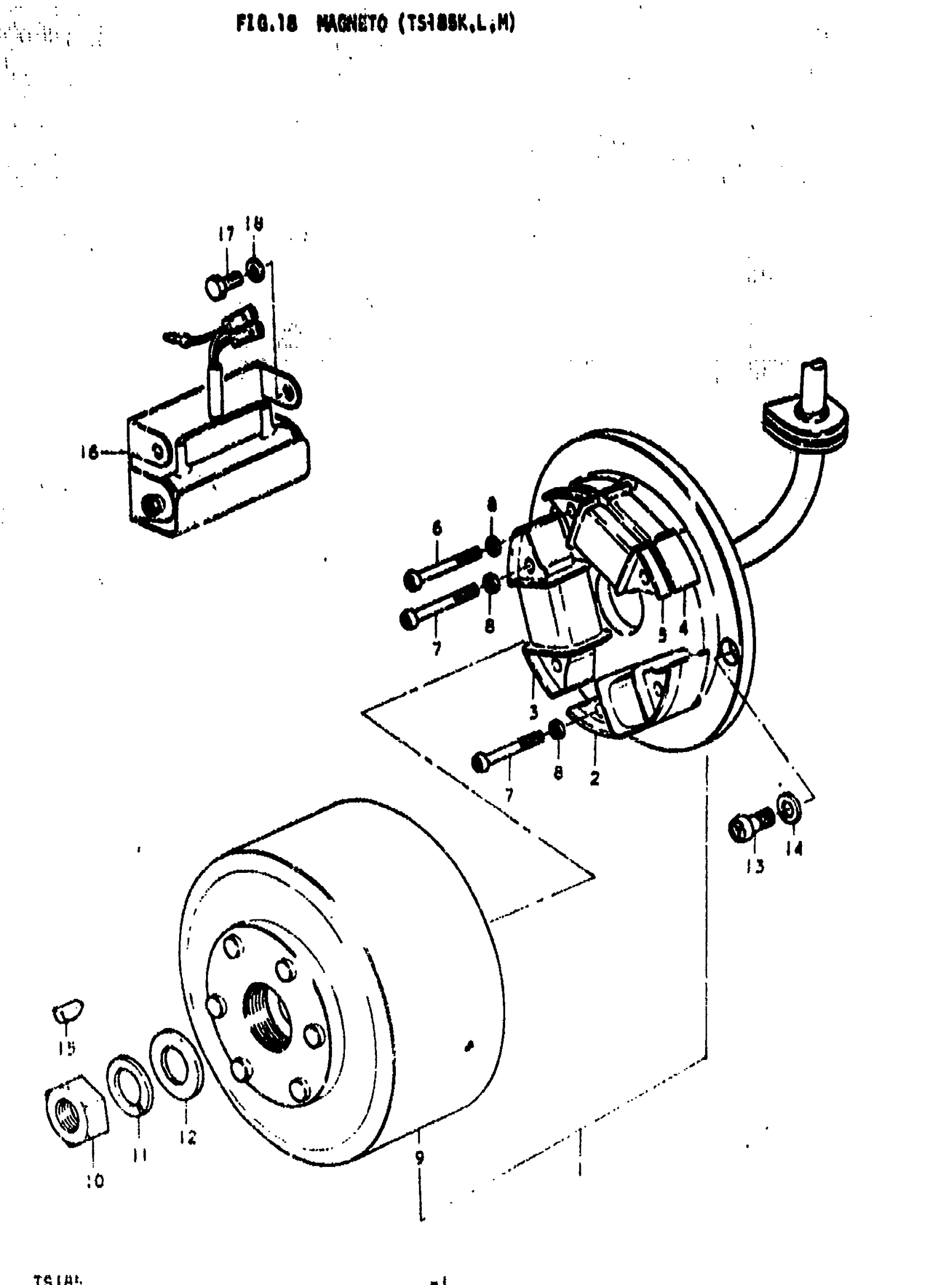

Suzuki TS185 (1976) MAGNETO (TS185K Diagram

#

Description
Price

1

MAGNETO ASSY | Includes Item(s) 2 - 9

32100-29611

Unavailable

2

COIL, CHARGING

32120-29611

Unavailable

3

COIL, LIGHTING

32130-29611

Unavailable

4

COIL, PRIMARY This part replaces 32140-32020.

32140-32021

$152.07

5

COIL, PULSER

32150-32020

$130.87

6

SCREW This part replaces 02111-05357.

02112-05357

$1.49

7

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

ROTOR, FLYWHEEL | FROM 32102-29611

32102-29612

Unavailable

10

NUT

09140-14011

Unavailable

11

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

$2.10

12

WASHER | 14x27x3

09160-14015

Unavailable

13

SCREW This part replaces 02112-05168.

02112-05167

$1.97

14

WASHER This part replaces 08322-21058.

08322-01057

$2.13

15

KEY This part replaces 08341-31049.

09420-04008

$3.42

16

RESISTOR ASSY, MEGNETO

36500-29610

Unavailable

17

BOLT This part replaces 01112-06108.

01500-06107

$2.06

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
