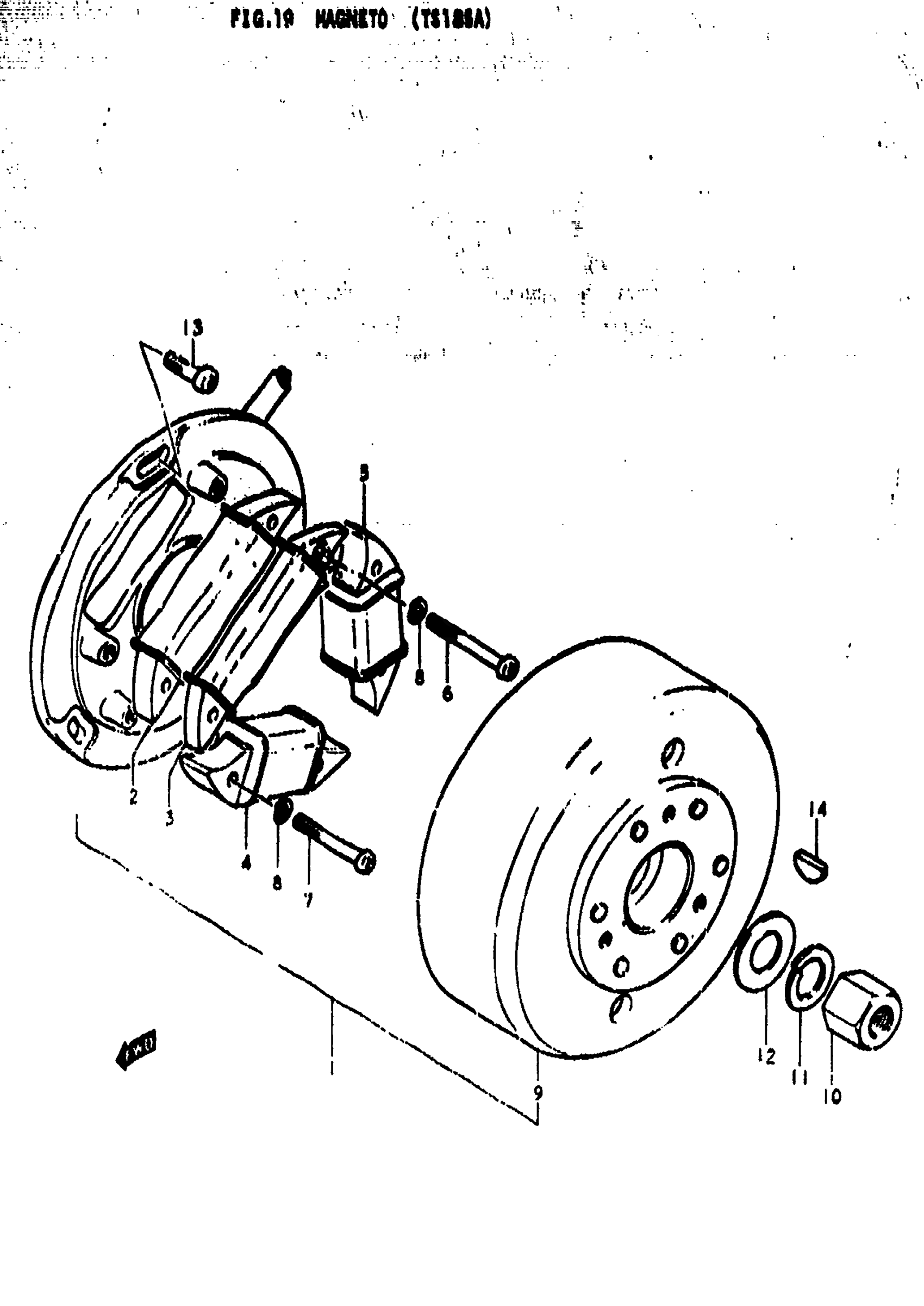

Find the part on the Magneto diagram for your 1976 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki TS185 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAGNETO ASSY | Includes Item(s) 2 - 9

32100-29614

1
Out of stock

2

1

$169.22

In stock

3

COIL, PULSER

32150-32020

1

$145.63

In stock

4

COIL, CHARGING This part replaces 32130-29612.

32130-30620

1
Out of stock

5

COIL, LIGHTING

32120-29612

1
Out of stock

6

4

$1.61

In stock

7

2

$2.12

In stock

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

6
Out of stock

9

MOTOR

32102-29613

1
Out of stock

10

NUT

09140-14011

1
Out of stock

11

1

$2.29

In stock

12

WASHER | 14x27x3

09160-14015

1
Out of stock

13

SCREW

09139-05011

3

$2.58

In stock

14

KEY This part replaces 08341-31049.

09420-04008

1
Out of stock
