1976 Suzuki TS185 Headlamp Diagram

← All diagrams

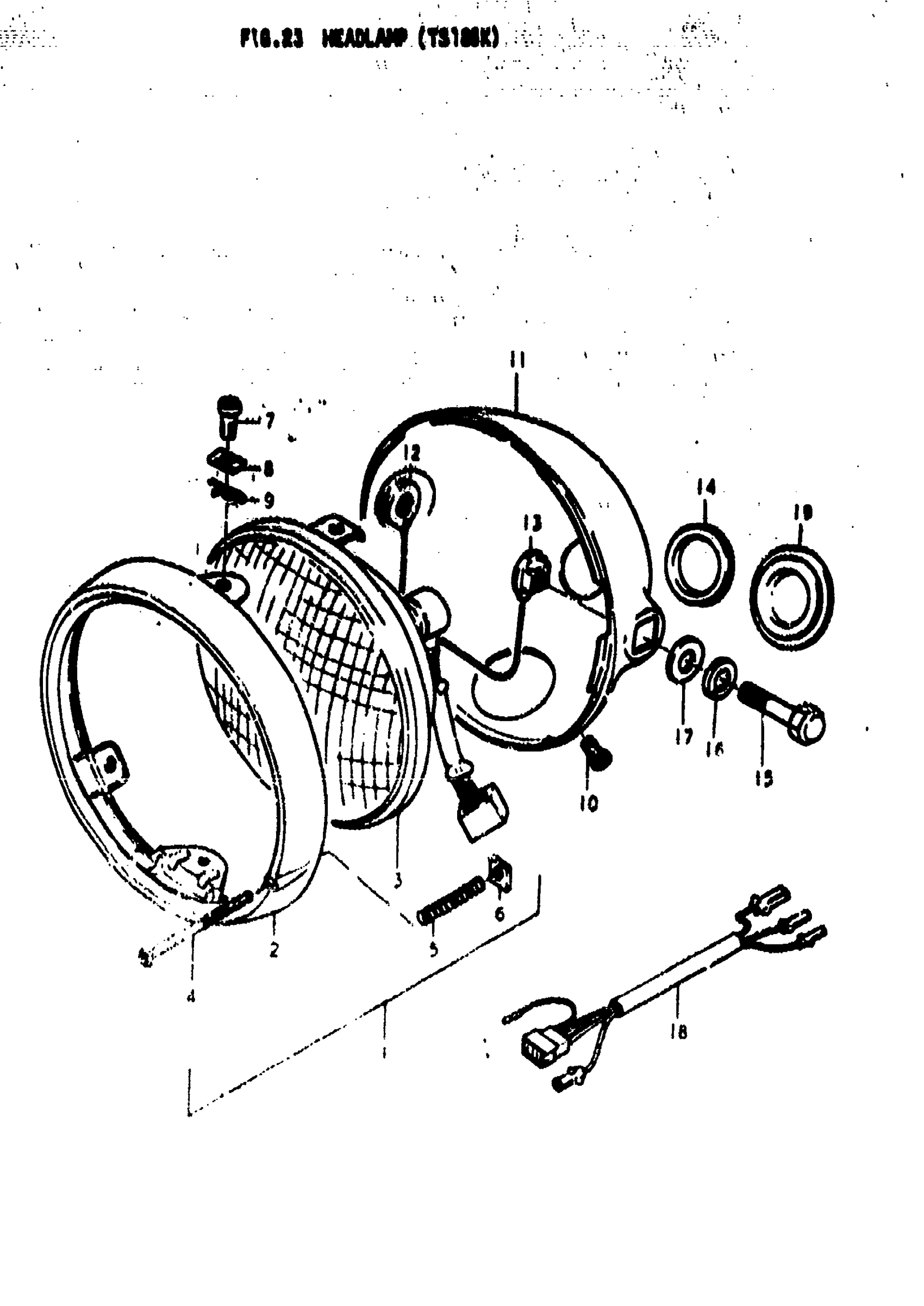

Find the part on the Headlamp diagram for your 1976 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki TS185 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 9

35100-27630

1
Out of stock

2

RIM

35111-27630

1
Out of stock

3

UNIT | 6V,25/25W

35121-27630

1
Out of stock

4

SCREW This part replaces 35151-27630.

35151-45230

1
Out of stock

5

SPRING

35154-27630

1
Out of stock

6

NUT This part replaces 35155-27630.

35135-45600

1
Out of stock

7

SCREW

35136-19610

2
Out of stock

8

NUT This part replaces 35135-12610.

35155-48510

2
Out of stock

9

SPRING

35137-27620

2
Out of stock

10

SCREW This part replaces 02231-05128.

02122-05127

2
Out of stock

11

HOUSING, HEADLAMP

51810-30000

1
Out of stock

12

SPRING, RH | TO 51821-29001 USED WITH 51827-29001

51821-29000

—
Out of stock

13

SPACER, LH | TO 51822-29001 USED WITH 51827-29001

51822-29000

—
Out of stock

14

GROMMET | FROM 51845-31030

51845-31031

1
Out of stock

15

BOLT This part replaces 01122-08258.

01500-08257

2
Out of stock

16

2

$2.28

In stock

17

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

18

LEAD WIRE, HEADLAMP

36852-30000

1
Out of stock

19

CAP

09250-40001

1
Out of stock
