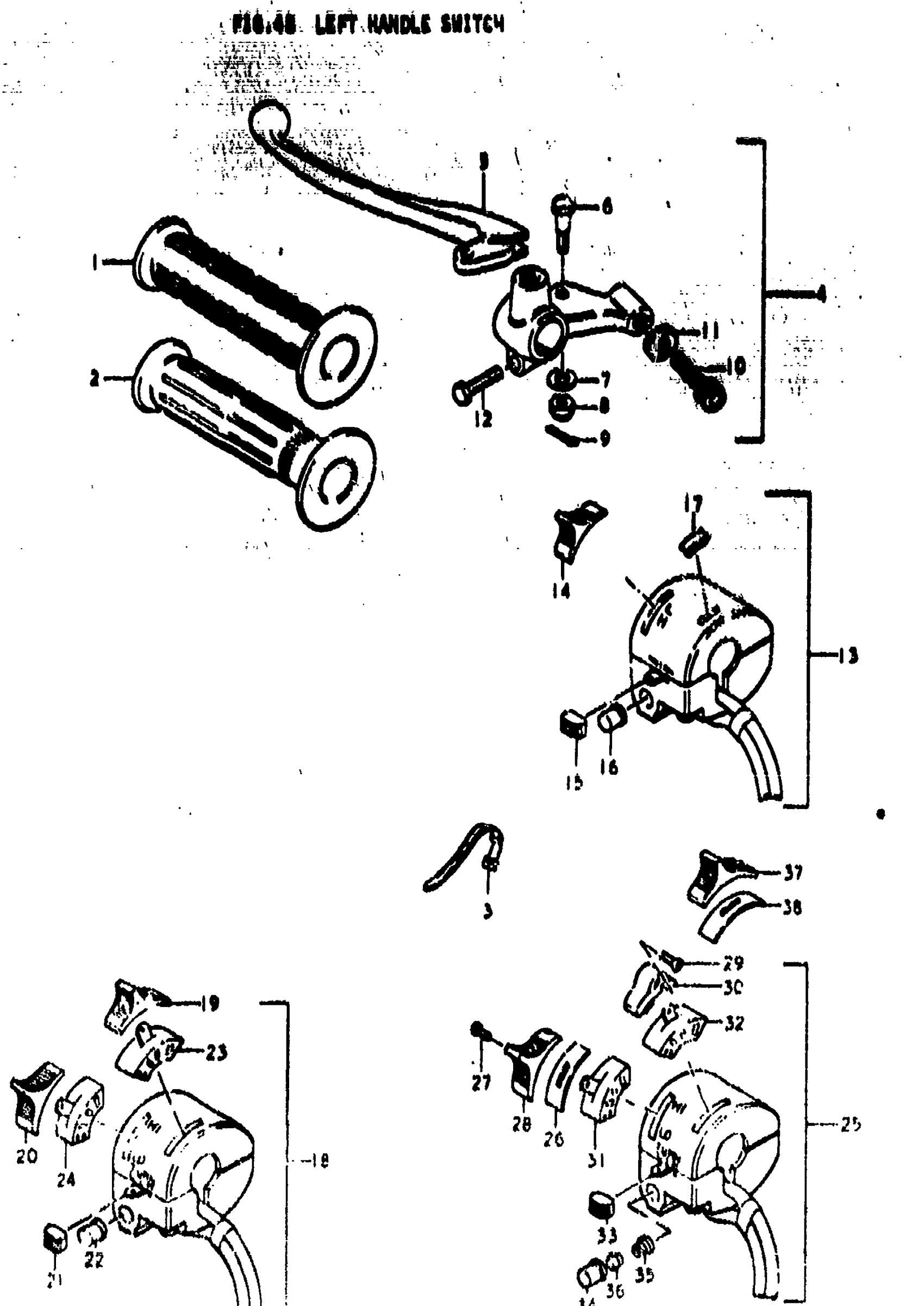

Suzuki TS185 (1976) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH | K,L,M

57211-15110

Unavailable

2

GRIP, LH | A

57211-28600

$16.32

3

BAND | K,L,M; L:120A; L:120

09407-12402

$3.04

4

LEVER ASSY, CLUTCH | K,L; TO 57500-26012 USED WITH 56741-31700

57500-18610

Unavailable

4

LEVER ASSY, CLUTCH | M,A; FROM 57300-26012; Includes Item(s) 5 - 12 This part replaces 57500-26013.

57500-30501

Unavailable

5

LEVER, CLUTCH | FROM 57620-31010

57620-45010

Unavailable

6

BOLT This part replaces 57431-11010.

57431-11013

$6.31

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

NUT

57433-11010

$5.64

9

PIN This part replaces 04111-16158.

04111-1620A

$1.49

10

ADJUSTER, CABLE

57441-26010

$4.48

11

NUT

57442-11010

$2.79

12

BOLT This part replaces 01112-06208.

01500-06207

$2.28

13

SWITCH ASSY, HANDLE LH | K; FROM 57700-28610; Includes Item(s) 14 - 17

57700-28611

Unavailable

14

KNOB, DIMMER SWITCH | K; FROM 57712-28050

57712-28051

Unavailable

15

KNOB, TURN SIGNAL SWITCH | K

57742-28050

Unavailable

16

BUTTOM, HORN | K

57751-28050

Unavailable

17

CAP | K

57715-28610

Unavailable

18

SWITCH ASSY, HANDLE LH | L; TO 57700-28631

57700-28630

Unavailable

18

SWITCH ASSY, HANDLE LH | M; TO 57700-28632; Includes Item(s) 19 - 24

57700-28631

Unavailable

19

KNOB, LIGHTING SWITCH | L,M; FROM 57712-28050

57712-28051

Unavailable

20

KNOB, LIGHTING SWITCH | L,M

57713-28050

Unavailable

21

KNOB, TURN SIGNAL | L,M

57742-28050

Unavailable

22

BUTTON, HORN | L,M

57781-28050

Unavailable

23

BLOCK, LIGHTING SWITCH | L,M

57730-28630

Unavailable

24

BLOCK, DIMMER SWITCH | L; TO 57530-28051M

57530-28051

Unavailable

25

SWITCH ASSY, HANDLE LH | A; Includes Item(s) 26 - 36

37400-28660

Unavailable

26

PLATE, DIMMER SWITCH | A This part replaces 57719-28050.

37422-28450

Unavailable

27

SCREW | A This part replaces 03221-03088.

03221-0308B

$2.10

28

KNOB, DIMMER | A

57713-28050

Unavailable

29

SCREW | A

03231-03108

Unavailable

30

KNOB, STOP | A

37414-28660

Unavailable

31

BLOCK, DIMMER SWITCH | A

57530-28051

Unavailable

32

BLOCK, LIGHTING SWITCH | A

57730-28631

Unavailable

33

KNOB, TURN SIGNAL | A

57742-28050

Unavailable

34

BUTTON, HORN | A

57751-28050

Unavailable

35

SPRING | A

57761-28050

Unavailable

36

PLATE | A

37522-28050

Unavailable

37

KNOB, LIGHTING | A; OPT

57712-28052

Unavailable

38

NO DESCRIPTION AVAILABLE | A; OPT This part replaces 57714-28051.

37412-28450

Unavailable
