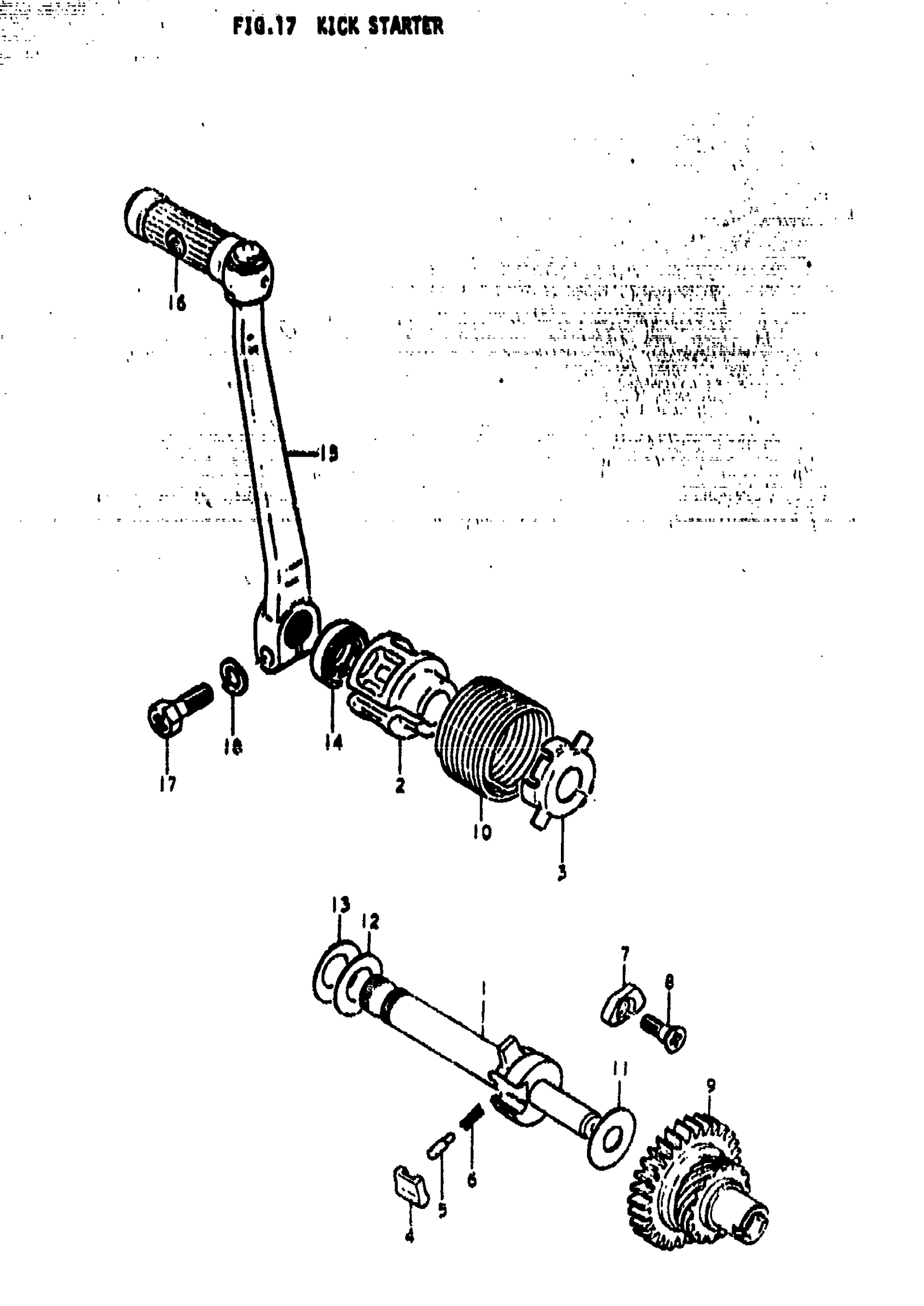

Suzuki TS185 (1976) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-25000

Unavailable

2

GUIDE, SPRING

26221-25030

Unavailable

3

HOLDER, SPRING

26222-25000

Unavailable

4

PAWL, KICK STARTER

26231-20000

$7.74

5

PIN

09209-05011

$2.20

6

SPRING

09440-04010

$1.54

7

LIFTER, PAWL

26232-01000

$6.38

8

SCREW

09139-06092

$2.83

9

GEAR, KICK STARTER DRIVE | K,L; NT:31/15 TO 26240-28002 USED WITH 08211-12302 This part replaces 26240-28001.

26240-28002

Unavailable

9

GEAR, KICK STARTER DRIVE | M,A; NT:31/15

26240-28002

Unavailable

10

SPRING

09448-48001

Unavailable

11

WASHER | M,A; 12x30x1.5

08211-12302

$2.16

12

WASHER | 16x30.5x0.5

09160-16016

$2.04

13

WASHER | 16x30.5x1.5

09164-16001

$2.12

14

SEAL,OIL(16X30X This part replaces 09285-16002.

09285-16005

$2.75

15

LEVER ASSY, KICK STARTER | K; TO 26300-29002 USED WITH 01122-08458 AND 09180-08001

26300-29001

Unavailable

15

LEVER ASSY,KICK | L,M,A; FROM 26300-29002; Includes Item(s) 16 This part replaces 26300-12002.

26300-29004

$61.90

16

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

17

BOLT This part replaces 01122-08258.

01500-08257

$2.50

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
