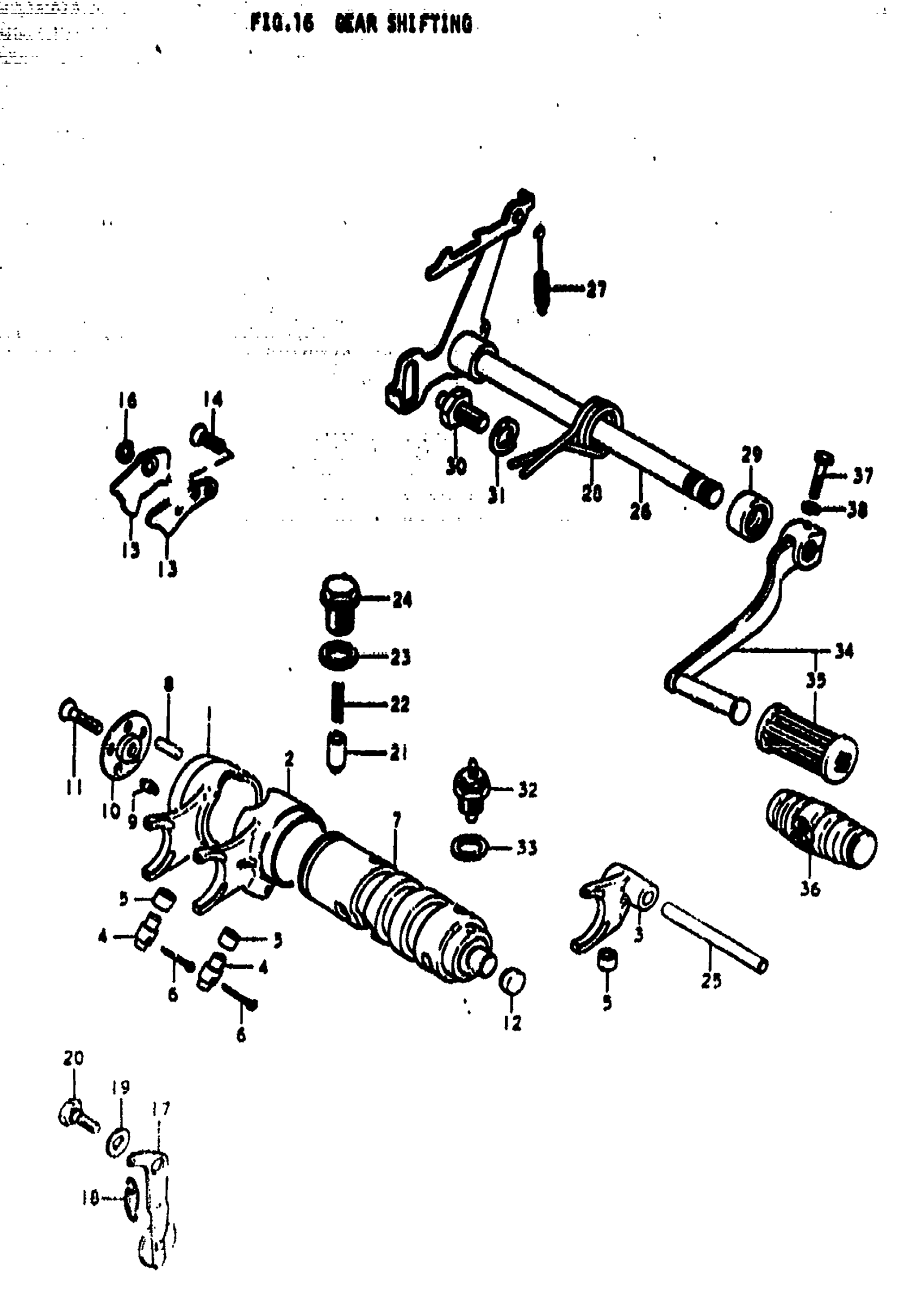

Suzuki TS185 (1976) GEAR SHIFTING Diagram

#

Description
Price

1

FORM, GEAR SHIFTING NO.1

25211-25001

Unavailable

2

FORK,GEAR SHIFT This part replaces 25221-28001.

25221-28002

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-28001

Unavailable

4

PIN | K,L,M; TO 09209-10002

09209-10003

Unavailable

4

PIN | A

09209-10002

Unavailable

5

ROLLER | 6x9.8x6 This part replaces 09180-06004.

09180-06086

$2.50

6

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

7

CAM, GEAR SHIFTING | K; TO 25310-28700

25310-28000

Unavailable

7

CAM, GEAR SHIFTING | L,M,A; FROM 25310-28700

25310-28701

Unavailable

8

ROLLER (4X13.8)

09261-04002

$1.72

9

PIN | K,L; TO 09209-04012

09209-04006

Unavailable

9

PIN | M,A; Includes Item(s) 10

09209-04012

$2.53

10

RETAINER, DRIVE PIN

25322-28030

Unavailable

11

SCREW This part replaces 02122-06208.

02122-0620A

$1.49

12

PLUG

09243-12002

Unavailable

13

GUIDE, CAM

25340-12101

Unavailable

14

SCREW This part replaces 02122-06168.

02122-06167

$1.49

15

PAWL, CAM STOPPER | FROM 25370-12100

25370-12101

Unavailable

16

E RING | K,L This part replaces 08332-11059.

08332-1105A

$1.78

17

STOPPER, CAM NO.1 | FROM 25350-28000

25350-28001

Unavailable

18

SPRING

09443-07014

$2.22

19

WASHER | 6.5x16x2.3

09160-06022

Unavailable

20

BOLT

09111-06003

Unavailable

21

STOPPER, SELECT CAM This part replaces 25351-18000.

25351-39300

$10.23

22

SPRING

09440-05018

$1.84

23

GASKET | 15.7x19.3x2

09168-14004

$1.83

24

HOLDER, STOPPER This part replaces 25352-11000.

25352-11010

$7.22

25

SHAFT, GEAR SHIFTING

25411-05100

$5.50

26

NO DESCRIPTION AVAILABLE This part replaces 25510-28000.

25510-28001

Unavailable

27

SPRING

09443-08008

$2.50

28

SPRING

09444-26008

$5.12

29

OIL SEAL

09285-12004

$6.24

30

STOPPER, ARM

25671-19000

Unavailable

31

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

32

SWITCH, GEAR SHIFTING

37710-28000

Unavailable

33

GASKET | 12.5x20x1

09168-12001

Unavailable

34

LEVER ASSY, GEAR SHIFTING | K; TO 25600-05104 This part replaces 25600-29001.

25600-05104

Unavailable

34

LEVER ASSY, GEAR SHIFTING | L,M,A; Includes Item(s) 35 - 36

25600-05104

Unavailable

35

.RUBBER,GEAR SHIFT PEDAL | K This part replaces 25652-03201.

25652-16510

$3.74

36

.RUBBER,GEAR SHIFT PEDAL | L,M,A This part replaces 25652-16500.

25652-16510

$3.74

37

BOLT This part replaces 01112-06208.

01500-06207

$2.28

38

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
