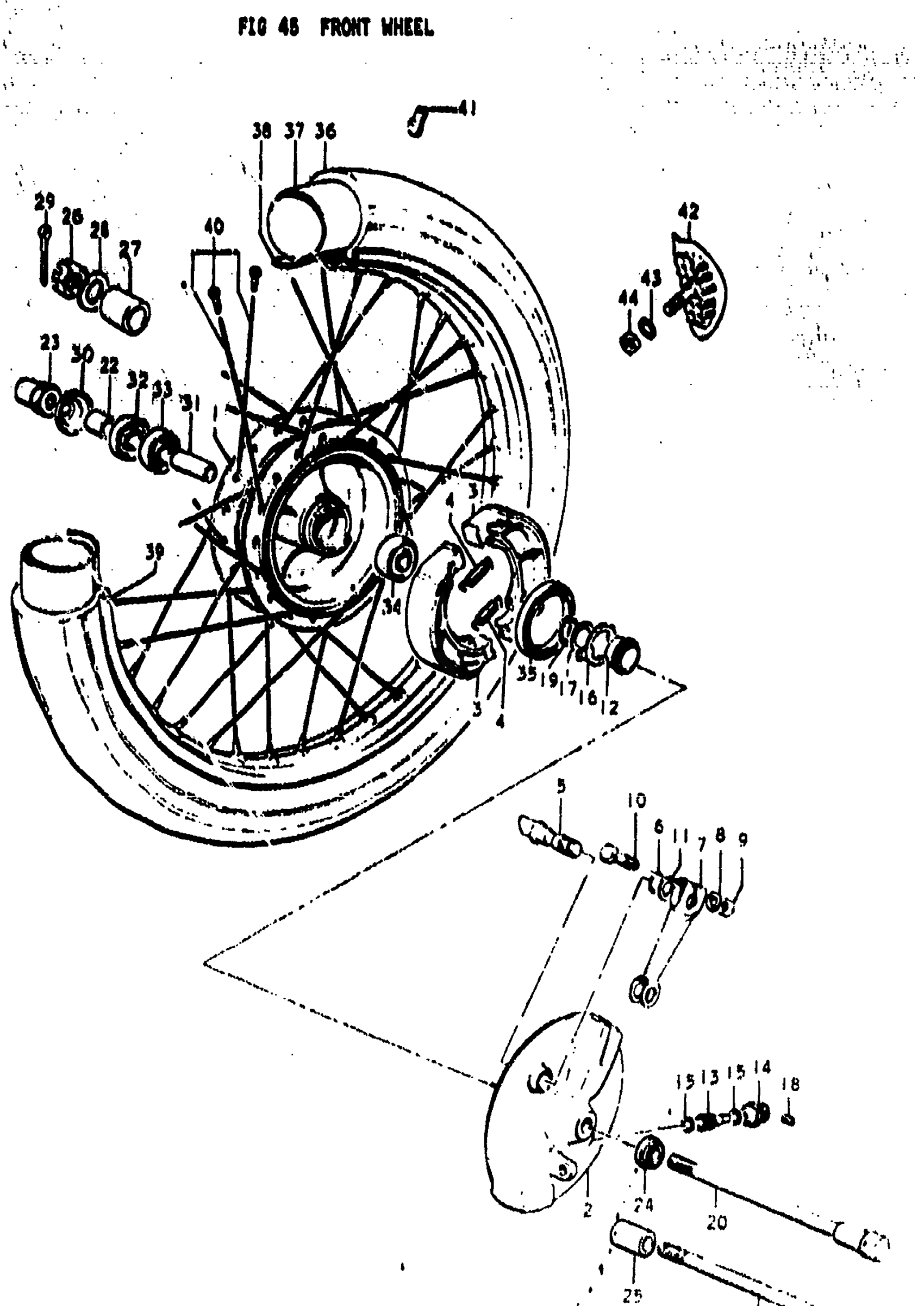

Suzuki TS185 (1976) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K This part replaces 54110-28001.

54110-28003

Unavailable

1

HUB, FRONT WHEE | L,M,A; TO 54110-07002 USED WITH 09180-12032 This part replaces 54110-07001.

54110-07003

Unavailable

2

PANEL, BRAKE ANCHOR | K

54210-28002

Unavailable

2

PANEL, BRAKE ANCHOR | L,M,A

54210-28400

Unavailable

3

SHOE/SPRING SET | K; TO 586610-01005 This part replaces 54410-01004.

54400-35860

$36.32

3

SHOE SET, BRAKE | L; TO 54418-07002 This part replaces 54410-07001.

54401-07810

Unavailable

3

SHOE SET, BRAKE | M,A This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING | K,L,M,A This part replaces 09443-07001.

09443-07025

$2.08

5

SHAFT, BRAKE CAM | K; TO 54441-01002

54441-28000

Unavailable

5

SHAFT, BRAKE CAM | L; TO 54441-01002

54441-07001

Unavailable

5

SHAFT, BRAKE CAM | M,A

54441-01002

$18.80

6

DUST SEAL

09280-12001

$2.90

7

LEVER, BRAKE CAM | K; TO 54451-03002 This part replaces 54451-03601.

54451-03002

$16.87

7

LEVER, BRAKE CAM | L,M,A

54451-28400

Unavailable

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

BOLT, ADJUSTER | 6x31 This part replaces 09100-06050.

09100-06150

$2.30

11

WASHER

09160-12011

$1.54

12

NO DESCRIPTION AVAILABLE | K This part replaces 54611-28001.

54611-28002

Unavailable

12

GEAR, SPEEDOMETER (NT:27) | L,M,A This part replaces 54611-28401.

54611-28402

Unavailable

13

NO DESCRIPTION AVAILABLE | K This part replaces 54621-28000.

54621-28001

Unavailable

13

PINION, SPEEDOMETER (NT:9) | L,M,A This part replaces 54621-28400.

54621-28401

Unavailable

14

BUSHING

54632-01001

$12.80

15

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

16

DRIVER

54661-07000

$4.52

17

WASHER | 8.5x24x1

09160-18002

$2.38

18

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

19

CIRCLIP

08331-11189

Unavailable

20

AXLE, FRONT | K

54711-28000

Unavailable

20

AXLE, FRONT | L; L:172

54711-28401

Unavailable

20

AXLE, FRONT | L; L:198 This part replaces 54711-28402.

54711-28303

Unavailable

21

AXLE, FRONT | M,A

54711-28303

Unavailable

22

SPACER | 12x18x16.5

09180-12040

$8.35

23

NUT | L

54721-36000

Unavailable

24

SPACER, LH | L

54751-25500

Unavailable

25

SPACER, LH | M,A

09180-12062

Unavailable

26

NUT | L,M,A This part replaces 08314-31128.

08314-3112A

$2.41

27

SPACER | L,M,A

09180-12061

Unavailable

28

WASHER | LM,A This part replaces 08322-21128.

08322-01127

$1.84

29

PIN | L,M,A This part replaces 04111-30308.

04111-3030A

$1.49

30

COVER, FRONT HUB DUST SEAL | K; FROM 54892-28000

54892-28001

Unavailable

30

COVER, FRONT HUB DUST SEAL | L,M,A

54892-28400

Unavailable

31

SPACER (12.5X19X52) | K; 12.6x19x52 This part replaces 09180-12041.

09180-12144

$10.30

31

SPACER | L,M,A

54730-07000

Unavailable

32

SEAL,OIL (18X32X7) | K This part replaces 09284-18002.

09285-18002

$5.39

32

SEAL,OIL(17X38X | L,M,A This part replaces 09284-18001.

09284-18006

$5.10

33

BEARING | K This part replaces 08113-62010.

08113-6201B

$10.15

33

BEARING | L,M,A

08113-63010

$19.57

34

BEARING | K This part replaces 08143-62010.

08143-6201B

$10.80

34

B1 12X37X12 BEA | L,M,A This part replaces 08143-63010.

08143-6301B

$19.20

35

OIL SEAL | K This part replaces 09285-43001.

09283-43004

$14.03

35

SEAL | L,M,A; FROM 09283-48001 This part replaces 09285-48001.

09285-48002

$6.10

36

TIRE, FRONT | K; 3.00-19 SEMI-KNOBBY

55100-29600

Unavailable

36

TIRE, FRONT | L,M,A; 2.75-21 SEMI-KNOBBY

55100-28600

Unavailable

37

TUBE, INNER | K; 3.00-19

55200-29010

Unavailable

37

TIRE, FRONT | L,M,A; 2.75-21 This part replaces 55200-16510.

55200-16511

$36.73

38

PROTECTOR, WHEEL INNER TUBE FRONT | K This part replaces 55261-29010.

55261-15020

$3.15

38

PROTECTOR, INNER TUBE | L,M,A This part replaces 55261-16510.

55261-14540

$3.83

39

RIM, WHEEL | K; 1.40~19

55311-29600

Unavailable

39

RIM, WHEEL | L,M; 1.60x21

55311-28701

Unavailable

39

RIM, WHEEL | A; 1.60x21

55311-29620

Unavailable

40

NO DESCRIPTION AVAILABLE | K This part replaces 55300-28806.

55320-28020

Unavailable

40

SPOKE SET | L,M

55300-28830

Unavailable

40

SPOKE SET | A

55300-29810

Unavailable

41

BALANCER, WHEEL | L; 50G

55411-30000

Unavailable

41

BALANCER WHEEL (30G) | K; 30GL; 30G This part replaces 55412-11000.

55413-41F00

$7.50

42

STOPPER, BAND | K,L

65270-28600

$54.75

43

WASHER | K,L This part replaces 08322-11088.

08322-01087

$2.13

44

NUT | K,L This part replaces 08312-11088.

08310-00087

$2.13
