Partiron

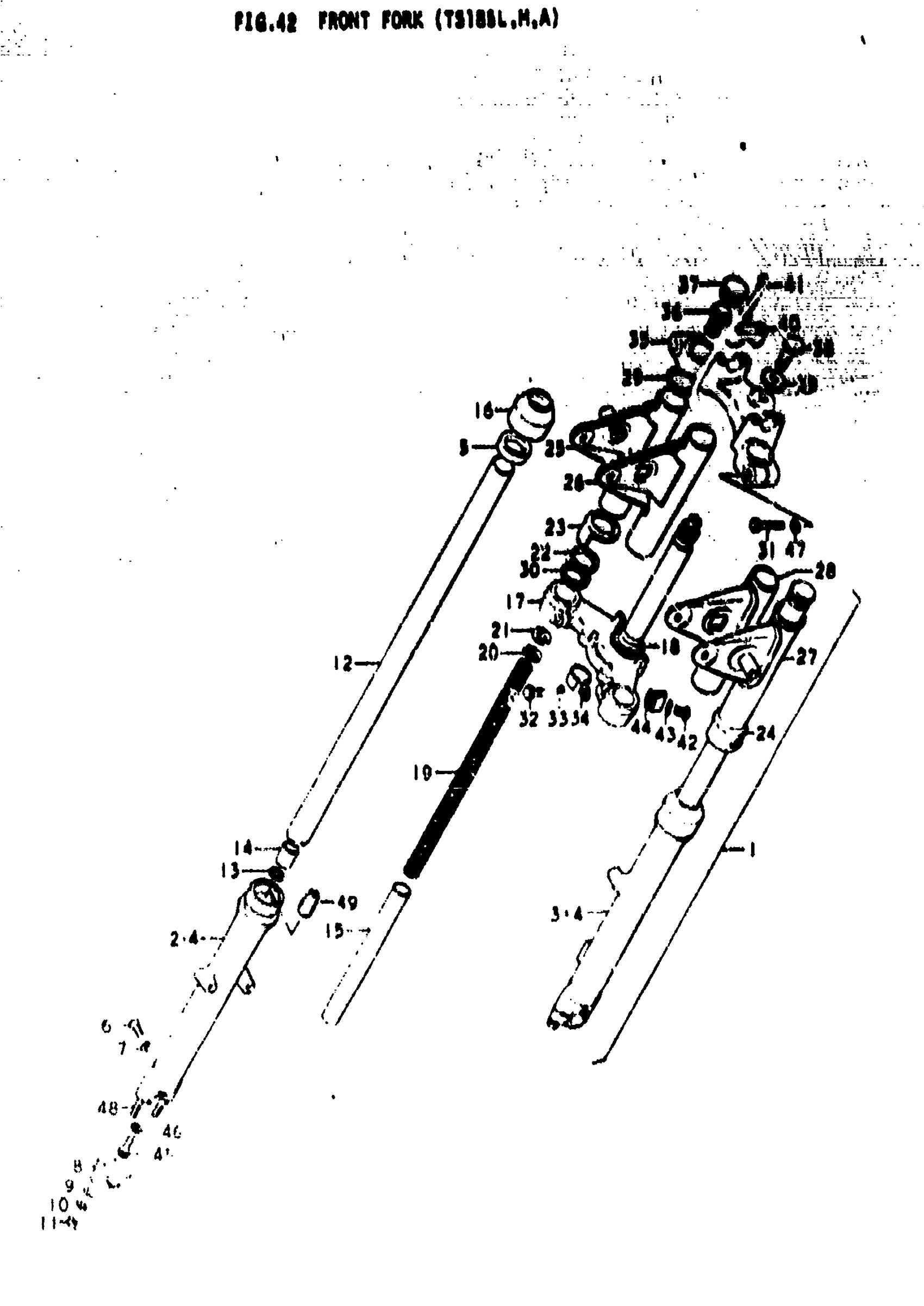

Suzuki TS185 (1976) FRONT FORK (TS185L Diagram

#

Description
Price

1

FORK ASSY, FRONT | L; TO 91100-25410-126

51100-28410-019

Unavailable

1

FORK ASSY, FRONT | M; TO 91100-28411-126

51100-28410-126

Unavailable

1

FORK ASSY, FRONT | A; Includes Item(s) 2 - 49

51100-28620-291

Unavailable

2

TUBE, OUTER RH | L; TO 01140-36011 USED WITH 01122-16511

51130-36010

Unavailable

3

TUBE, OUTER LH | L; TO 51140-36011 USED WITH @1132-16511

51140-36010

Unavailable

4

TUBE, OUTER | M,A

51140-36011

Unavailable

5

OIL SEAL

51153-08011

Unavailable

6

SCREW This part replaces 02111-04087.

02112-04087

$1.49

7

GASKET

51183-03010

$2.07

8

HOLDER, EXLE | L

51132-16510

Unavailable

8

HOLDER, EXLE | M,A

51132-16511

Unavailable

9

WASHER This part replaces 08322-21088.

08322-01087

$2.13

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

12

TUBE, INNER

51111-28410

Unavailable

13

SNAP RING

51118-28312

Unavailable

14

PISTON | L,M

51112-28310

Unavailable

14

PISTON | A

51112-28311

Unavailable

15

CYLINDER | L,M

51146-28310

Unavailable

15

CYLINDER | A

51146-28411

Unavailable

16

DUST SEAL

51173-25010

$7.19

17

STEERING STEM | L; TO 51410-28013

51410-28012

Unavailable

17

NO DESCRIPTION AVAILABLE | M,A This part replaces 51410-28013.

51410-36260

Unavailable

18

OUTER RACE

51621-33001

$16.25

19

SPRING

51171-28410

Unavailable

20

GUIDE, SPRING | L,M

51172-28010

Unavailable

21

WASHER

51186-29620

Unavailable

22

CUSHION | L

51553-07110

Unavailable

22

CUSHION, FORK COVER LOWER | M,A This part replaces 51553-25010.

51553-25210

$4.68

23

COVER, STEERING STEM RH

51554-20010

Unavailable

24

COVER, STEERING STEM LH

51557-28010

Unavailable

25

COVER, FORK RH | L; CHROME-PLATED

51530-29621

Unavailable

25

NO DESCRIPTION AVAILABLE | M This part replaces 51530-29630-126.

51500-29820-126

Unavailable

26

COVER, FORK RH | A

51530-28620-291

Unavailable

27

COVER, FORK LH | L; CHROME-PLATED

51540-29621

Unavailable

27

NO DESCRIPTION AVAILABLE | M This part replaces 51540-29630-126.

51500-29820-126

Unavailable

28

COVER, FORK LH | A

51540-28620-291

Unavailable

29

GUIDE, COVER

51551-20210

Unavailable

30

GUIDE, COVER

51558-28010

Unavailable

31

BOLT | L; TO 51431-13113

51451-15112

Unavailable

31

BOLT | M,A This part replaces 51451-15113.

01104-10388

$2.72

32

BOLT | L; TO 51451-28012

51451-28011

Unavailable

32

BOLT | M,A

51451-28012

Unavailable

33

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

34

CLIP

51455-36010

Unavailable

35

HEAD, STEERING STEM This part replaces 51311-28210-019.

51311-29320-291

Unavailable

36

CAP

51180-29010

Unavailable

37

CAP

51189-29010

Unavailable

38

BOLT This part replaces 51351-20010.

51351-29400

$31.22

39

WASHER | L,M

51356-22011

Unavailable

39

WASHER | A

51356-22012

$6.80

40

CLAMP, HANDLEBAR UPPER This part replaces 56211-27210-019.

56211-29320-291

$15.51

41

BOLT This part replaces 01221-08357.

01204-08357

$2.09

42

SCREW This part replaces 02112-06108.

02112-06107

$1.49

43

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

44

CLIP

51453-30011

Unavailable

45

BOLT

51147-36010

Unavailable

46

BASKET | L; TO 31148-34010

51148-36010

Unavailable

46

O RING | M,A This part replaces 51148-34010.

51148-36011

$3.56

47

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

48

STUD BOLT (L:30) This part replaces 51137-31010.

09108-08142

$3.18

49

PIECE, OIL LOCK | A

51195-28311

Unavailable
