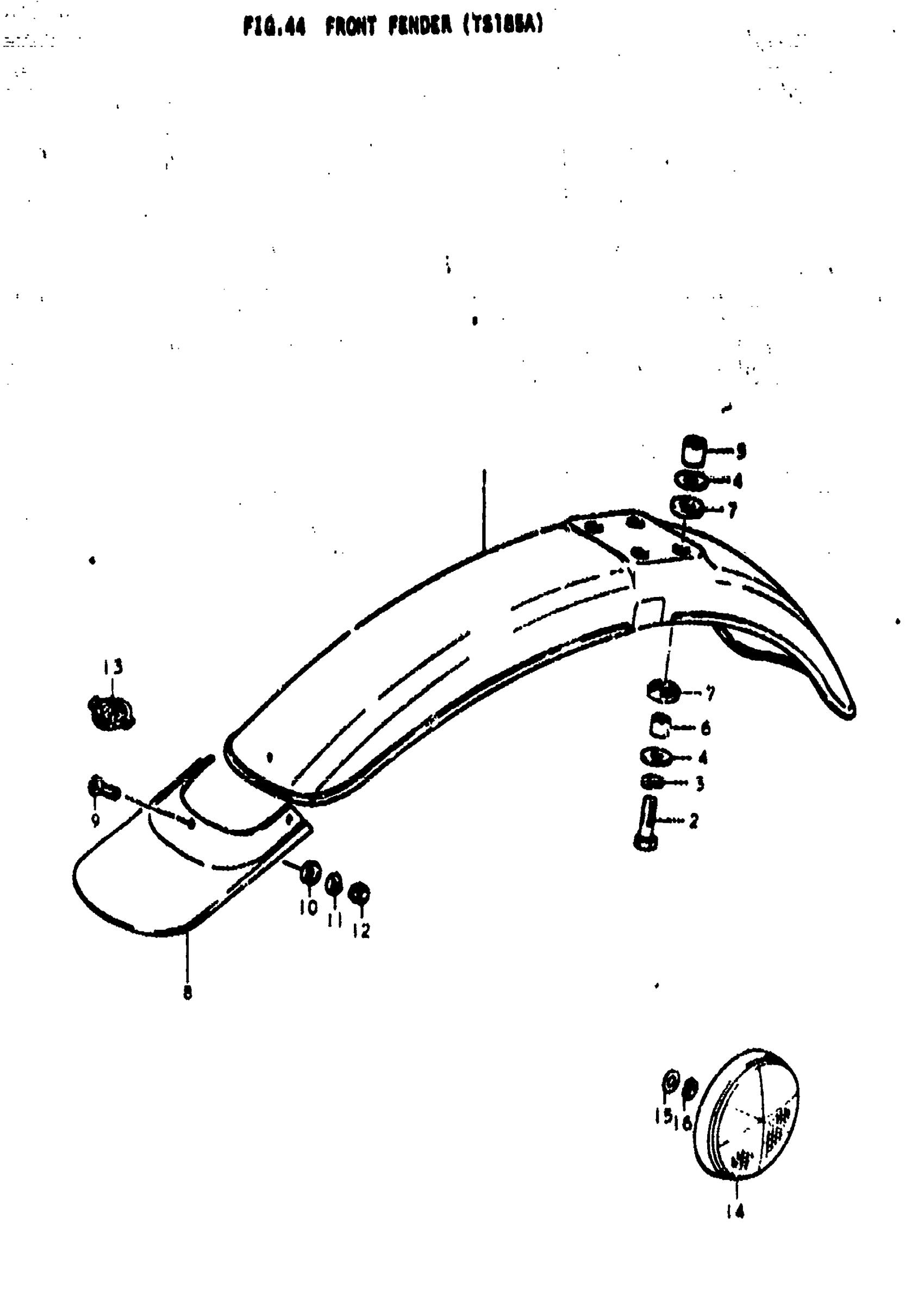

Suzuki TS185 (1976) FRONT FENDER (TS185A) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 53111-32200-189.

53111-32202-13L

Unavailable

2

BOLT This part replaces 01112-06458.

01500-0645B

$2.57

3

LOCK WASHER This part replaces 08321-21060.

08321-01067

$2.13

4

WASHER (6.5X24X1.2) | 6.5x24x1.2 This part replaces 09160-06002.

09160-06114

$2.03

5

SPACER (6.5X10X20) | 6.8x10x20 This part replaces 09180-06031.

09180-06296

$2.45

6

SPACER | 6.5x10.5x13.5 This part replaces 09180-06046.

09180-06292

$2.47

7

CUSHION

09320-10003

$2.38

8

MUD FLAP

53411-28600

Unavailable

9

SCREW This part replaces 02141-04127.

02142-04127

$1.57

10

WASHER This part replaces 08322-21048.

08322-01047

$1.86

11

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

12

NUT This part replaces 08311-11048.

08310-00047

$2.23

13

EMBLEM

99801-08810

Unavailable

14

REFLEX REFLECTOR FRONT This part replaces 35950-15010.

35950-49080

$17.24

15

WASHER This part replaces 08322-21058.

08322-01057

$2.13

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
