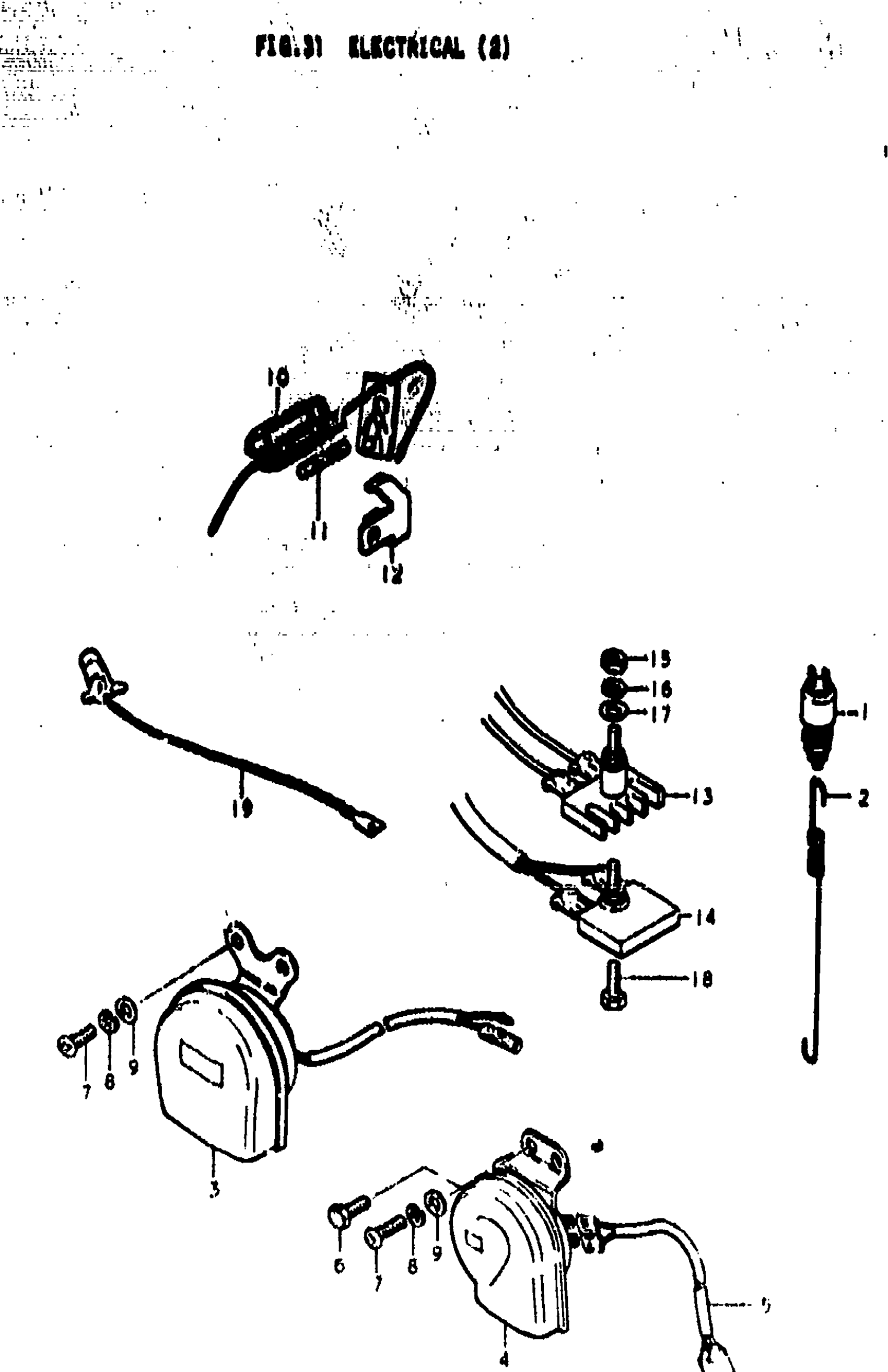

Suzuki TS185 (1976) ELECTRICAL (2) Diagram

#

Description
Price

1

SWITCH ASSY, BRAKE LAMP

37610-53011

$30.75

2

SPRING This part replaces 09443-06018.

09443-06018-XC0

Unavailable

3

HORN | K,L; TO 38500-25331 USED WITH 36670-31031 This part replaces 38500-20030.

38500-25332

Unavailable

4

HORN | M; TO 38500-25332

38500-25331

Unavailable

4

HORN | A

38500-25332

Unavailable

5

LEAD WIRE, HORN | M

36870-31030

Unavailable

6

BOLT | A This part replaces 01112-06108.

01500-06107

$2.06

7

SCREW | K,L,M This part replaces 02112-06128.

02112-06127

$1.84

8

LOCK WASHER | K,L,M This part replaces 08321-21048.

08321-0104A

$1.84

9

WASHER | K,L,M This part replaces 08322-21088.

08322-01087

$2.13

10

FUSE CASE ASSY | Includes Item(s) 11 This part replaces 36740-15010.

36740-15011

$9.38

11

FUSE | 15A

09481-15001

$2.06

12

HOLDER, FUSE CASE | L,M,A

36791-25001

Unavailable

13

RECTIFIER ASSY | K,L,M; FROM 32800-16420

32800-16421

Unavailable

14

DIODE | A; TO 32800-19065 This part replaces 32800-19061.

32800-16A00

$23.07

15

NUT | K,L,M This part replaces 08311-11058.

08310-00057

$1.84

16

LOCK WASHER | K,L This part replaces 08321-21058.

08321-0105A

$1.84

17

WASHER | K,L This part replaces 08322-21058.

08322-01057

$2.13

18

BOLT | A This part replaces 01112-05168.

01500-0516B

$2.15

19

LEAD WIRE, D.C. LIGHTING | A

36811-27610

Unavailable
