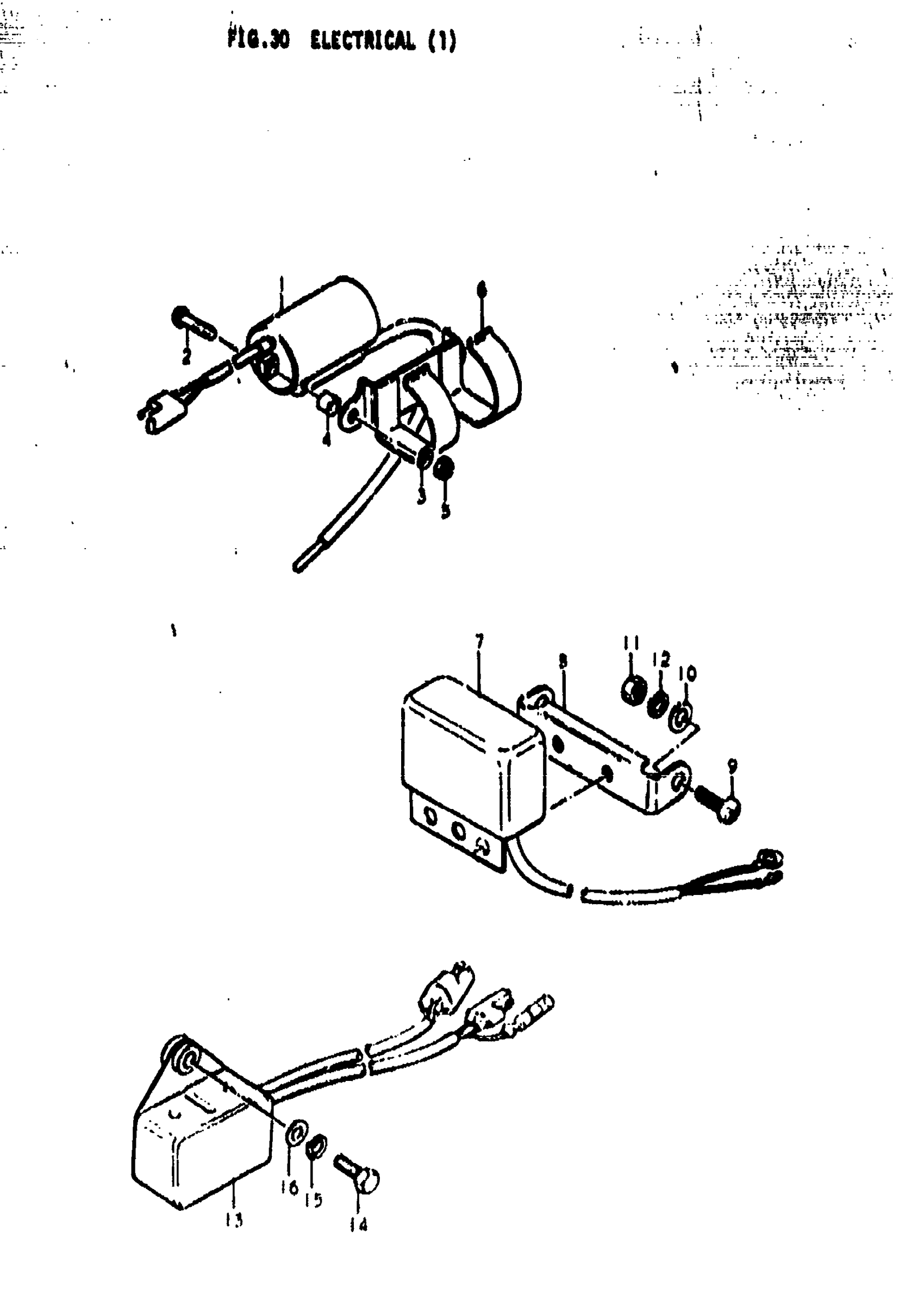

Suzuki TS185 (1976) ELECTRICAL (1) Diagram

#

Description
Price

1

COIL ASSY, IGNITION This part replaces 33410-30020.

33410-14120

$115.17

2

SCREW | K,L This part replaces 02112-05308.

02112-0530A

$2.05

2

SCREW | M,A This part replaces 02112-05208.

02112-05207

$1.97

3

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

4

SPACER | K,L; 0.5x9x10

09180-05008

Unavailable

5

NUT | K,L This part replaces 08311-11058.

08310-00057

$1.84

6

CLAMP | K

36652-30000

Unavailable

7

REGULATOR ASSY, VOLTAGE | A

32500-25600

Unavailable

8

BRACKET | A

32599-29000

Unavailable

9

SCREW | A This part replaces 02112-06128.

02112-06127

$1.84

10

WASHER | A This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT | A This part replaces 08311-11068.

08310-00067

$2.13

12

LOCK WASHER | A This part replaces 08321-21068.

08321-01067

$2.13

13

C.D.I. UNIT ASSY

31900-30020

Unavailable

14

BOLT This part replaces 09128-06006.

09128-06057

$1.65

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13
