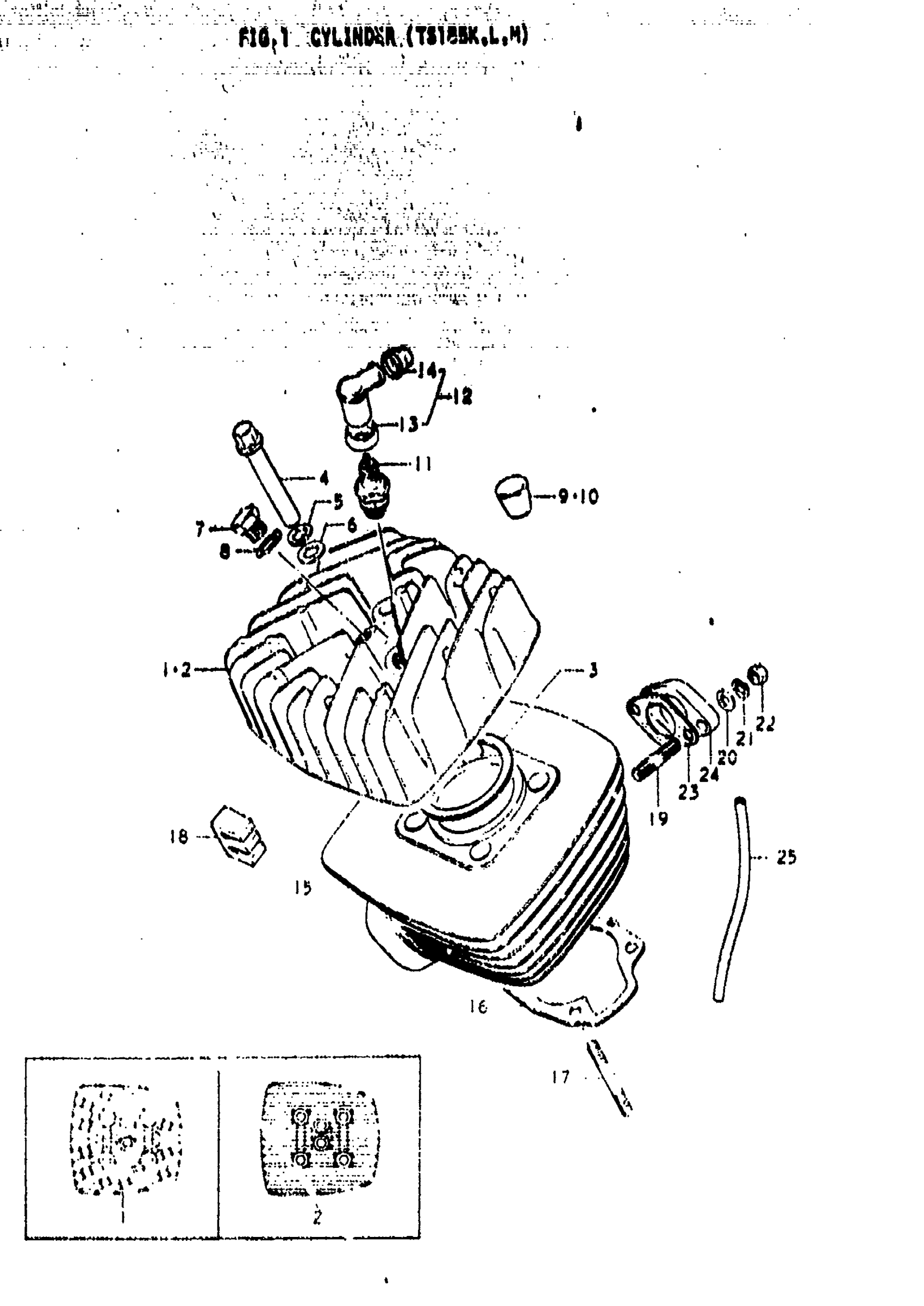

Suzuki TS185 (1976) CYLINDER (TS185K Diagram

#

Description
Price

1

CYLINDER HEAD | K

11111-29001

Unavailable

2

CYLINDER HEAD | L,M

11111-29200

Unavailable

3

GASKET, CYLINDER HEAD

11141-29000

Unavailable

4

NUT

09159-08006

$5.83

5

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

6

WASHER This part replaces 08322-11128.

08322-01127

$1.84

7

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

$2.79

8

GASKET | 15.7x19.5x2

09168-14004

$1.83

9

PAD, CYLINDER HEAD | TO 11252-25000 This part replaces 11151-25000.

11252-25000

$4.52

10

RUBBER PAD, CYLINDER HEAD NO.2 | K

11151-16400

Unavailable

11

SPARK PLUG | ND, W22FS

09482-00083

Unavailable

11

SPARK PLUG | NGK, B7HS

09482-00082

$2.98

11

SPARK PLUG B8HS | NGK, B8HS OPT This part replaces 09482-00057.

09482-00198

$2.93

12

CAP SET,SPARK P | Includes Item(s) 13 - 14 This part replaces 33500-69810.

33500-69811

$22.48

13

SEAL, SPARK PLUG

33541-69010

$4.37

14

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

15

CYLINDER | K,L; TO 11210-29001 This part replaces 11210-29000.

11210-29001

Unavailable

15

CYLINDER | M

11210-29001

Unavailable

16

GASKET,CYLINDER This part replaces 11241-29000.

11241-29001

Unavailable

17

BOLT,STUD This part replaces 01421-08758.

01421-0875A

$4.77

18

RUBBER PAD CYLI This part replaces 11251-28000.

11251-28001

$5.24

19

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$3.18

20

WASHER This part replaces 08322-11088.

08322-01087

$2.13

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

.LOCK WASHER This part replaces 08321-11088.

08321-01087

$2.13

23

GASKET,CARBURET This part replaces 13125-11000.

13125-11000-H17

$2.52

24

INSULATOR, CARBURETOR

13129-11000

Unavailable

25

HOSE | 3x5x140 This part replaces 09344-03014.

09351-30001-600

$3.57
