Partiron

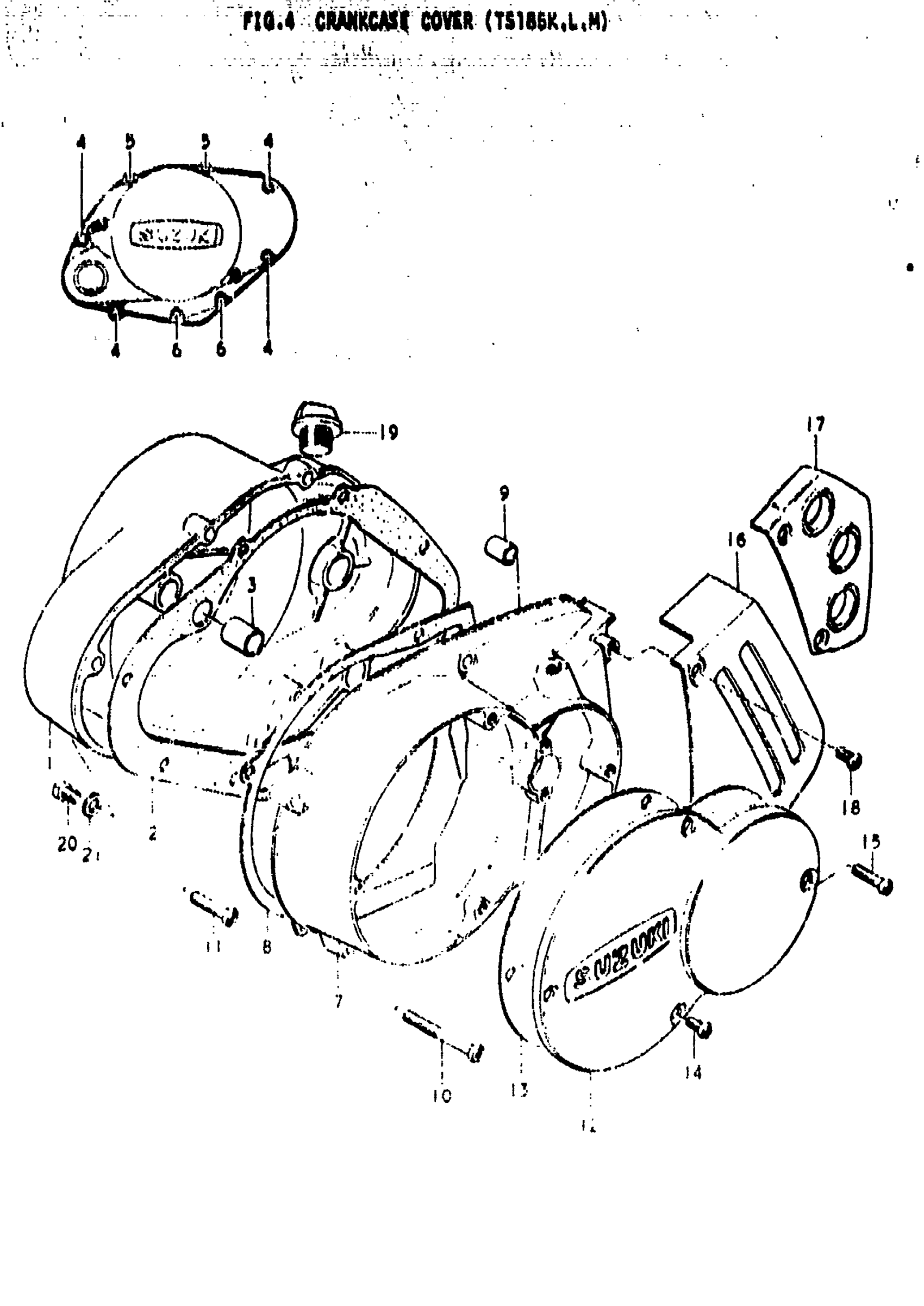

Suzuki TS185 (1976) CRANKCASE COVER (TS185K Diagram

#

Description
Price

1

COVER, CLUTCH | K; WITHOUT LUSTER

11341-29001

Unavailable

1

COVER, CLUTCH | L; LUSTROUS TO 11341-29003 USED WITH 09259-19002 This part replaces 11341-29002.

11341-29003

Unavailable

1

COVER, CLUTCH | M

11341-29003

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-29000.

11482-29001

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW

02112-06557

$2.53

5

SCREW This part replaces 02112-06258.

02112-06257

$1.78

6

SCREW This part replaces 02112-06168.

02112-06167

$1.49

7

COVER, MAGNETO | K; WITHOUT LUSTER This part replaces 11351-29001.

11351-29002

Unavailable

7

COVER, MAGNETO | L,M; LUSTROUS

11351-29002

Unavailable

8

GASKET

11483-29000

Unavailable

9

PIN

04211-09129

$1.65

10

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

11

SCREW This part replaces 02112-06258.

02112-06257

$1.78

12

CAP, MAGNETO INSPECTION | FROM 11381-29001

11381-29002

Unavailable

13

GASKET

11491-29000

Unavailable

14

SCREW | K This part replaces 02112-05168.

02112-05167

$1.97

15

SCREW | K This part replaces 02111-05207.

02112-05207

$1.97

16

COVER, ENGINE SPROCKET | K; WITHOUT LUSTER This part replaces 11361-29000.

11361-29001

Unavailable

16

COVER, ENGINE SPROCKET | K; LUSTROUS

11361-29001

Unavailable

17

COVER, ENGINE SPROCKET | L,M

11361-29200

Unavailable

18

SCREW This part replaces 02111-05108.

02112-05107

$1.49

19

PLUG SET | K,L; THREAD TYPE This part replaces 09259-20003.

09200-20811

$4.02

19

PLUG | M; CAP TYPE This part replaces 09259-19001.

09259-19005

$2.98

20

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

21

GASKET | 6.2x11x1

09168-06001

$1.49
