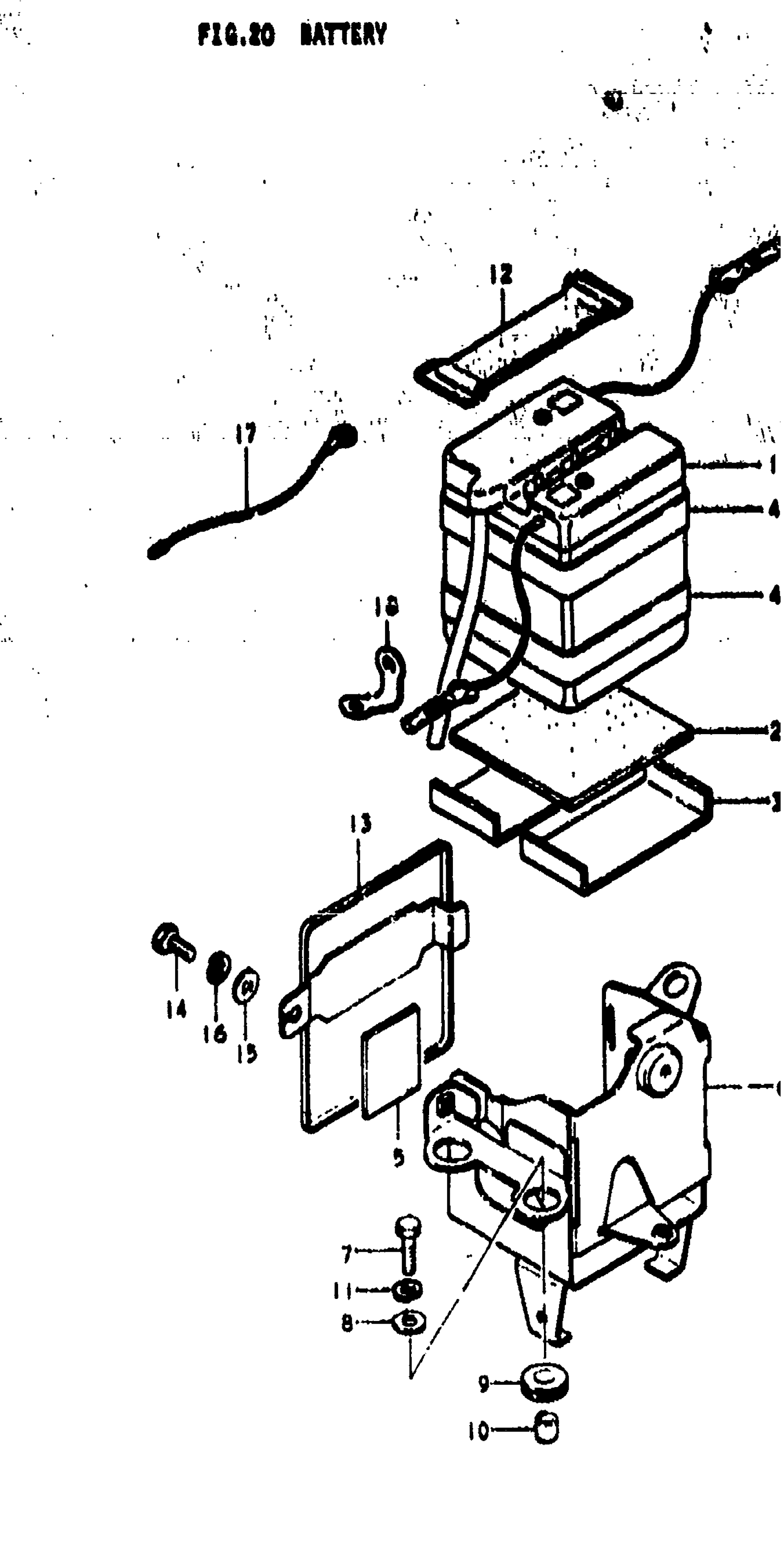

Suzuki TS185 (1976) BATTERY Diagram

#

Description
Price

1

BATTERY | 6V, 4AH

33610-03010

Unavailable

2

CUSHION, BATTERY | K,L,M

33651-25000

Unavailable

3

CUSHION, BATTERY | A

33651-04000

Unavailable

4

PROTECTOR, BATTERY | L,M

33651-30000

Unavailable

5

PROTECTOR, BATTERY | A

33652-36200

Unavailable

6

HOLDER, BATTERY | K,L,M; TO 41840-29700

41540-29002

Unavailable

6

HOLDER, BATTERY | A

41540-29003

Unavailable

7

BOLT, CANISTER | K,L,MA This part replaces 01112-06168.

01500-06167

$1.97

8

WASHER (6.5X20X1.2) | K,L,M; 6.5x20x1.2A; 6.3x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

9

CUSHION (8.5X20X8) | K,L,MA This part replaces 09320-08007.

09320-08510

$1.97

10

SPACER (6.5X9X7) | K,L,M; 7x9x7A; 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

11

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

12

BAND | K,L,M

09462-00001

$4.56

13

COVER, BATTERY HOLDER | A

41560-29000

Unavailable

14

SCREW (6X10) | A This part replaces 09128-06004.

09128-06044

$1.49

15

WASHER | A This part replaces 08322-21068.

08322-01067

$2.13

16

LOCK WASHER | A This part replaces 08321-21068.

08321-01067

$2.13

17

LEAD WIRE, BATTERY (-) | M,A

36862-27690

$5.20

18

CLAMP | K

09404-07702

Unavailable

18

CLAMP | L,M,A

09404-07704

Unavailable
