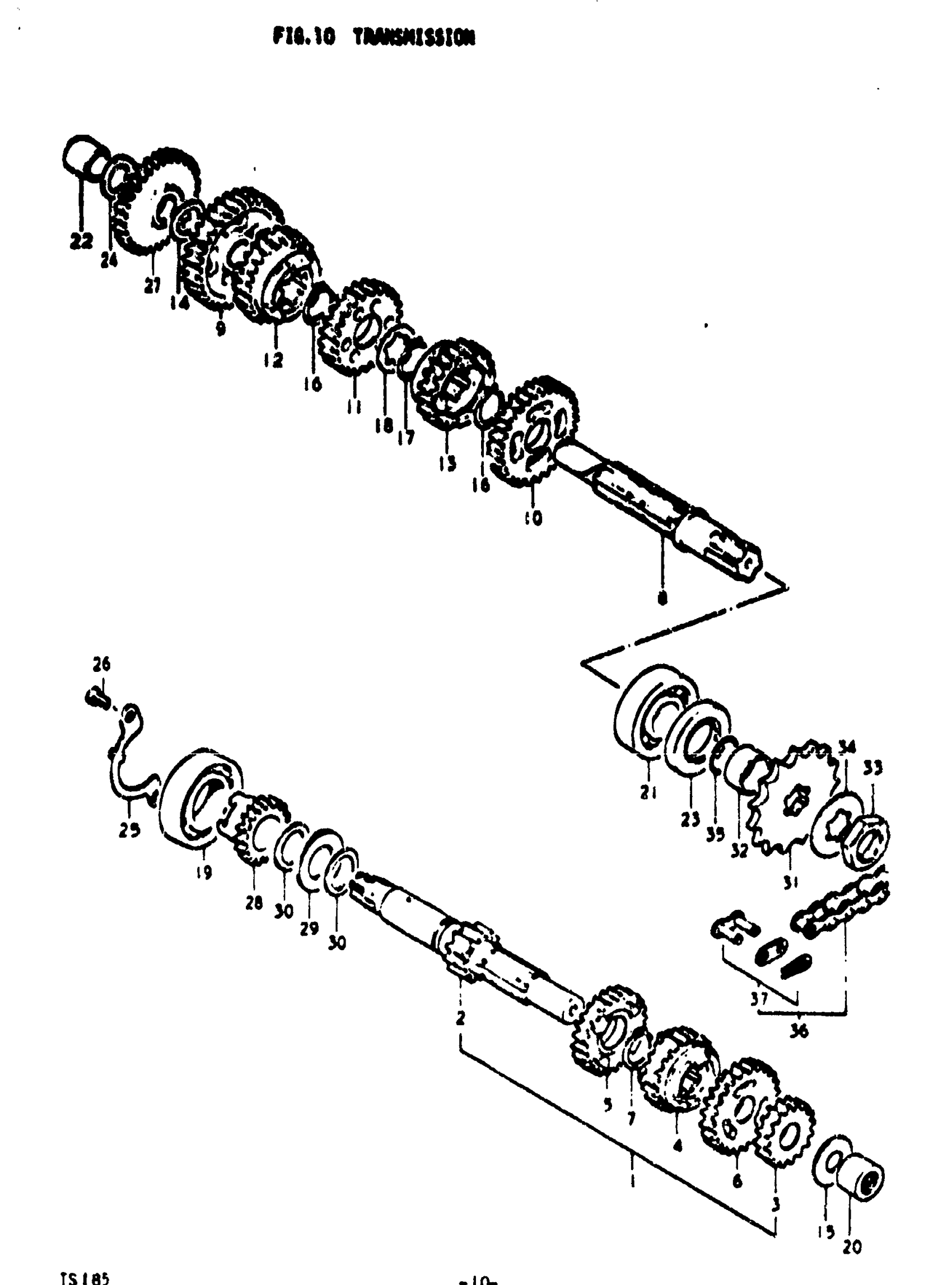

Suzuki TS185 (1972) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | R; TO 24120-29004 WITH 09263-19068AND 26281-36100 This part replaces 24120-29003.

24120-36102

Unavailable

1

NO DESCRIPTION AVAILABLE | J; Includes Item(s) 2 - 7 This part replaces 24120-29004.

24120-36102

Unavailable

2

COUNTERSHAFT | R; NT:12 TO 24121-29002 WITH 09263-19006 AND 26281-36100

24121-29001

Unavailable

2

COUNTERSHAFT. | J; NT:12

24121-29002

Unavailable

3

GEAR, 2ND DRIVE | NT:16

24221-28001

Unavailable

4

GEAR, 3RD DRIVE | R; NT:20 ~F.NO.18379 TO 24231-28002WITH 24251-28002

24231-28001

Unavailable

4

GEAR, 3RD DRIVE | NT:20

24231-28002

Unavailable

5

NO DESCRIPTION AVAILABLE | NT:23 This part replaces 24241-28000.

24241-28001

Unavailable

6

GEAR, 5TH DRIVE | R; NT:25 ~F,NO.18379 TO 24251-78002WITH 24251-28002

24251-28001

Unavailable

6

GEAR, 5TH DRIVE | R; NT:25 TO 24251-28003 This part replaces 24251-28002.

24251-28003

Unavailable

6

GEAR, 5TH DRIVE | J; NT:25

24251-28003

Unavailable

7

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

8

DRIVESHAFT

24131-28001

Unavailable

9

GEAR, 1ST DRIVEN | NT:33

24310-28000

Unavailable

10

GEAR, 2ND DRIVEN | NT:29 This part replaces 24321-28000.

24321-28001

$85.15

11

GEAR, 3RD DRIVEN | NT:25 ~F,NO.18073 TO 24331-28001 WITH 24341-28002

24331-28000

Unavailable

11

NO DESCRIPTION AVAILABLE | NT:25 This part replaces 24331-28001.

24331-28002

Unavailable

12

GEAR, 4TH DRIVEN | NT:23 ~F,NO.18073 TO 24341-28002 WITH 24331-28001

24341-28001

Unavailable

12

NO DESCRIPTION AVAILABLE | NT:23 This part replaces 24341-28002.

24341-28003

Unavailable

13

GEAR, 5TH DRIVEN | R; NT:20 ~F.NO. 11327 TO 24351-28001 WITH 25221-28001

24351-28000

Unavailable

13

NO DESCRIPTION AVAILABLE | NT:20 This part replaces 24351-28001.

24351-28002

Unavailable

14

SHIM, CAM CHAIN IDLER,T:1.0 | 15x24x1 This part replaces 08211-15241.

09181-15166

$2.85

15

WASHER | 15x30x1 This part replaces 09160-15016.

08211-15301

$2.45

16

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

17

CIRCLIP

09380-20006

$2.90

18

LOCK WASHER, LH | 16.2x28x1 This part replaces 09167-20007.

09167-20022

Unavailable

19

BALL BEARING This part replaces 08110-60060.

08113-60060

$24.18

20

BEARING

09263-15009

$13.17

21

BEARING

08163-62050

$27.58

22

BUSHING, DRIVESHAFT

09319-15003

Unavailable

23

SEAL,OIL,25X44X | 25x44x7 This part replaces 09283-25009.

09283-25107

$6.02

24

WASHER | 15x30x1 This part replaces 09160-15016.

08211-15301

$2.45

25

HOLDER, COUNTERSHEFT BEARING

24741-28001

Unavailable

26

SCREW This part replaces 02112-06106.

02112-0610B

$1.84

27

NO DESCRIPTION AVAILABLE | NT:29 This part replaces 26260-28002.

26260-28003

Unavailable

28

GEAR,KICK START | NT:18 This part replaces 26260-23000.

26260-23010

Unavailable

29

BEARING | R; 21x35x2.8 This part replaces 09263-21004.

09263-21006

$15.48

29

BEARING | J; 21x32x2.8 FROM 09263-21004

09263-21006

$15.48

30

WASHER | 21x30x0.8

09160-21007

$2.92

31

SPROCKET,ENGINE | NT:12 This part replaces 27511-29000.

27511-29002

$29.88

32

SPAGER | 20x25x12.5

09180-20039

$7.31

33

NUT

09140-20001

$3.37

34

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

35

O RING

09280-20001

$1.65

36

CHAIN ASSY, DRIVE | R; 520x961 (USEFUL SIZE) TO 27600-36600

27600-29012

Unavailable

36

CHAIN,DRIVE ASS | J; 520x961 (USEFUL SIZE); Includes Item(s) 37 This part replaces 27600-36600.

27600-46K00-116

$167.95

37

JOINT | R This part replaces 27620-29013.

27620-29311

Unavailable
