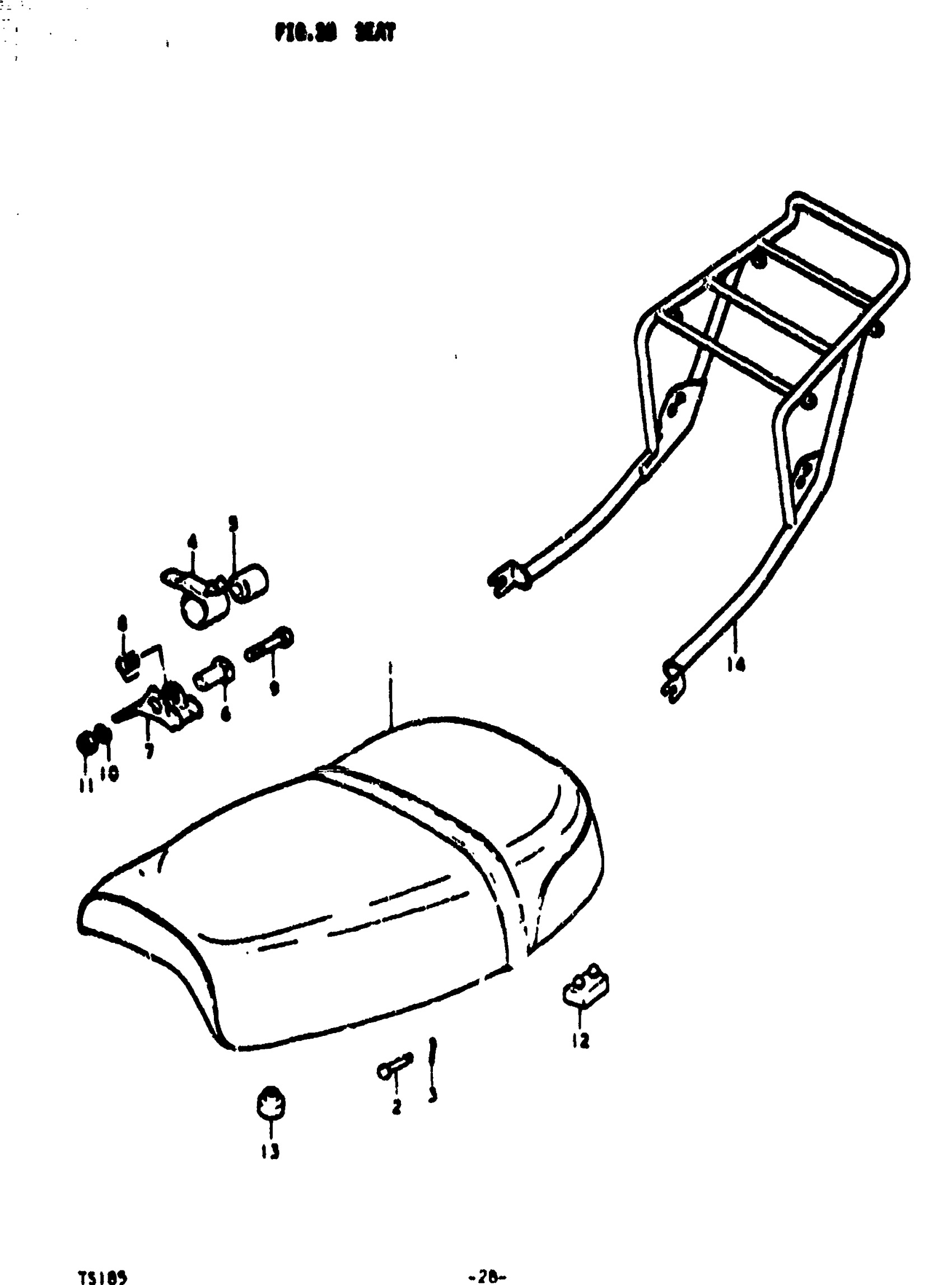

Suzuki TS185 (1972) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | R; TO 45100-28430-403 WITH 46310-26400 This part replaces 45100-28000-403.

45100-28831-865

Unavailable

1

NO DESCRIPTION AVAILABLE | J This part replaces 45100-28830-403.

45100-28831-865

Unavailable

2

PIN

09200-06018

$2.06

3

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

4

CLAMP, SEAT | R; TO 45211-26001 WITH 45210-26001AND 09446-17007; Includes Item(s) 5 This part replaces 45210-26000.

45211-26001

Unavailable

5

BUSHING, SEAT CLAMP | R

09319-08007

Unavailable

6

BOSS, SEAT CLAMP | J

45210-26001

Unavailable

7

CLAMP, SEAT | J

45211-26001

Unavailable

8

SPRING, SEAT CLAMP | J

09448-17007

Unavailable

9

BOLT This part replaces 01122-08458.

01500-08453

$2.50

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

NUT

08312-11068

Unavailable

12

CUSHION, SEAT

09321-08006

$2.90

13

CUSHION, SEAT

09321-10002

$2.22

14

CARRIER, SPORTS | R; TO 46310-28400 OPT

46310-28001

Unavailable

14

CARRIER, SPORTS | J; OPT

46310-28400

Unavailable
