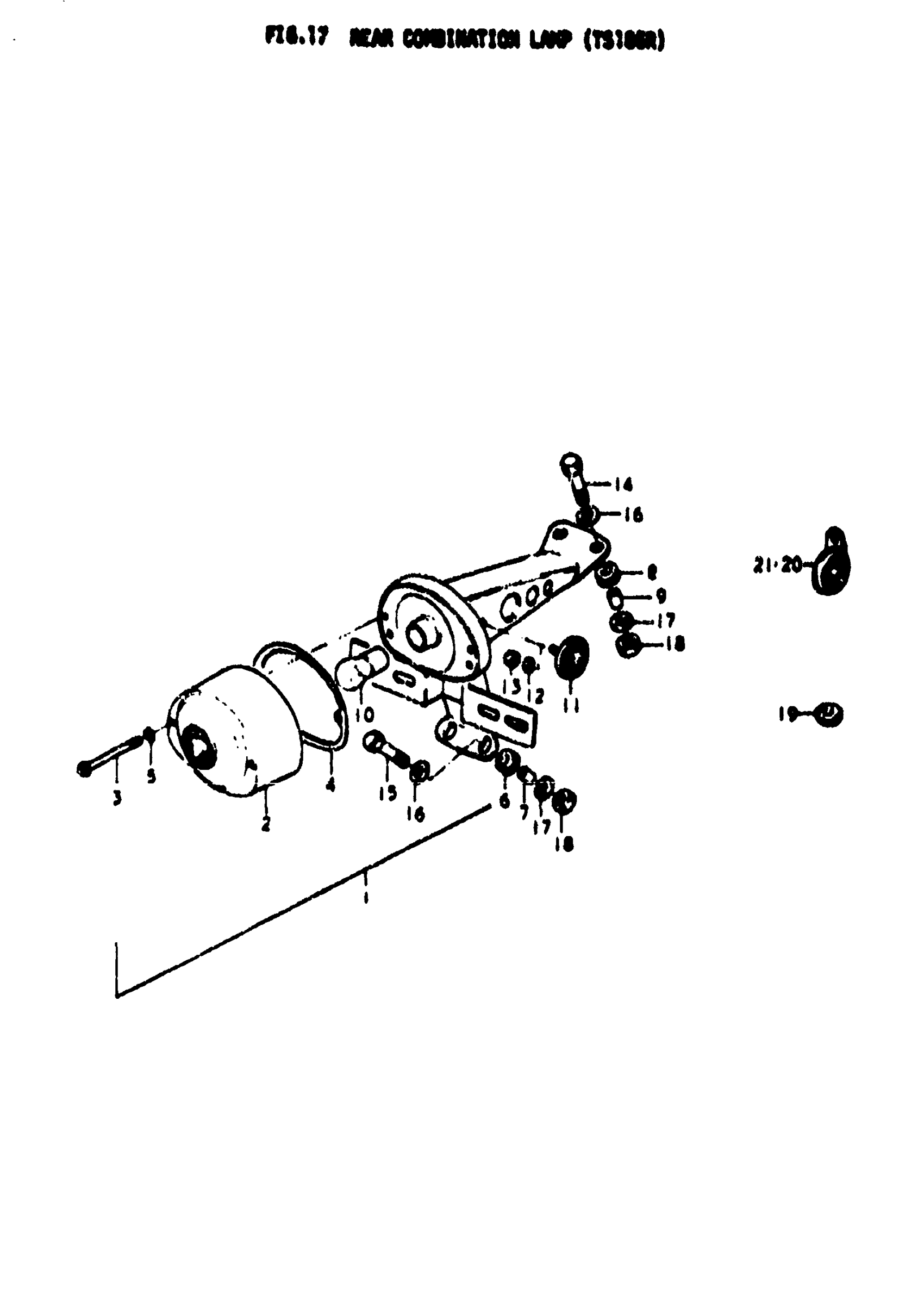

Suzuki TS185 (1972) REAR COMBINATION LAMP (TS185R) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 10

35710-29611

Unavailable

2

LENS, RR COMB L This part replaces 35712-22610.

35712-06112

$35.16

3

SCREW

02113-04558

Unavailable

4

GASKET

35713-15010

Unavailable

5

WASHER

35727-03010

Unavailable

6

CUSHION, LOWER

35765-15010

Unavailable

7

SPACER This part replaces 35766-15010.

35766-37110

$5.28

8

CUSHION, UPPER

35765-22210

$3.84

9

SPACER

33766-22210

Unavailable

10

BULB | 6V, 21/3CP, US#1154

09471-06009

$3.99

11

REFREX REFLECTOR

35970-22611

Unavailable

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

NUT This part replaces 08311-11058.

08310-00057

$1.84

14

BOLT This part replaces 01112-06258.

01500-06257

$1.97

15

BOLT This part replaces 01112-06208.

01500-06207

$2.28

16

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

.NUT This part replaces 08311-11068.

08310-00067

$2.13

19

CROMMET

09308-07005

Unavailable

20

REFLEX REFLECTOR, FRONT RH

35950-28610

Unavailable

21

REFLEX REFLECTOR, FRONT LH

35960-28610

Unavailable
