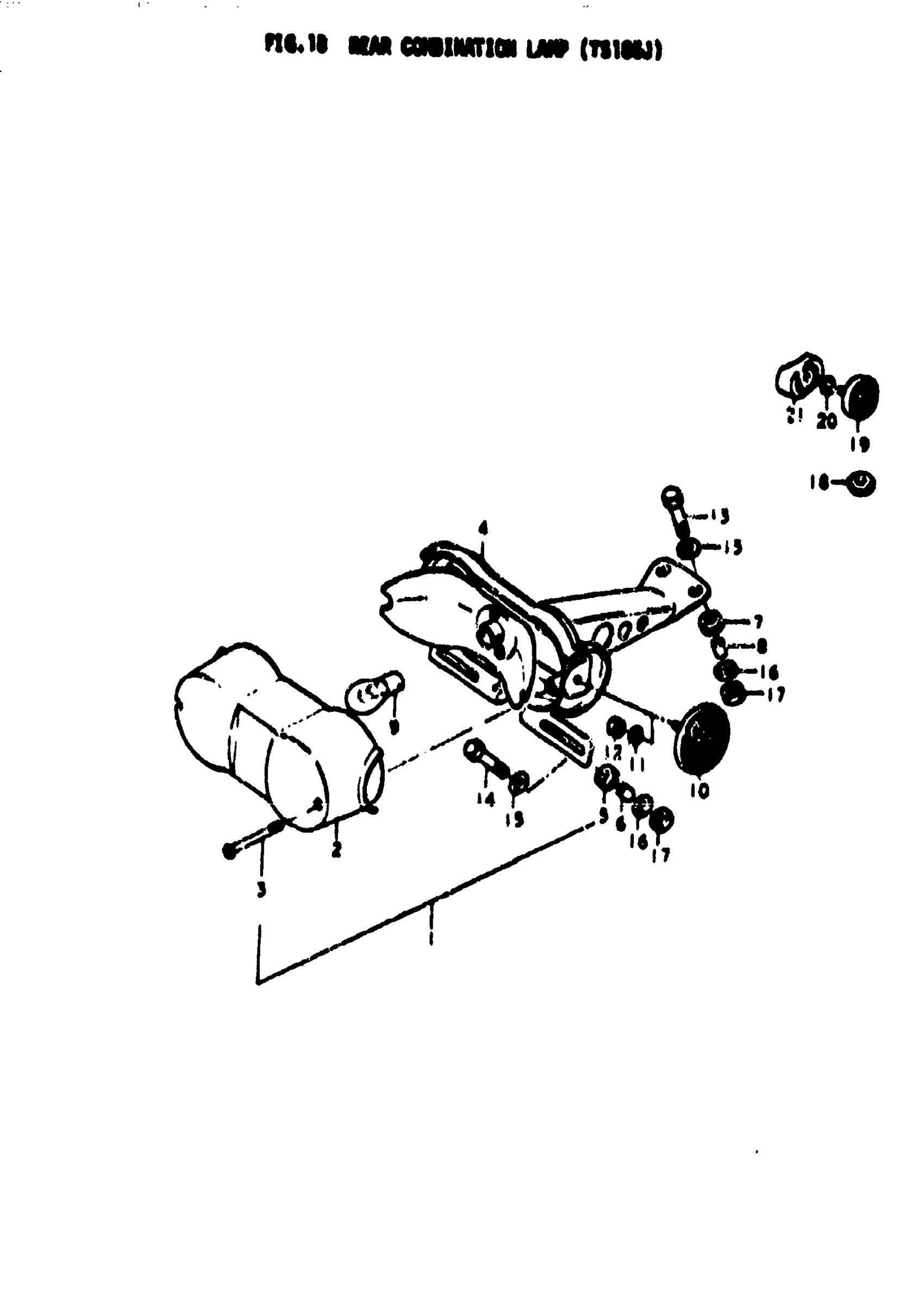

Suzuki TS185 (1972) REAR COMBINATION LAMP (TS185J) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 9 This part replaces 35710-29690.

35710-25671-999

Unavailable

2

TAIL LAMP LENS This part replaces 35712-27690.

35712-27671

Unavailable

3

SCREW This part replaces 02111-04508.

02112-0450A

$1.51

4

HOUSING, REAR COMBINATION

35715-29690

Unavailable

5

CUSHION, LOWER

35765-15010

Unavailable

6

SPACER This part replaces 35766-15010.

35766-37110

$5.28

7

CUSHION, UPPER

35765-22210

$3.84

8

SPACER This part replaces 35766-22210.

35766-37120

Unavailable

9

BLUB | 6V,21/3CP, US#1154

09471-06009

$3.99

10

REFLEX REFLECTOR

35970-31610

Unavailable

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

NUT This part replaces 08311-11058.

08310-00057

$1.84

13

BOLT This part replaces 01112-06258.

01500-06257

$1.97

14

BOLT This part replaces 01112-06208.

01500-06207

$2.28

15

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

.NUT This part replaces 08311-11068.

08310-00067

$2.13

18

CROMMET

09308-07005

Unavailable

19

REFLEX REFLECTOR FRONT This part replaces 35950-31010.

35950-49080

$17.24

20

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

21

SPACER

35995-29000

Unavailable
