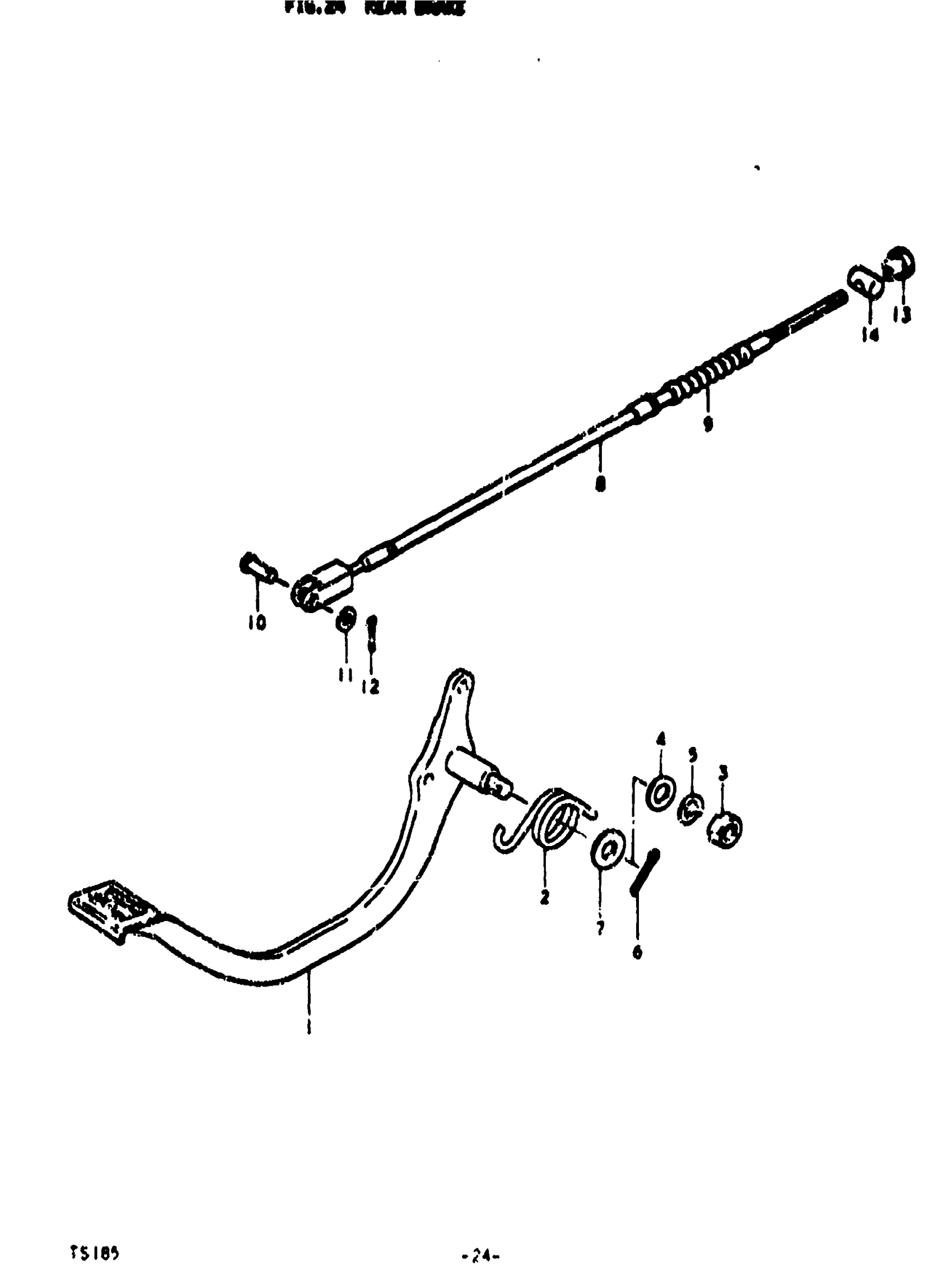

Suzuki TS185 (1972) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-29000

Unavailable

2

SPRING This part replaces 09448-32004.

09448-32004-XC0

Unavailable

3

NUT | R This part replaces 08312-11108.

08310-00107

$2.19

4

WASHER | R; 10.3x25x1.5 FROM 09160-10031

09160-10041

Unavailable

5

LOCK WASHER | R This part replaces 08321-21108.

08321-01107

$1.84

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

WASHER | 15.2x26x2.3

09160-15002

$1.91

8

CABLE, REAR BRAKE | Includes Item(s) 9

58510-29000

Unavailable

9

DUST SEAL

09287-05001

Unavailable

10

PIN

09200-05001

$1.65

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

13

.NUT This part replaces 09150-06001.

09150-06010

$3.10

14

PIN

09209-11002

$2.19
