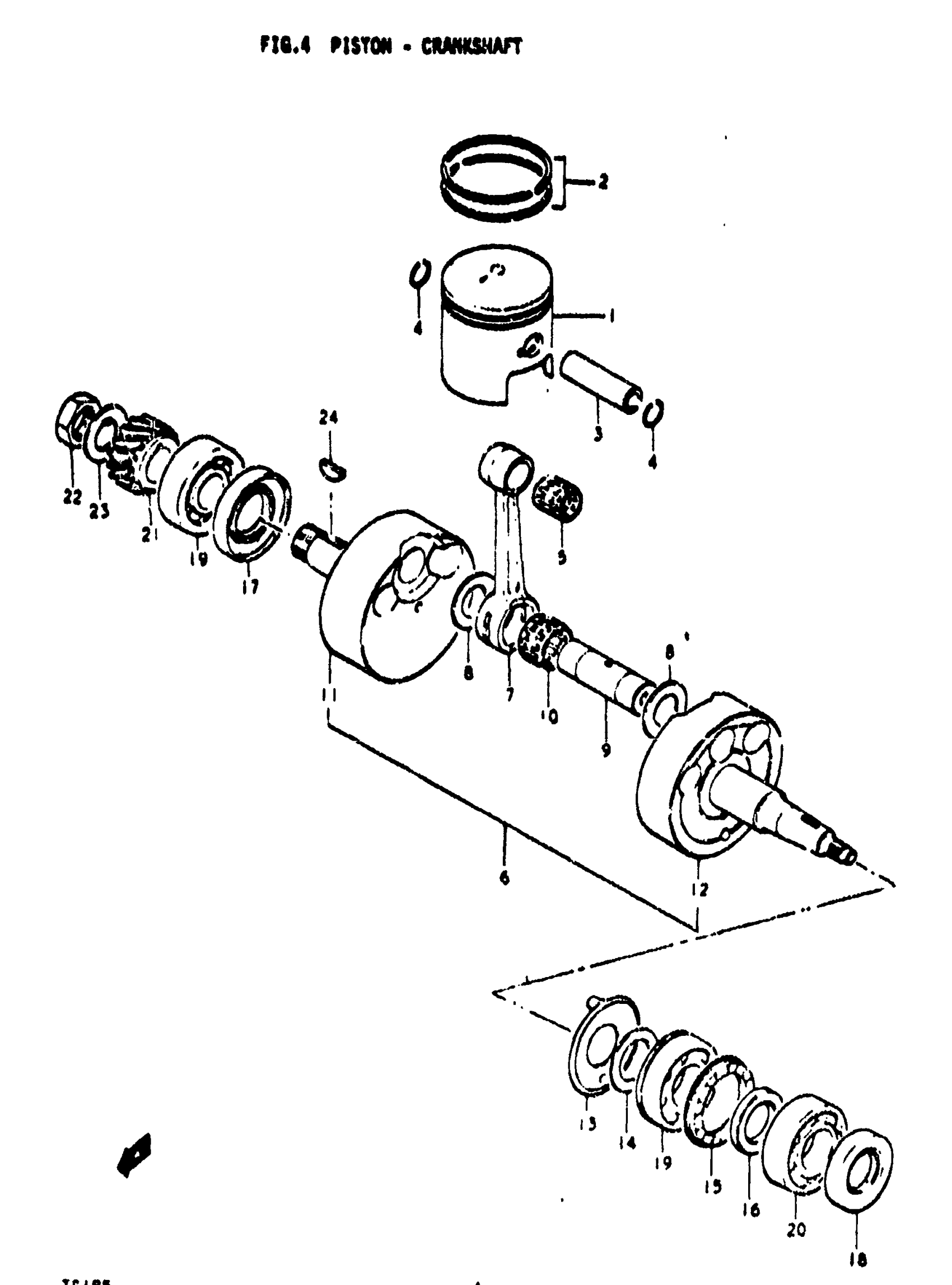

Suzuki TS185 (1972) PISTON - CRANKSHAFT Diagram

#

Description
Price

1

PISTON | TO 72110-29001 This part replaces 12110-29000.

12110-29001

Unavailable

1

PISTON | J

12110-29001

Unavailable

1

PISTON SET | R; 05:0.5 TO 12110-29711 This part replaces 12110-29710.

12103-29830-050

Unavailable

1

PISTON SET | J; 05:0.5 This part replaces 12110-29711.

12103-29830-050

Unavailable

1

NO DESCRIPTION AVAILABLE | R; 05;1.0 This part replaces 12110-29720.

12110-29001-100

Unavailable

1

NO DESCRIPTION AVAILABLE | J; 05:1.0 This part replaces 12110-29721.

12110-29001-100

Unavailable

2

RING SET, PISTON

12140-29010

$35.74

2

RING SET, PLSTON | 05:0.5 This part replaces 12140-29710.

12140-29010-050

$44.73

2

RING SET, PISTON | R; 05:1.0

12140-29720

Unavailable

2

RING SET, PLSTON | J; 05:1.0 FROM 12140-29720 This part replaces 12140-29760.

12140-97311

Unavailable

3

PIN, PISTON This part replaces 12151-29000.

12151-29001

$13.92

4

CIRCLIP

09381-16001

$1.67

5

RN 16X21X19.6BR This part replaces 09263-16004.

09263-16015

$15.54

6

CRANKSHAFT SET | FROM 12001-29903; Includes Item(s) 7 - 10

12200-29810

Unavailable

7

CONECTING ROD | FROM 12161-29000 This part replaces 12161-93000.

12161-41500

$132.03

8

WASHER

09160-22010

$5.57

9

PIN, CRANK

12211-29001

$38.85

10

RN 22X28X16 BRG This part replaces 09263-22006.

09263-22032

$23.45

11

CRANKSHAFT, RH | Includes Item(s) 12

12221-29002

Unavailable

12

CRANKSHAFT, LH

12261-29001

Unavailable

13

PLATE, OIL GUIDE

12511-29001

Unavailable

14

SHIM | 25x34x0.5

08221-25345

Unavailable

15

SPACER, CRANKSHAFT

12353-29001

Unavailable

16

SPACER | 25x38x6

09180-25035

Unavailable

17

OIL SEAL

09283-26007

$7.37

18

OIL SEAL, LH This part replaces 09283-25037.

09283-25066

$7.50

19

BEARING

08163-62050

$27.58

20

BEARING, LH This part replaces 08113-62050.

09262-25003

$24.83

21

GEAR, PRIMARY DRIVE | NT:19

21111-29000

Unavailable

22

NUT

09140-18002

$3.87

23

WASHER | 18x32x0.8

09166-18001

$2.71

24

KEY

08341-31059

$2.48
