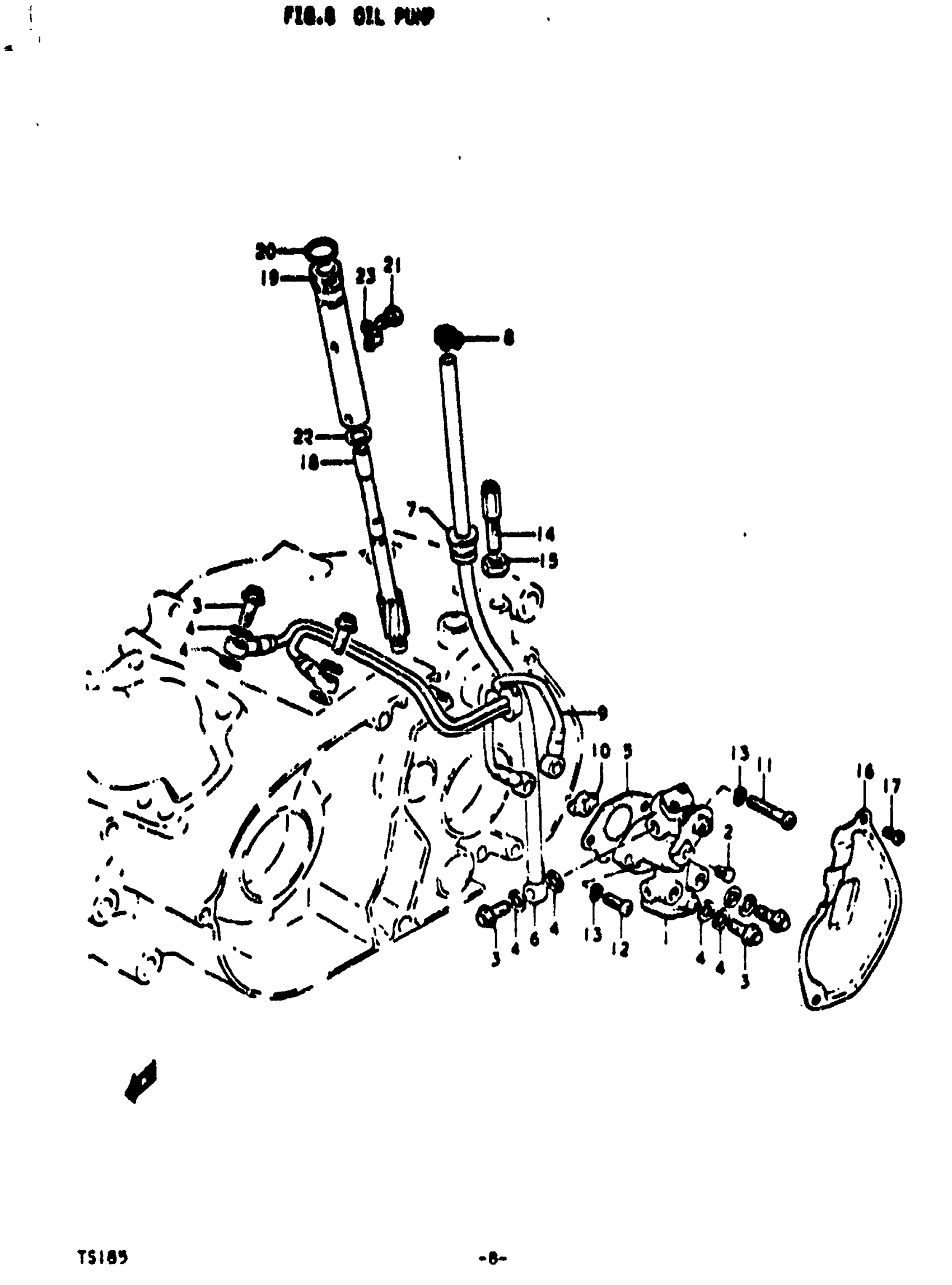

Suzuki TS185 (1972) OIL PUMP Diagram

#

Description
Price

1

PUMP SET, OIL | R; TO 16100-29012

16100-29811

Unavailable

1

PUMP ASSY, OIL | J

16100-29012

Unavailable

2

TERMINAL, CABLE | FROM 16292-03110 This part replaces 16292-03111.

16292-03112

$5.05

3

UNION BOLT | 6x16

09360-06003

$3.76

4

GASKET | 6x11.8x1.5 This part replaces 09168-06002.

09168-06004

$1.49

5

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.81

6

HOSE, OIL (L:512!97) This part replaces 16810-05031.

16810-07520

Unavailable

7

GROMMET, INLET HOSE

09305-09002

Unavailable

8

OIL HOSE CLAMP This part replaces 09400-10301.

09400-10302

Unavailable

9

HOSE, OIL OUTLET

16820-29030

Unavailable

10

PIECE, DRIVE This part replaces 16391-05030.

16391-05031

$3.65

11

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

12

SCREW This part replaces 02112-05168.

02112-05167

$1.97

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

ADJUSTER, CABLE

09119-08014

$3.55

15

NUT This part replaces 08312-11088.

08310-00087

$2.13

16

CAP, OIL PUMP INSPECTION

11380-27300

$8.12

17

SCREW This part replaces 02112-06108.

02112-06107

$1.49

18

GEAR, TACHOMETER DRIVEN | NT:11

26431-29000

$54.75

19

SLEEVE,TACHOMET This part replaces 26441-28001.

26441-28002

$24.20

20

O RING

09280-10001

$2.02

21

BOLT

09135-06009

$2.23

22

.WASHER (6.5X16X1) | 8x15.7x1 This part replaces 09160-06003.

09160-06129

$2.30

23

CLAMP | R

09404-07704

Unavailable
